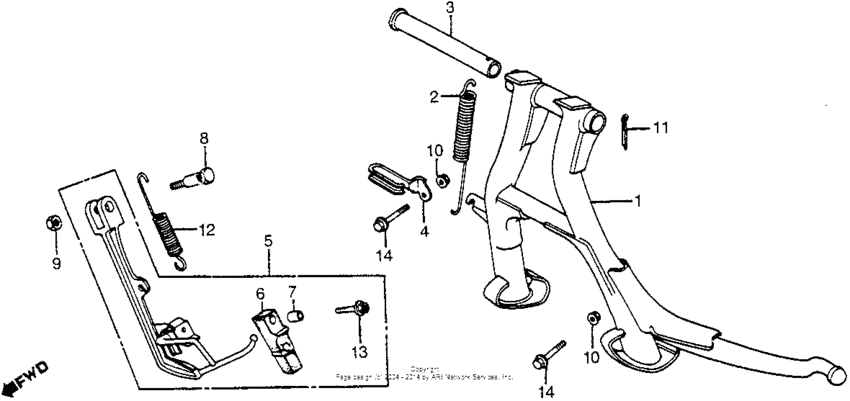

Stand Diagram Honda CBX A
- Year
- 1982
- Model code
- CBX A
- Sales region
- USA
- Frame
- JH2SC060*CC400001 -
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50500-MA2-000
Stand comp.,main
|
50500-MA2-000 |
— | ||
|
2
|
2
50510-MA2-000
Spg.main stand
|
50510-MA2-000 |
— | ||
|
3
|
3
50526-MA2-000
Pipe,main stand
|
50526-MA2-000 |
— | ||
|
4
|
4
50527-MA2-000
Guide,drin pipe
|
50527-MA2-000 |
— | ||
|
5
|
5
50540-MA2-000
Stand assy.,side
|
50540-MA2-000 |
— | ||
|
6
|
6
50548-356-700 Rubber, stand |
50548-356-700 |
from US $7.15 |
||
|
7
|
7
50549-356-700 Collar |
50549-356-700 |
from US $2.96 |
||
|
8
|
8
90108-422-000
Bolt,stand pivot
|
90108-422-000 |
— | ||
|
9
|
9
94002-120-800-S NutHEX., 12MM |
94002-120-800-S |
from US $0.59 |
||
|
10
|
10
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
11
|
11
94201-25300 Pin, split, 2.5x30 |
94201-25300 |
from US $0.44 |
||
|
12
|
12
9501472402 Spring d, side stand |
9501472402 |
from US $1.63 |
||
|
13
|
13
95700-060-280-0 BoltFLANGE, 6X28 |
95700-060-280-0 |
from US $0.59 |
||
| replacement | |||||
|
13
|
13
95701-0602800 Bolt, flange, 6x28 |
95701-0602800 |
from US $0.59 |
||
|
13
|
13
95701-0602800 Bolt, flange, 6x28 |
95701-0602800 |
from US $0.59 |
||
|
14
|
14
95701-060-400-8 BoltFLANGE, 6X40 |
95701-060-400-8 |
from US $0.59 |
||
