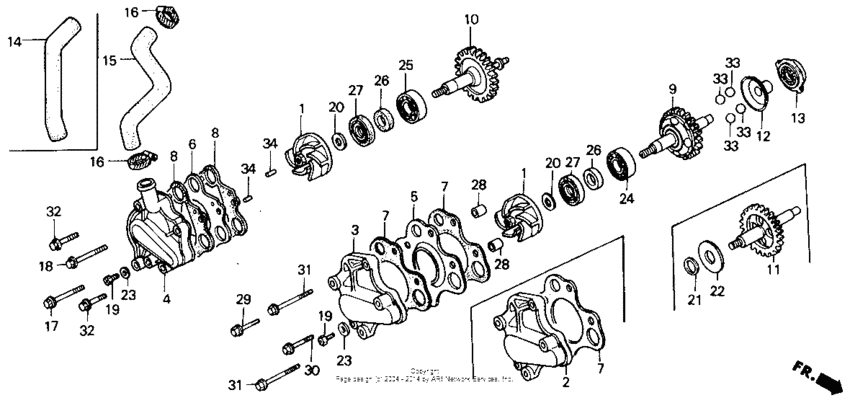

Water pump Diagram Honda CR125
- Year
- 1986
- Model code
- CR125R A
- Sales region
- USA
- Frame
- JH2JE010*GC700018 - JH2JE010*GC708780
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19215-KA3-740 Impeller, water pump |
19215-KA3-740 |
from US $46.51 |
||
|
3
|
3
19221-KA3-760
Cover,water pump
|
19221-KA3-760 |
— | ||
|
5
|
5
19222-KA3-760
Separater,w/pump
|
19222-KA3-760 |
— | ||
|
7
|
7
19229-KA3-307
Gasket
|
19229-KA3-307 |
— | ||
|
9
|
9
19240-KS6-000
Shaft comp.,water
|
19240-KS6-000 |
— | ||
|
12
|
12
19251-KS6-000
Plate,governor
|
19251-KS6-000 |
— | ||
|
13
|
13
19260-KA3-740
Relese comp
|
19260-KA3-740 |
— | ||
|
19
|
19
90037-360-000 Bolt, oil check |
90037-360-000 |
from US $2.74 |
||
|
20
|
20
90447-KE1-000 Washer (7mm) |
90447-KE1-000 |
from US $2.15 |
||
|
23
|
23
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.37 |
||
|
24
|
24
91001-KA4-003 Bearing (12x28x7) |
91001-KA4-003 |
from US $10.21 |
||
|
26
|
26
91201-965-000 Oil seal (12x22x5) |
91201-965-000 |
from US $2.90 |
||
|
27
|
27
91211-KA3-761 Seal, water pump |
91211-KA3-761 |
from US $3.47 |
||
|
28
|
28
94301-08100 Dowel pin8X10 |
94301-08100 |
from US $0.89 |
||
|
29
|
29
96001-0603507 Bolt, flange (6x35) |
96001-0603507 |
from US $0.74 |
||
|
30
|
30
96001-0604007 Bolt, flange (6x40) |
96001-0604007 |
from US $0.74 |
||
|
31
|
31
96001-0607507 Bolt, flange (6x75) |
96001-0607507 |
from US $0.81 |
||
|
33
|
33
96211-13000 BallSTEEL, #13(13/32) |
96211-13000 |
from US $0.22 |
