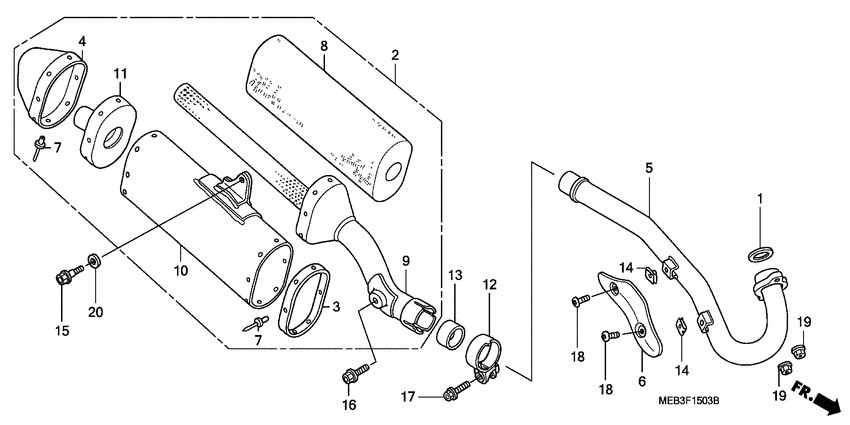

Exhaust muffler (CRF450R3-ED/U) Diagram Honda CRF450 CRF450R
- Year
- 2003
- Model code
- CRF450R3
- Sales region
- Australia
- Frame
- JH2PE05U*3M100001 - JH2PE05U*3M199999
- Engine Capacity
- 450
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18291-MEB-670 Gasket, ex. pipe |
18291-MEB-670 |
from US $5.48 |
||
|
2
|
2
18310-MEB-630
Muffler comp
|
18310-MEB-630 |
— | ||
|
3
|
3
18311-MEB-670 Band, fr. |
18311-MEB-670 |
US $28.51 |
||
|
4
|
4
18312-MEB-640
Cap,end
|
18312-MEB-640 |
— | ||
|
5
|
5
18320-MEB-671
Pipe, ex.
|
18320-MEB-671 |
— | ||
|
6
|
6
18323-MEB-670 Protector, ex. pipe |
18323-MEB-670 |
US $50.39 |
||
|
7
|
7
18324-MEB-670 Rivet, blind (4.8) |
18324-MEB-670 |
from US $1.26 |
||
|
8
|
8
18336-MEB-770
Wool, glass (50)
|
18336-MEB-770 |
— | ||
|
9
|
9
18350-MEB-770 Muffler, fr. |
18350-MEB-770 |
US $449.97 |
||
|
10
|
10
18351-MEB-630
Body comp,muffler
|
18351-MEB-630 |
— | ||
|
11
|
11
18352-MEB-641
Muffler comp,rr
|
18352-MEB-641 |
— | ||
|
12
|
12
18376-MG7-000 Band, l. rr. muffler |
18376-MG7-000 |
from US $14.01 |
||
|
13
|
13
18392-MEB-670 Gasket, muffler |
18392-MEB-670 |
from US $18.26 |
||
|
14
|
14
19508-KA3-710 Nut, spring, 6mm |
19508-KA3-710 |
from US $4.44 |
||
|
15
|
15
90121-KZ4-J40 Bolt, flange (8x25)- 3M101290 |
90121-KZ4-J40 |
US $2.87 |
||
| replacement | |||||
|
15
|
15
90101-KZ3-J50 Bolt, flange (8x24)- 3M101290 |
90101-KZ3-J50 |
from US $2.27 |
||
|
15
|
15
90101-KZ3-J50 Bolt, flange (8x24)3M101291 - |
90101-KZ3-J50 |
from US $2.27 |
||
|
16
|
16
90123-KZ4-J40 Bolt, flange (8x18) |
90123-KZ4-J40 |
from US $2.34 |
||
|
17
|
17
90124-MEB-770 Bolt, flange (8x32) |
90124-MEB-770 |
from US $1.67 |
||
|
18
|
18
90170-MEB-670 Bolt, special (6mm) |
90170-MEB-670 |
from US $2 |
||
|
19
|
19
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
20
|
20
9410308000 Washer, plain, 8mm |
9410308000 |
from US $0.44 |
||
