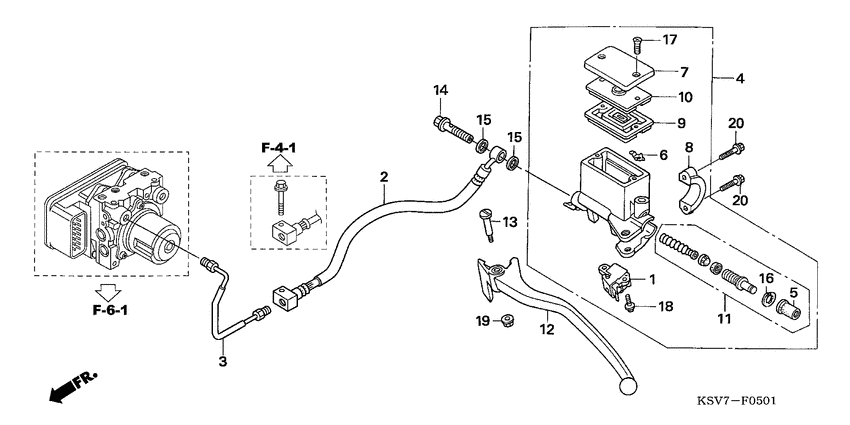

Rr. brake master cylinder (NSS250EX) Diagram Honda NSS250 Forza EX
- Year
- 2007
- Model code
- NSS250EX7
- Sales region
- Europe
- Frame
- JH2MF08B*7K100001 - JH2MF08B*7K999999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35340-KFG-000
Switch, fr. stop
|
35340-KFG-000 |
— | ||
| replacement | |||||
|
1
|
1
35340-KFG-003 SWITCH, FR. STOP |
35340-KFG-003 |
from US $27.61 |
||
|
2
|
2
43311-KSV-J41 Hose comp. aRR. BRAKE |
43311-KSV-J41 |
US $50.14 |
||
|
3
|
3
43312-KSV-J40 Pipe comp. aRR. BRAKE |
43312-KSV-J40 |
US $13.52 |
||
|
4
|
4
43510-KSV-D11 Cylinder sub assy.RR. BRAKE MASTER |
43510-KSV-D11 |
US $208.40 |
||
|
5
|
5
45504-410-003 Boot |
45504-410-003 |
from US $4.90 |
||
|
6
|
6
45512-MA6-006 Protector |
45512-MA6-006 |
from US $3.11 |
||
|
7
|
7
45513-KK1-771
Cap, master cylinder
|
45513-KK1-771 |
— | ||
| replacement | |||||
|
7
|
7
45513-HR0-305 Cap, master cylinder |
45513-HR0-305 |
US $6.89 |
||
|
8
|
8
45517-166-006 Holder |
45517-166-006 |
from US $11.81 |
||
|
9
|
9
45520-MG7-006 Diaphragm |
45520-MG7-006 |
from US $7.70 |
||
|
10
|
10
45521-HA2-006 Plate, diaphragm |
45521-HA2-006 |
from US $7.55 |
||
|
11
|
11
45530-MA4-671 Master cylinder set |
45530-MA4-671 |
from US $36.58 |
||
|
12
|
12
53178-MCT-006 Lever, l. handle |
53178-MCT-006 |
from US $25.43 |
||
| replacement | |||||
|
12
|
12
53178-MGF-305 Lever, l. handlebar |
53178-MGF-305 |
US $21 |
||
|
13
|
13
90114-MA5-671 Bolt, r |
90114-MA5-671 |
from US $4.07 |
||
|
14
|
14
90145-MS9-612 Bolt, oil (10x22) |
90145-MS9-612 |
from US $6.96 |
||
|
15
|
15
90545-300-000 Washer |
90545-300-000 |
from US $3.18 |
||
|
16
|
16
90651-MA5-671 Circlip |
90651-MA5-671 |
from US $2.59 |
||
|
17
|
17
93600-040-121-G
Screw
|
93600-040-121-G |
— | ||
| replacement | |||||
|
17
|
17
93600-040-120-G Screw, flat, 4x12 |
93600-040-120-G |
from US $0.37 |
||
|
18
|
18
93893-040-121-7
Screw-washer
|
93893-040-121-7 |
— | ||
| replacement | |||||
|
18
|
18
93893-040-120-7 Screw-washer4X12 |
93893-040-120-7 |
from US $0.52 |
||
|
19
|
19
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
20
|
20
96001-0602207 Bolt, flange (6x22) |
96001-0602207 |
from US $0.81 |
||
