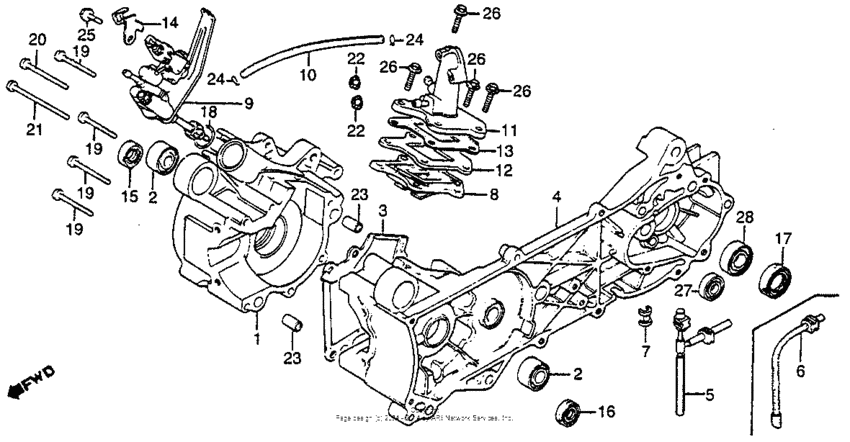

Crankcase + oil pump Diagram Honda NX50
- Year
- 1982
- Model code
- NX50M A
- Sales region
- USA
- Frame
- JH2AB040*CS100002 -
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11101-197-710
Crankcase, r.
|
11101-197-710 |
— | ||
|
2
|
2
11102-187-003 Bush, engine hanger rubber |
11102-187-003 |
from US $7.93 |
||
|
3
|
3
11191-187-306
Gasket, crankcase
|
11191-187-306 |
— | ||
|
4
|
4
11201-187-000
Crankcase, l.
|
11201-187-000 |
— | ||
|
5
|
5
11210-187-000
Tube assy., breather
|
11210-187-000 |
— | ||
|
7
|
7
11213-187-000
Seal, breather tube
|
11213-187-000 |
— | ||
|
8
|
8
14100-155-004
Valve comp.,reed
|
14100-155-004 |
— | ||
|
9
|
9
15100-187-053
Superceded
|
15100-187-053 |
— | ||
| replacement | |||||
|
9
|
9
15100-187-063
Pump assy., oil
|
15100-187-063 |
— | ||
|
9
|
9
15100-187-063
Pump assy., oil
|
15100-187-063 |
— | ||
|
10
|
10
15525-187-000
Tube, oil passage
|
15525-187-000 |
— | ||
|
11
|
11
17100-187-010
Pipe, inlet
|
17100-187-010 |
— | ||
|
12
|
12
17110-187-405
Insulator
|
17110-187-405 |
— | ||
|
13
|
13
17111-187-306
Gasket, insulator
|
17111-187-306 |
— | ||
|
14
|
14
32112-187-000
Clamp, wire
|
32112-187-000 |
— | ||
|
15
|
15
91201-GW2-000 Oil seal,15x25.5x |
91201-GW2-000 |
from US $4.97 |
||
|
16
|
16
91202-KBN-922 Oil seal,20x31x7 |
91202-KBN-922 |
from US $7.77 |
||
|
17
|
17
91254-GE8-005 Oil seal (24x40x7) |
91254-GE8-005 |
from US $5.92 |
||
|
18
|
18
91301-147-023 O-ring (18.3x2.3) |
91301-147-023 |
from US $3.16 |
||
|
19
|
19
93500-060450A Screw, pan, 6x45 |
93500-060450A |
from US $0.59 |
||
|
20
|
20
93500-060-600-A Screw,pan,6x60 |
93500-060-600-A |
from US $0.59 |
||
|
21
|
21
93500-060-800-A Screw pan 6x80 |
93500-060-800-A |
from US $0.74 |
||
|
22
|
22
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
23
|
23
94301-10200 Dowel pin10X20 |
94301-10200 |
from US $1.04 |
||
|
24
|
24
9500202650 Clip, tube (b6.5) |
9500202650 |
from US $0.44 |
||
|
25
|
25
96001-060-140-0 BoltFLANGE, 6X14 |
96001-060-140-0 |
from US $0.59 |
||
|
26
|
26
96001-060-280-0 BoltFLANGE, 6X28 |
96001-060-280-0 |
from US $0.74 |
||
|
27
|
27
96100-6201300 Bearing (6201) |
96100-6201300 |
from US $4.44 |
||
|
28
|
28
96150-620-301-0 Bearing, radial ball, 6203uu |
96150-620-301-0 |
from US $9.49 |
||
