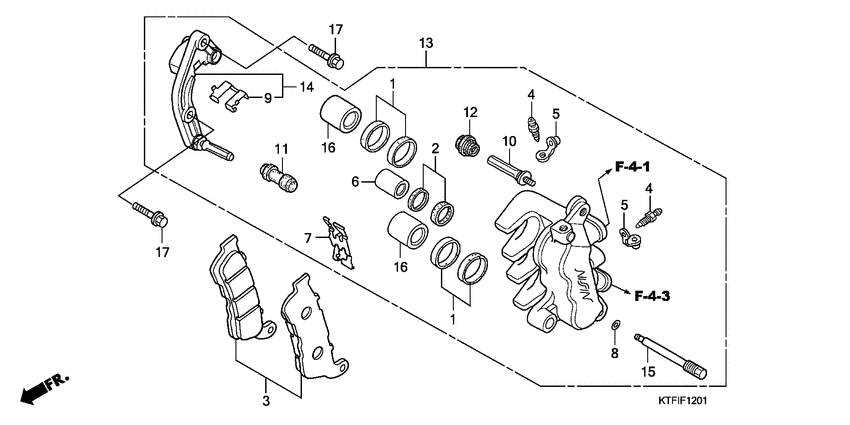

Front brake caliper (SH1259/1509) Diagram Honda SH125
- Year
- 2009
- Model code
- SH1259
- Sales region
- France
- Frame
- ZDCJF23B09F000001 - ZDCJF23B09F999999
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06451-GE2-405 Seal set, piston |
06451-GE2-405 |
from US $5 |
||
|
2
|
2
06451-MZ2-405 Seal set, piston |
06451-MZ2-405 |
from US $10.51 |
||
|
3
|
3
06455-KSV-J04 Pad Set, Fr. |
06455-KSV-J04 |
from US $68.80 |
||
|
4
|
4
43352-568-003 SCREW, BLEEDER (NISSIN) |
43352-568-003 |
from US $4.22 |
||
|
5
|
5
43353-461-771 CapBLEEDER |
43353-461-771 |
from US $3.70 |
||
|
6
|
6
45107-MAJ-G41 Piston (22x27) |
45107-MAJ-G41 |
from US $21.35 |
||
|
7
|
7
45108-MBT-D52 Spring, pad |
45108-MBT-D52 |
from US $8.73 |
||
|
8
|
8
45111-MAJ-G41 O-ring (2.5x1.5) |
45111-MAJ-G41 |
from US $3.26 |
||
|
9
|
9
45112-MZ2-006 Retainer, bracket |
45112-MZ2-006 |
from US $5.03 |
||
|
10
|
10
45131-ML7-921 Bolt a, pin |
45131-ML7-921 |
from US $7.85 |
||
|
11
|
11
45132-166-016 Bush, pin |
45132-166-016 |
from US $1.40 |
||
|
12
|
12
45133-MA3-006 Boot b |
45133-MA3-006 |
from US $2.54 |
||
|
13
|
13
45150-KTW-901 Caliper sub assy.L. FR. |
45150-KTW-901 |
US $450.56 |
||
|
14
|
14
45190-KSV-J01 Bracket sub-assy. |
45190-KSV-J01 |
from US $64.06 |
||
|
15
|
15
45215-MBT-D51 Pin, hanger |
45215-MBT-D51 |
from US $5.62 |
||
|
16
|
16
45217-MAJ-G41 Piston b (25x35) |
45217-MAJ-G41 |
from US $21.35 |
||
|
17
|
17
90131-KBV-003 Bolt, flange (8x32) |
90131-KBV-003 |
from US $1.67 |
