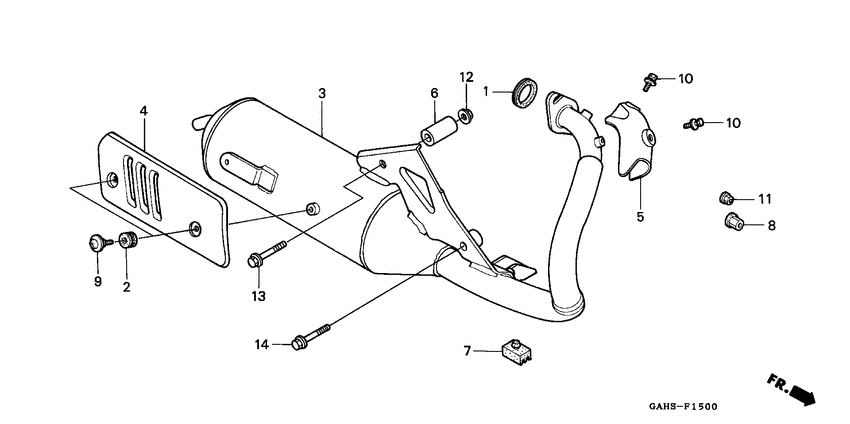

Exhaust muffler Diagram Honda SK50
- Year
- 1994
- Model code
- SK50MR
- Sales region
- Spain
- Frame
- VTMAF27900E006202 - VTMAF27900E008201
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18291-GE2-920 Gasket,ex.pipe |
18291-GE2-920 |
from US $7.70 |
||
|
2
|
2
18293-GZ5-000 Rubber |
18293-GZ5-000 |
from US $2.15 |
||
|
3
|
3
18300-GAH-600
Muffler comp.,exh
|
18300-GAH-600 |
— | ||
|
4
|
4
18318-GW0-000ZB
Protector.mu*nh1*
|
18318-GW0-000ZB |
— | ||
|
5
|
5
18325-GAH-600
Protr,exh.pipe
|
18325-GAH-600 |
— | ||
|
6
|
6
40542-GAH-600
Collar muffler
|
40542-GAH-600 |
— | ||
|
7
|
7
50505-GR1-000 Rubber |
50505-GR1-000 |
from US $3.18 |
||
|
8
|
8
90304-GW0-000 Nut, special, 6mm |
90304-GW0-000 |
from US $3.70 |
||
|
9
|
9
91508-GZ5-000 Screw,pan,5x12.5 |
91508-GZ5-000 |
from US $2.52 |
||
|
10
|
10
93401-060-100-0 Bolt-washer,6x10 |
93401-060-100-0 |
from US $0.52 |
||
|
11
|
11
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
12
|
12
94050-08070 NutFLANGE, 8MM |
94050-08070 |
from US $0.52 |
||
|
13
|
13
95701-080-550-7 BoltFLANGE, 8X55 |
95701-080-550-7 |
from US $0.81 |
||
|
14
|
14
95701-080-650-7 BoltFLANGE, 8X65 |
95701-080-650-7 |
from US $0.98 |
