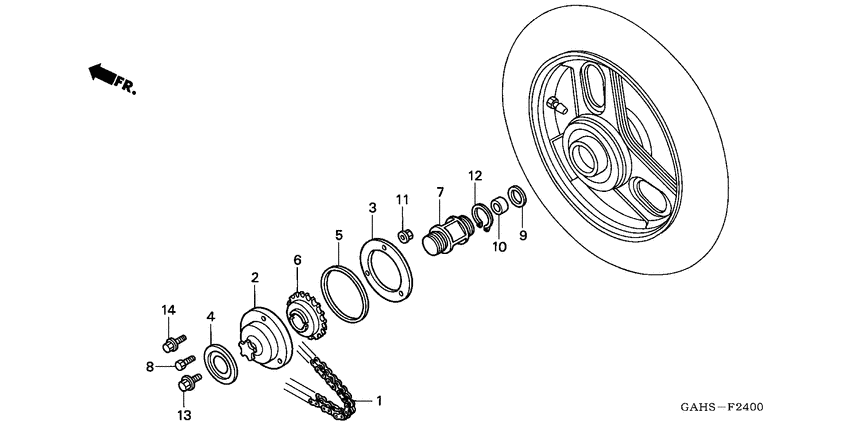

Pedal chain Diagram Honda SK50
- Year
- 1994
- Model code
- SK50MR
- Sales region
- Spain
- Frame
- VTMAF27900E006202 - VTMAF27900E008201
- Engine Capacity
- 50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40535-GAH-600
Chain drive pedal
|
40535-GAH-600 |
— | ||
|
2
|
2
41201-GAH-600
Sprocket driven 5t
|
41201-GAH-600 |
— | ||
|
3
|
3
41202-GAJ-900
Plate driven sprocke
|
41202-GAJ-900 |
— | ||
|
4
|
4
41204-GAJ-900
Cover
|
41204-GAJ-900 |
— | ||
|
5
|
5
41205-GAJ-303
Ring
|
41205-GAJ-303 |
— | ||
|
6
|
6
41210-GAJ-900
Free wheel (18t)
|
41210-GAJ-900 |
— | ||
|
7
|
7
41215-GAJ-900
Joint
|
41215-GAJ-900 |
— | ||
|
8
|
8
90112-GAJ-900
Bolt,hex.,5x14
|
90112-GAJ-900 |
— | ||
|
9
|
9
90439-443-740 Washer, 16x22 |
90439-443-740 |
from US $1.92 |
||
|
10
|
10
90501-GK8-870 Collar, muffler mounting |
90501-GK8-870 |
from US $2.29 |
||
|
11
|
11
94050-05000 NutFLANGE, 5MM |
94050-05000 |
from US $0.29 |
||
|
12
|
12
94514-16000 Circlip external |
94514-16000 |
US $0.52 |
||
|
13
|
13
95701-0803507 Bolt, flange, 8x35 |
95701-0803507 |
from US $0.74 |
||
|
14
|
14
96001-060-120-0 BoltFLANGE, 6X12 |
96001-060-120-0 |
from US $0.59 |
