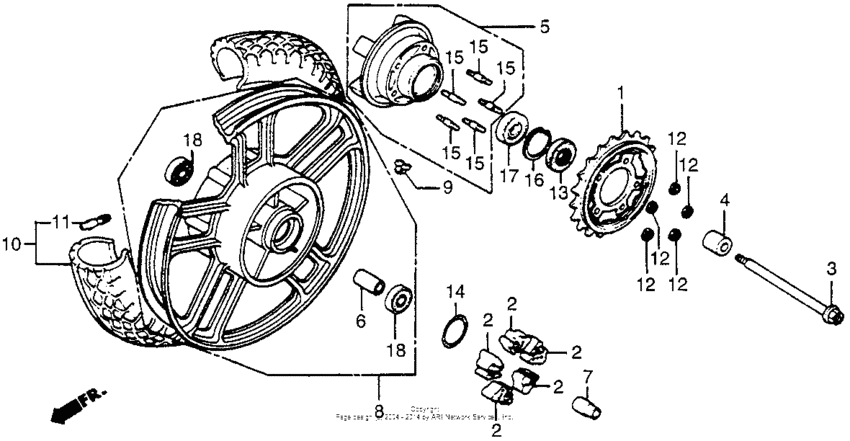

Rear wheel Diagram Honda VF500 Magna V30
- Year
- 1985
- Model code
- VF500C A
- Sales region
- USA
- Frame
- JH2PC130*FM100001 - JH2PC130*FM107580
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
06430-MW3-671 Shoe kit, brake |
06430-MW3-671 |
from US $61.32 |
||
|
1
|
1
41200-MN4-000 Sprocket (44t) |
41200-MN4-000 |
US $111.10 |
||
|
2
|
2
41241-MA6-000 Damper, rr. wheel |
41241-MA6-000 |
from US $9.92 |
||
|
3
|
3
42301-MR3-920
Axle, rr. wheel
|
42301-MR3-920 |
— | ||
|
4
|
4
42311-MJ8-000
Coll.rr.wheel sid
|
42311-MJ8-000 |
— | ||
|
5
|
5
42610-KE7-000
Flg,final driven
|
42610-KE7-000 |
— | ||
|
6
|
6
42620-KAZ-000 Collar, rr. |
42620-KAZ-000 |
US $11.84 |
||
|
7
|
7
42625-MA6-000 Collar b, rr. |
42625-MA6-000 |
from US $19.99 |
||
|
8
|
8
42650-MJ8-305
Wheel set, rr.
|
42650-MJ8-305 |
— | ||
|
9
|
9
42704-MB0-000 Weight (10g) |
42704-MB0-000 |
from US $9.03 |
||
| replacement | |||||
|
9
|
9
42704-MCF-D60 Weight, balance (10) |
42704-MCF-D60 |
from US $9.03 |
||
|
9
|
9
42705-MB0-000 Weight (20g) |
42705-MB0-000 |
US $14.50 |
||
| replacement | |||||
|
9
|
9
42705-MCF-D60 Weight, balance (20) |
42705-MCF-D60 |
from US $10.95 |
||
|
9
|
9
42706-MB0-000 Weight (30g) |
42706-MB0-000 |
US $17.65 |
||
| replacement | |||||
|
9
|
9
42706-MCF-D60 Weight, balance (30) |
42706-MCF-D60 |
from US $10.95 |
||
|
9
|
9
42706-MCF-D60 Weight, balance (30) |
42706-MCF-D60 |
from US $10.95 |
||
|
10
|
10
42710-ME2-672
Tire assy.,rr.
|
42710-ME2-672 |
— | ||
|
11
|
11
42753-425-003 Valve, rim |
42753-425-003 |
from US $13.17 |
||
|
12
|
12
90308-357-000 Nut, hex. (10mm) |
90308-357-000 |
from US $4.59 |
||
|
13
|
13
91252-MC4-013 Oil seal (28x47.2x7) |
91252-MC4-013 |
from US $6.53 |
||
|
14
|
14
91302-MA6-003 O-ring (61x2) |
91302-MA6-003 |
from US $4.59 |
||
|
15
|
15
92716-10045-0E Bolt, stud (10x45) |
92716-10045-0E |
from US $1.33 |
||
|
16
|
16
9452047000 Circlip, internal, 47mm |
9452047000 |
from US $1.48 |
||
|
16
|
16
9452147000 Circlip, internal, 47mm |
9452147000 |
from US $1.63 |
||
|
17
|
17
96140-620-401-0 Bearing (6204u) |
96140-620-401-0 |
from US $8.58 |
||
|
18
|
18
96150-6303010 Bearing (6303uu) |
96150-6303010 |
from US $10.66 |
||
