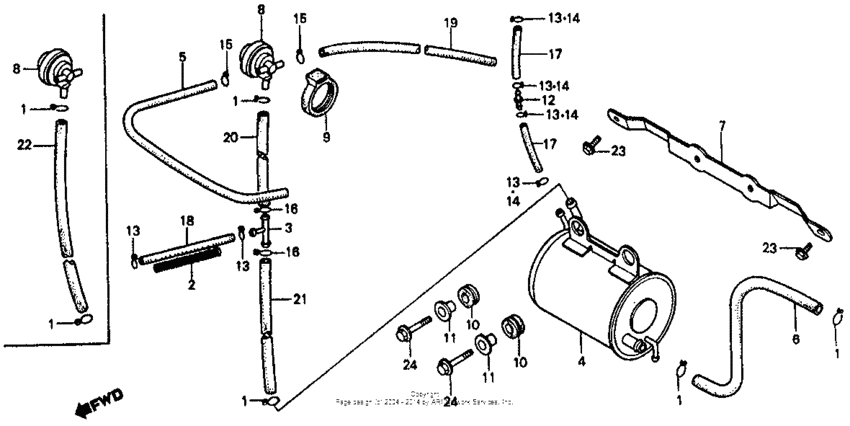

Canister i + purge control valve i Diagram Honda VF500 Interceptor
- Year
- 1984
- Model code
- VF500F AC
- Sales region
- USA
- Frame
- JH2PC121*EM000005 - JH2PC121*EM001814
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15772-500-010 Clip, breather tube |
15772-500-010 |
from US $4.44 |
||
|
4
|
4
17410-MF2-681
Canister
|
17410-MF2-681 |
— | ||
|
5
|
5
17411-MF2-680
Tube, purge
|
17411-MF2-680 |
— | ||
|
6
|
6
17413-MF2-680
Tube, joint
|
17413-MF2-680 |
— | ||
|
7
|
7
17415-MF2-680
Bracket, canister
|
17415-MF2-680 |
— | ||
|
8
|
8
17440-MB4-880
Valve, purge control
|
17440-MB4-880 |
— | ||
|
9
|
9
17451-ME5-760 Rubber |
17451-ME5-760 |
from US $7.10 |
||
|
10
|
10
19051-MB4-880 Rubber, canister mounting |
19051-MB4-880 |
from US $2.39 |
||
|
11
|
11
19052-MB4-880 Collar, canister mounting |
19052-MB4-880 |
from US $3.85 |
||
|
12
|
12
38562-663-920 Joint bWASHER TUBE (MITSUBA) |
38562-663-920 |
from US $3.26 |
||
|
13
|
13
95002-02070 ClipTUBE(B7) |
95002-02070 |
from US $0.44 |
||
|
15
|
15
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
|
17
|
17
95005-350-0120M Bulk hose (3.5x1000) |
95005-350-0120M |
from US $5.18 |
||
|
19
|
19
95005-550-0320M Bulk hose (5.5mm x 3000mm)Length 3000mm |
95005-550-0320M |
from US $24.48 |
||
|
22
|
22
95005-800-0120M Bulk hose (8x1000) |
95005-800-0120M |
from US $11.25 |
||
|
23
|
23
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
24
|
24
95701-060-200-0 Bolt |
95701-060-200-0 |
from US $0.52 |
