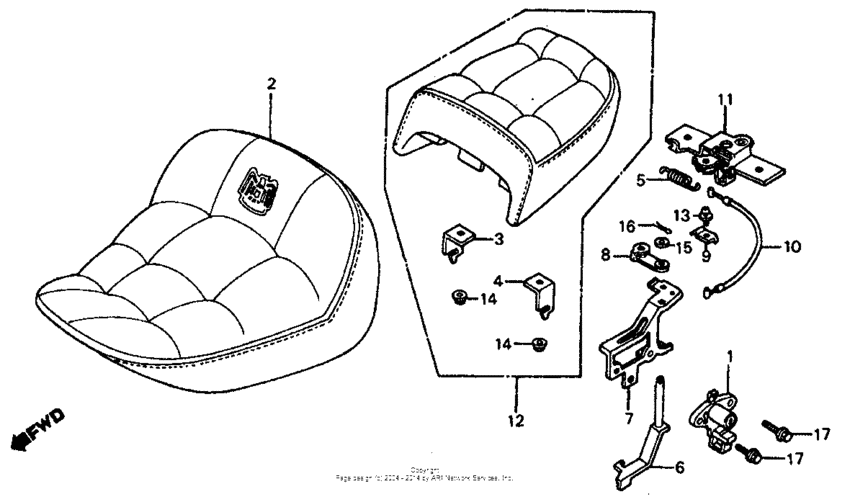

Seat 85-86 Diagram Honda VF700 Magna
- Year
- 1985
- Model code
- VF700C AC
- Sales region
- USA
- Frame
- JH2RC211*FM100007 - JH2RC211*FM101325
- Engine Capacity
- 700
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50710-MB1-871
Holder assy helmt
|
50710-MB1-871 |
— | ||
|
2
|
2
77100-MK3-000
Seat assy front
|
77100-MK3-000 |
— | ||
|
3
|
3
77102-MK3-000
Plate r seat lock
|
77102-MK3-000 |
— | ||
|
4
|
4
77103-MK3-000
Plate l seat lock
|
77103-MK3-000 |
— | ||
|
5
|
5
77151-MB1-870
Spring, seat lock
|
77151-MB1-870 |
— | ||
|
6
|
6
77152-MK3-000
Lever,a seat lock
|
77152-MK3-000 |
— | ||
|
7
|
7
77153-MK3-000
Bracket
|
77153-MK3-000 |
— | ||
|
8
|
8
77154-MB1-870
Lvr b,seat lock
|
77154-MB1-870 |
— | ||
|
9
|
9
77155-MK3-000
Stopper,seat lock
|
77155-MK3-000 |
— | ||
|
10
|
10
77156-MK3-000
Cable,seat lock
|
77156-MK3-000 |
— | ||
|
11
|
11
77160-MB1-870 Brkt comp,lock |
77160-MB1-870 |
US $17.14 |
||
|
12
|
12
77300-MK3-000
Seat assy.,rear
|
77300-MK3-000 |
— | ||
|
13
|
13
93892-040-080-7 Screw-washer4X8 |
93892-040-080-7 |
from US $0.44 |
||
|
14
|
14
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
15
|
15
94101-06700 WasherPLAIN, 6MM |
94101-06700 |
from US $0.37 |
||
|
16
|
16
9420116100 Pin, split, 1.6x10 |
9420116100 |
from US $0.37 |
||
|
17
|
17
95701-060-200-7 BoltFLANGE, 6X20 |
95701-060-200-7 |
from US $0.58 |
