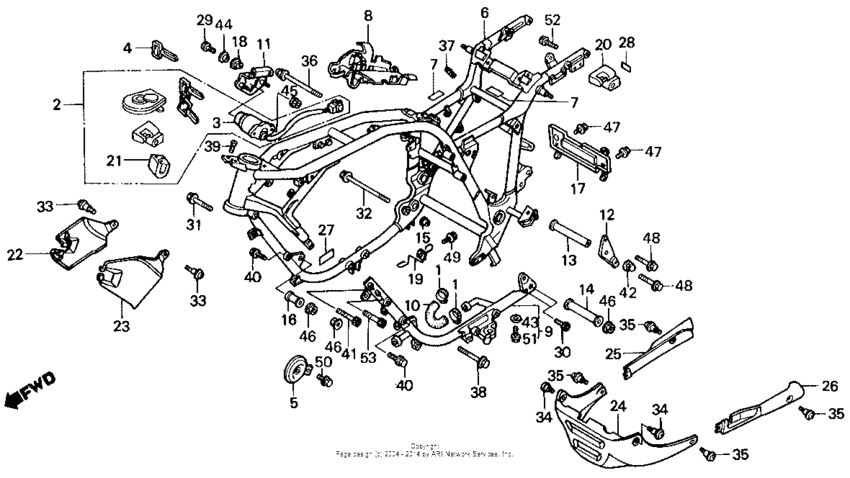

Frame Diagram Honda VF750 Magna V45
- Year
- 1988
- Model code
- VF750C AC
- Sales region
- USA
- Frame
- 1HFRC281*JA100001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19516-ML7-691 Clamp (24-32mm) |
19516-ML7-691 |
from US $9.03 |
||
|
2
|
2
35010-MN0-680
Lock set
|
35010-MN0-680 |
— | ||
|
3
|
3
35100-MN0-013
Switch, combination
|
35100-MN0-013 |
— | ||
|
4
|
4
35121-KW3-771 Key, blank (type1) |
35121-KW3-771 |
from US $8.58 |
||
|
4
|
4
35122-KW3-771 Key, blank (type2) |
35122-KW3-771 |
from US $9.01 |
||
|
5
|
5
38120-MR5-661 Horn (low) |
38120-MR5-661 |
US $37.75 |
||
|
6
|
6
50100-MN2-710 Body comp.,frame |
50100-MN2-710 |
US $2,484.09 |
||
|
7
|
7
50159-KR3-300 Film, frame pipe |
50159-KR3-300 |
from US $2.72 |
||
|
8
|
8
50189-MN0-010
Plate,f/tank ht.g
|
50189-MN0-010 |
— | ||
|
9
|
9
50210-MN0-680
Sub-frame
|
50210-MN0-680 |
— | ||
|
10
|
10
50242-MB0-000
Hose,under water
|
50242-MB0-000 |
— | ||
|
11
|
11
50245-MN0-000
Stay.,comb sw.
|
50245-MN0-000 |
— | ||
|
12
|
12
50356-MN0-000
Plate,rr.eng.hang
|
50356-MN0-000 |
— | ||
|
13
|
13
50361-MB2-000
Coller,up.eng hng
|
50361-MB2-000 |
— | ||
|
14
|
14
50362-MN0-000
Collar,rr.lh.eng.
|
50362-MN0-000 |
— | ||
|
15
|
15
50363-MB0-000
Collar c,hanger
|
50363-MB0-000 |
— | ||
|
16
|
16
50363-MN0-000
Collar,fr.rh eng.
|
50363-MN0-000 |
— | ||
|
17
|
17
50428-MN0-680
Plate a,heat guar
|
50428-MN0-680 |
— | ||
|
18
|
18
50451-GB6-920 Rubber |
50451-GB6-920 |
from US $2.29 |
||
|
19
|
19
50528-MN0-000
Guide,overflow tu
|
50528-MN0-000 |
— | ||
|
20
|
20
50710-086-007 Holder assy., helmet |
50710-086-007 |
from US $24.77 |
||
|
21
|
21
53600-086-007 Lock, handlebar |
53600-086-007 |
from US $26.38 |
||
|
22
|
22
61402-MN0-000
Cover,r.fr.side
|
61402-MN0-000 |
— | ||
|
23
|
23
61403-MN0-000
Cover l,fr.side
|
61403-MN0-000 |
— | ||
|
24
|
24
64230-MN2-000ZB
Cowl,un*r-107c-u*
|
64230-MN2-000ZB |
— | ||
|
24
|
24
64230-MN2-000ZC
Cowl,unde*nh-1-z*
|
64230-MN2-000ZC |
— | ||
|
25
|
25
64231-MN2-000ZB
Cowl,r.*r-107c-u*
|
64231-MN2-000ZB |
— | ||
|
25
|
25
64231-MN2-000ZC
Cowl r,un*nh-1-z*
|
64231-MN2-000ZC |
— | ||
|
26
|
26
64232-MN2-000ZB
Cowl,l.*r-107c-u*
|
64232-MN2-000ZB |
— | ||
|
26
|
26
64232-MN2-000ZC
Cowl l,un*nh-1-z*
|
64232-MN2-000ZC |
— | ||
|
27
|
27
87139-463-670 Label, high altitude |
87139-463-670 |
from US $3.77 |
||
|
28
|
28
87511-KR3-670 Label, helmet holder |
87511-KR3-670 |
US $3.18 |
||
|
29
|
29
90004-ML4-610 Bolt (6x18) |
90004-ML4-610 |
from US $2.15 |
||
|
30
|
30
90101-MB0-000
Bolt, socket (10x25)
|
90101-MB0-000 |
— | ||
|
31
|
31
90102-MN0-000 Bolt, flange (10x75) |
90102-MN0-000 |
from US $9.03 |
||
|
32
|
32
90104-MB4-000
Bolt,flg.,10x355
|
90104-MB4-000 |
— | ||
|
33
|
33
90105-MB1-000 Screw, special, 5x12 |
90105-MB1-000 |
from US $3.03 |
||
|
34
|
34
90107-KR0-000 Bolt, fairing, 6mm |
90107-KR0-000 |
from US $4 |
||
|
35
|
35
90108-MN0-000 Screw, pan, 5x13 |
90108-MN0-000 |
from US $2.52 |
||
|
36
|
36
90110-MN0-000
Bolt.flange 10x21
|
90110-MN0-000 |
— | ||
|
37
|
37
90126-MN0-000
Rubber,protector
|
90126-MN0-000 |
— | ||
|
38
|
38
90158-438-000 Bolt (10x50) |
90158-438-000 |
from US $6.38 |
||
|
39
|
39
90164-028-000 Screw (6x12) |
90164-028-000 |
from US $1.92 |
||
|
40
|
40
90165-MA3-660
Bolt,flange 8x62
|
90165-MA3-660 |
— | ||
|
41
|
41
90181-MN0-000 Bolt, socket (10x45) |
90181-MN0-000 |
from US $4.44 |
||
|
42
|
42
90201-HA0-000 Nut (10mm) |
90201-HA0-000 |
from US $5.18 |
||
|
43
|
43
90441-028-010 Washer, sealing, 6mm |
90441-028-010 |
from US $2.15 |
||
|
44
|
44
90501-124-000 Washer, fr |
90501-124-000 |
from US $3.42 |
||
|
45
|
45
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
46
|
46
94050-10000 NutFLANGE, 10MM |
94050-10000 |
from US $0.74 |
||
|
47
|
47
95700-060-100-8 BoltFLANGE, 6X10 |
95700-060-100-8 |
US $24.80 |
||
| replacement | |||||
|
47
|
47
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
47
|
47
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
48
|
48
95701-0801602 Bolt, flange (8x16) |
95701-0801602 |
from US $0.59 |
||
|
49
|
49
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
50
|
50
95701-0801007 Bolt, flange, 8x10 |
95701-0801007 |
from US $0.59 |
||
|
51
|
51
96001-060-100-7 BoltFLANGE, 6X10 |
96001-060-100-7 |
from US $0.52 |
||
|
52
|
52
96600-0601007 Bolt, socket (6x10) |
96600-0601007 |
from US $0.59 |
||
|
53
|
53
96700-100-401-7 Bolt,socket,10x40 |
96700-100-401-7 |
US $0.89 |
||
