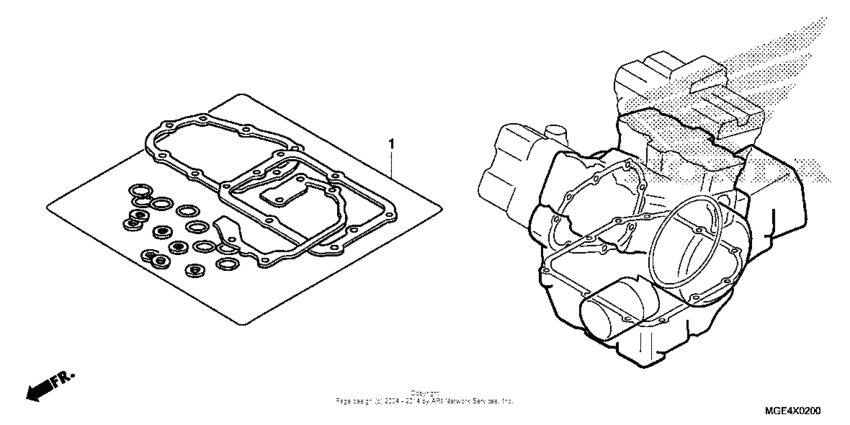

Gasket kit b Diagram Honda VFR1200 VFR
- Year
- 2010
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631*AK000001 - JH2SC631*AK099999
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06112-MGE-701 New Genuine Part |
06112-MGE-701 |
from US $85.92 |
||
|
1
|
1
22862-MGE-000 Gskt, slave cylinder |
22862-MGE-000 |
US $5.20 |
||
| replacement | |||||
|
1
|
1
22862-MGE-010 New Genuine Part |
22862-MGE-010 |
US $7.17 |
||
|
1
|
1
90463-ML7-000 Washer (6.5mm) |
90463-ML7-000 |
from US $2.22 |
||
|
1
|
1
91301-MEH-003 O-ring (13x1.5) |
91301-MEH-003 |
from US $2.22 |
||
|
1
|
1
91305-KC1-850 O-ring (16.5x2.5) |
91305-KC1-850 |
from US $2.66 |
||
|
1
|
1
91309-PJ7-010 O-ring11.5X3.5 |
91309-PJ7-010 |
from US $1.70 |
||
|
1
|
1
11663-MGE-003 Gskt, side gear case |
11663-MGE-003 |
from US $20.54 |
||
|
1
|
1
15145-MGE-003 Gasket, oil pump |
15145-MGE-003 |
from US $8.58 |
||
|
1
|
1
15154-MAT-000 Gasket, oil strainer |
15154-MAT-000 |
from US $2.86 |
||
|
1
|
1
19064-MGE-000 Gasket, water joint |
19064-MGE-000 |
from US $7.10 |
||
|
1
|
1
19226-MGE-000 Gasket |
19226-MGE-000 |
from US $7.55 |
||
|
1
|
1
90402-MFJ-D01 Washer (34.5mm) |
90402-MFJ-D01 |
from US $9.03 |
||
|
1
|
1
90441-706-000 Washer, sealing, 6mm |
90441-706-000 |
from US $1.04 |
||
|
1
|
1
90442-MR1-770 Washer (8mm) |
90442-MR1-770 |
from US $2.22 |
||
|
1
|
1
90442-028-000 Washer (8mm) |
90442-028-000 |
from US $1.22 |
||
|
1
|
1
91301-ML7-003 O-ring (48.1x3.6) |
91301-ML7-003 |
from US $3.63 |
||
|
1
|
1
91302-MB0-013 O-ring (32.95x2.62) |
91302-MB0-013 |
from US $3.03 |
||
|
1
|
1
91302-MB6-830 O-ring, 13x3.0 |
91302-MB6-830 |
from US $2.29 |
||
|
1
|
1
91305-MG7-003 O-ring (5x1.7) |
91305-MG7-003 |
from US $2.52 |
||
|
1
|
1
91307-KF0-003 O-ring (18x3) |
91307-KF0-003 |
from US $1.42 |
||
|
1
|
1
91312-MG7-003 O-ring (24.4x3.1) |
91312-MG7-003 |
from US $7.99 |
||
|
1
|
1
91315-MGE-000 O-ring (63,5x1,9) |
91315-MGE-000 |
from US $4.44 |
||
|
1
|
1
91316-MJ8-003 O-ring (8.4x2.4) |
91316-MJ8-003 |
from US $2.52 |
||
|
1
|
1
91354-MCT-003 O-ring, oil cooler |
91354-MCT-003 |
from US $10.03 |
||
|
1
|
1
94109-14000 WASHER, DRAIN PLUG (14MM)DRAIN PLUG WASHER, 14MM |
94109-14000 |
from US $0.38 |
||
