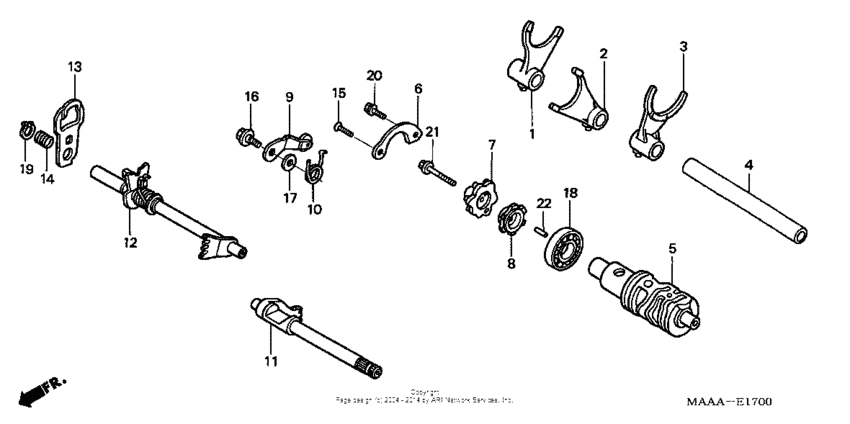

Gearshift drum Diagram Honda VT1100 Shadow Spirit
- Year
- 2006
- Model code
- VT1100C A
- Sales region
- USA
- Frame
- 1HFSC180*6A000001 - 1HFSC180*6A099999
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24211-MCK-A00 Fork, r. gearshift |
24211-MCK-A00 |
US $84.90 |
||
|
2
|
2
24212-MCK-A00
Fork c, gearshift
|
24212-MCK-A00 |
— | ||
|
3
|
3
24213-MCK-A00
Fork, l. gearshift
|
24213-MCK-A00 |
— | ||
|
4
|
4
24241-MCK-A00 Shaft |
24241-MCK-A00 |
US $22.20 |
||
|
5
|
5
24302-MG8-000 Drum, gearshift |
24302-MG8-000 |
from US $146.39 |
||
|
6
|
6
24310-MK7-670 Plate |
24310-MK7-670 |
from US $9.09 |
||
|
7
|
7
24411-MAH-000 Cam, gearshift |
24411-MAH-000 |
from US $21.41 |
||
|
8
|
8
24413-KA6-003 Rotor |
24413-KA6-003 |
US $18.02 |
||
|
9
|
9
24430-MAH-000 Stopper |
24430-MAH-000 |
US $19.01 |
||
|
10
|
10
24435-MM8-000
Spring
|
24435-MM8-000 |
— | ||
|
11
|
11
24610-MAA-A00 Spindle a, gearshift |
24610-MAA-A00 |
US $102.73 |
||
|
12
|
12
24615-MAH-000 Spindle, gearshift |
24615-MAH-000 |
US $123.23 |
||
|
13
|
13
24621-MG8-000 Plate, gearshift |
24621-MG8-000 |
from US $9.30 |
||
|
14
|
14
24631-MAH-300 Spring |
24631-MAH-300 |
US $5.61 |
||
|
15
|
15
90022-ME9-000 Screw, flat (6x16) |
90022-ME9-000 |
from US $1.78 |
||
|
16
|
16
90022-MG8-000 Pivot |
90022-MG8-000 |
from US $2.44 |
||
|
17
|
17
90487-MB0-000 Washer |
90487-MB0-000 |
from US $2.59 |
||
|
18
|
18
91006-MCK-A01 Bearing (17x32x7) |
91006-MCK-A01 |
US $16.22 |
||
|
19
|
19
94510-12000 CirclipEXTERNAL, 12MM |
94510-12000 |
from US $0.44 |
||
|
20
|
20
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
||
|
21
|
21
95701-0603200 Bolt, flange, 6x32 |
95701-0603200 |
from US $0.59 |
||
|
22
|
22
9622230100 Roller (3x10) |
9622230100 |
from US $0.22 |
