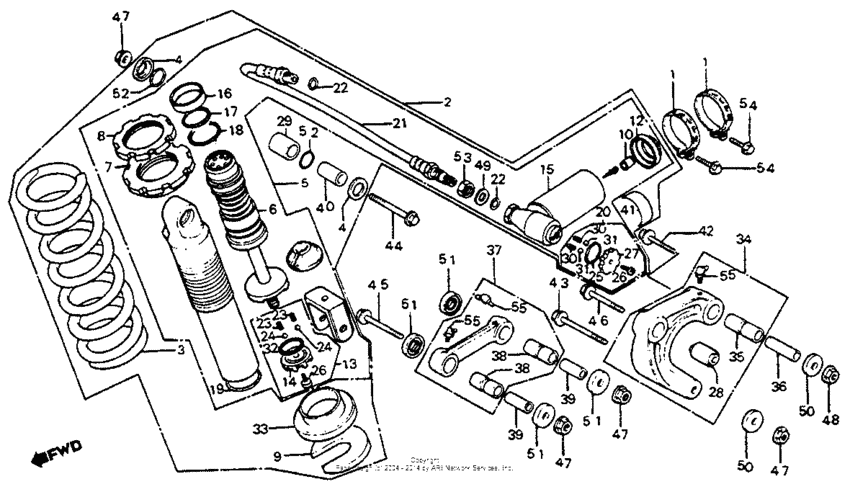

Shock absorber 83-84 Diagram Honda XR350
- Year
- 1983
- Model code
- XR350R A
- Sales region
- USA
- Frame
- JH2NE010*DM000023 - JH2NE010*DM005646
- Engine Capacity
- 350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50252-KF0-000
Band,sub tank
|
50252-KF0-000 |
— | ||
|
2
|
2
52400-KF0-003 Cushion assy.,rr. |
52400-KF0-003 |
US $1,748.74 |
||
|
3
|
3
52401-KF0-003
Spring, shock
|
52401-KF0-003 |
— | ||
|
4
|
4
52406-KB7-003 Cap, dust seal |
52406-KB7-003 |
from US $4.40 |
||
|
5
|
5
52410-KF0-003 Damper comp.,rr. |
52410-KF0-003 |
US $1,260.17 |
||
|
6
|
6
52421-KF0-003
Rod comp.,pistion
|
52421-KF0-003 |
— | ||
|
7
|
7
52422-KF0-003
Adjuster,spring
|
52422-KF0-003 |
— | ||
|
8
|
8
52423-KF0-003 Nut,adjuster |
52423-KF0-003 |
US $37.62 |
||
|
9
|
9
52424-KF0-003
Stopper,spg.seat
|
52424-KF0-003 |
— | ||
|
10
|
10
52425-381-771 Cap, air valve |
52425-381-771 |
from US $4.59 |
||
|
12
|
12
52427-MA0-771
Cap,sub tank
|
52427-MA0-771 |
— | ||
|
13
|
13
52428-KF0-003
Plate set, adjust
|
52428-KF0-003 |
— | ||
|
14
|
14
52429-KF0-003
Plate, adjusting
|
52429-KF0-003 |
— | ||
|
15
|
15
52430-KF0-003
Tank assy.,sub
|
52430-KF0-003 |
— | ||
|
16
|
16
52431-KF0-003
Ring,piston
|
52431-KF0-003 |
— | ||
|
17
|
17
52432-KF0-003
O-ring c,2.0x29.5
|
52432-KF0-003 |
— | ||
|
18
|
18
52434-KF0-003
O-ring d,3.5x29.7
|
52434-KF0-003 |
— | ||
|
19
|
19
52435-KF0-003 Ring,stopper |
52435-KF0-003 |
US $4.18 |
||
|
20
|
20
52438-KF0-003
Plate set, adjusting
|
52438-KF0-003 |
— | ||
|
21
|
21
52440-KF0-003
Hose comp.,joint
|
52440-KF0-003 |
— | ||
|
22
|
22
52441-MA0-003 O ring 1.9x9.8 |
52441-MA0-003 |
US $2.66 |
||
|
23
|
23
52445-KF0-003
Spring, click
|
52445-KF0-003 |
— | ||
|
24
|
24
52446-KF0-003
Ball
|
52446-KF0-003 |
— | ||
|
25
|
25
52447-KF0-003
O-ring (2x23.5)
|
52447-KF0-003 |
— | ||
|
26
|
26
52448-KF0-003 Screw |
52448-KF0-003 |
from US $1.22 |
||
|
27
|
27
52449-KF0-003
Plate, adjusting
|
52449-KF0-003 |
— | ||
|
28
|
28
52451-MA0-000 Bush, shock (lower) |
52451-MA0-000 |
from US $7.84 |
||
|
29
|
29
52452-KB7-003 Bush, shock (upper) |
52452-KB7-003 |
from US $13.35 |
||
|
30
|
30
52455-KF0-003 Spring, click |
52455-KF0-003 |
US $7.17 |
||
|
31
|
31
52456-KF0-003 Ball |
52456-KF0-003 |
from US $1.70 |
||
|
32
|
32
52457-KF0-003
Seal, ring
|
52457-KF0-003 |
— | ||
|
33
|
33
52459-KE1-003 Seat c,spring |
52459-KE1-003 |
from US $11.54 |
||
|
34
|
34
52460-KF0-010
Arm assy.,cushion
|
52460-KF0-010 |
— | ||
|
35
|
35
52462-KF0-003
Bush, shock arm
|
52462-KF0-003 |
— | ||
|
36
|
36
52463-KF0-000
Collar
|
52463-KF0-000 |
— | ||
|
37
|
37
52470-KF0-010
Rod assy
|
52470-KF0-010 |
— | ||
|
38
|
38
52472-MA0-013 Bush |
52472-MA0-013 |
from US $14.01 |
||
|
39
|
39
52473-MA0-020 Collar |
52473-MA0-020 |
from US $7.84 |
||
|
40
|
40
52486-KB7-003 Colr, shock (upper) |
52486-KB7-003 |
from US $9.03 |
||
|
41
|
41
87516-KF0-003
Label, rr.
|
87516-KF0-003 |
— | ||
|
42
|
42
90128-KF0-000 Bolt, flange (12x90) |
90128-KF0-000 |
US $11.56 |
||
|
43
|
43
90129-KF0-000 Bolt, flange (10x77) |
90129-KF0-000 |
from US $9.03 |
||
|
44
|
44
90150-KF0-000 Bolt, flange (10x72) |
90150-KF0-000 |
from US $10.80 |
||
|
45
|
45
90151-KV6-910
Bolt,flange,10x69
|
90151-KV6-910 |
— | ||
|
46
|
46
90153-KF0-000 Bolt, flange (10x55) |
90153-KF0-000 |
US $8.70 |
||
|
47
|
47
90304-GE8-003 Nut, u, 10mm |
90304-GE8-003 |
from US $3.33 |
||
|
48
|
48
90306-KF0-003 Nut, flange, 12mm |
90306-KF0-003 |
from US $3.26 |
||
|
49
|
49
90501-MT2-000 Washer |
90501-MT2-000 |
US $2.94 |
||
|
50
|
50
91262-KR8-750 Seal,cushion arm |
91262-KR8-750 |
from US $7.80 |
||
|
51
|
51
91262-KA3-712 Seal |
91262-KA3-712 |
from US $8.89 |
||
|
52
|
52
91351-KB7-003 Dust seal b |
91351-KB7-003 |
from US $2.59 |
||
|
53
|
53
94002-120-000-S NutHEX., 12MM |
94002-120-000-S |
from US $0.59 |
||
|
54
|
54
96001-060-160-0 BoltFLANGE, 6X16 |
96001-060-160-0 |
from US $0.41 |
||
|
55
|
55
9620180000 Fitting (b.76s) |
9620180000 |
from US $1.85 |
