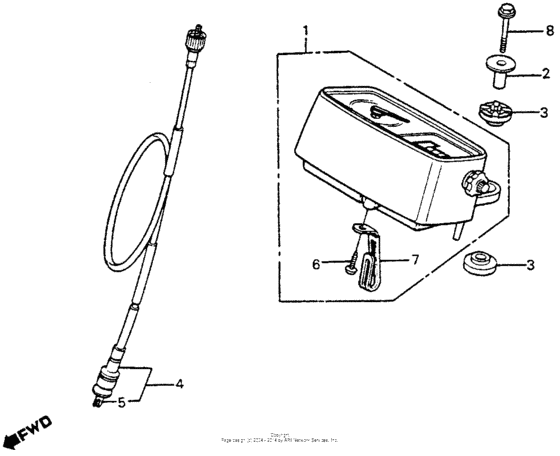

Speedometer 83-84 Diagram Honda XR350
- Year
- 1983
- Model code
- XR350R A
- Sales region
- USA
- Frame
- JH2NE010*DM000023 - JH2NE010*DM005646
- Engine Capacity
- 350
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37200-KF0-672
Speedometer assy
|
37200-KF0-672 |
— | ||
|
2
|
2
37206-KF0-000
Collar
|
37206-KF0-000 |
— | ||
|
3
|
3
37242-KT0-670
Rubber
|
37242-KT0-670 |
— | ||
|
4
|
4
44830-MG7-000 Cable, speedometer |
44830-MG7-000 |
US $25.57 |
||
|
5
|
5
44831-KF0-000 Cable (inner) |
44831-KF0-000 |
US $7.45 |
||
|
6
|
6
93901-34380 ScrewTAPPING, 4X12 |
93901-34380 |
from US $0.37 |
||
|
7
|
7
9459141000 Clip (4x100) |
9459141000 |
from US $1.85 |
||
|
8
|
8
96001-0603207 Bolt, flange (6x32) |
96001-0603207 |
from US $0.74 |
