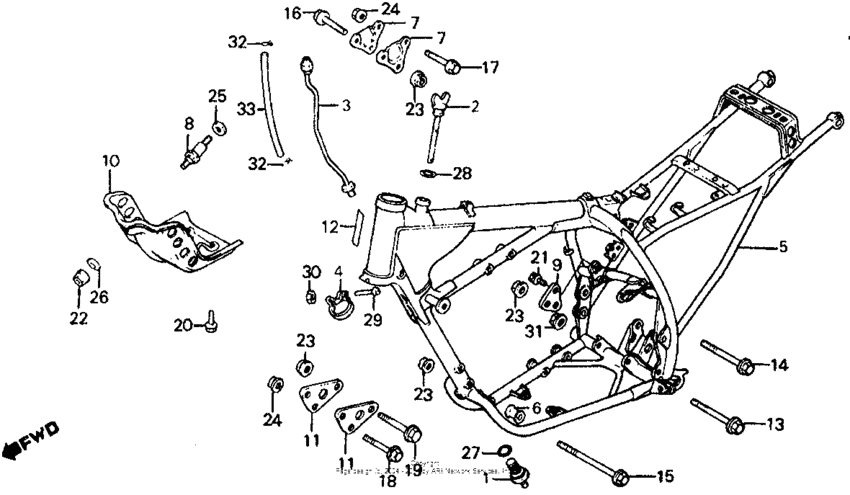

Frame 83-84 Diagram Honda XR500
- Year
- 1983
- Model code
- XR500R A
- Sales region
- USA
- Frame
- JH2PE030*DM000022 - JH2PE030*DM006138
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15500-MG3-000
Strainer,oil
|
15500-MG3-000 |
— | ||
|
2
|
2
15650-MG3-000 Dipstick, oil |
15650-MG3-000 |
from US $18.18 |
||
|
3
|
3
15710-MG3-000
Pipe comp.,oil
|
15710-MG3-000 |
— | ||
|
4
|
4
15711-MG3-000
Clamper,oil pipe
|
15711-MG3-000 |
— | ||
|
5
|
5
50100-MG3-000ZA
Frame,*r-119*
|
50100-MG3-000ZA |
— | ||
|
6
|
6
50130-MG3-000ZC
Collar,eng*r-110*
|
50130-MG3-000ZC |
— | ||
|
7
|
7
50138-MG3-000ZA Plate,r eng*r-119 |
50138-MG3-000ZA |
US $14.37 |
||
|
8
|
8
50142-MG3-000
Bolt,lower drain
|
50142-MG3-000 |
— | ||
|
9
|
9
50157-MG3-000
Plate,r.rr eng
|
50157-MG3-000 |
— | ||
|
10
|
10
50351-MG3-000
Plate,skid
|
50351-MG3-000 |
— | ||
|
11
|
11
50353-MG3-000
Plate,fr.eng hngr
|
50353-MG3-000 |
— | ||
|
12
|
12
87560-373-780ZA
Label, caution *nh0*
|
87560-373-780ZA |
— | ||
|
13
|
13
90105-MG3-000 Bolt, flg (10x110) |
90105-MG3-000 |
from US $9.92 |
||
|
14
|
14
90105-MG3-000 Bolt, flg (10x110) |
90105-MG3-000 |
from US $9.92 |
||
|
15
|
15
90114-MG3-000
Bolt,flg 10x185
|
90114-MG3-000 |
— | ||
|
16
|
16
90153-KF0-000 Bolt, flange (10x55) |
90153-KF0-000 |
US $8.70 |
||
|
17
|
17
90159-KA2-000
Bolt, flange (8x55)
|
90159-KA2-000 |
— | ||
|
18
|
18
90156-MG3-000
Bolt,flang.8x70
|
90156-MG3-000 |
— | ||
|
19
|
19
90158-MG3-000 Bolt, flange (10x70) |
90158-MG3-000 |
from US $6.51 |
||
|
20
|
20
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
||
|
21
|
21
96300-0801600 Bolt, flange (8x16) |
96300-0801600 |
from US $0.74 |
||
|
22
|
22
90301-693-000 NutOPEN STAY, 6MM |
90301-693-000 |
from US $2.29 |
||
|
22
|
22
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
23
|
23
90308-382-670 Nut, flange, 10mm |
90308-382-670 |
from US $3.48 |
||
|
24
|
24
90309-357-000 Nut, hex., 8mm |
90309-357-000 |
from US $5.03 |
||
|
25
|
25
90481-463-000 Washer10.2MM |
90481-463-000 |
from US $2.21 |
||
|
26
|
26
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
27
|
27
91305-384-750 O-ring (25x3) |
91305-384-750 |
from US $4.04 |
||
|
28
|
28
91307-KF0-003 O-ring (18x3) |
91307-KF0-003 |
from US $1.42 |
||
|
28
|
28
91307-035-000 O-ring (18x3) |
91307-035-000 |
from US $4.14 |
||
|
29
|
29
93891-0501800 Screw-washer (5x18) |
93891-0501800 |
US $0.44 |
||
|
30
|
30
94001-050-000-S NutHEX., 5MM |
94001-050-000-S |
from US $0.37 |
||
|
31
|
31
9403010200 Nut, hex., 10mm |
9403010200 |
from US $0.52 |
||
|
32
|
32
95002-02120 ClipTUBE (B12) |
95002-02120 |
from US $0.52 |
||
|
33
|
33
95005-750-0310M Bulk hose (7.3x3000) |
95005-750-0310M |
from US $61.20 |
