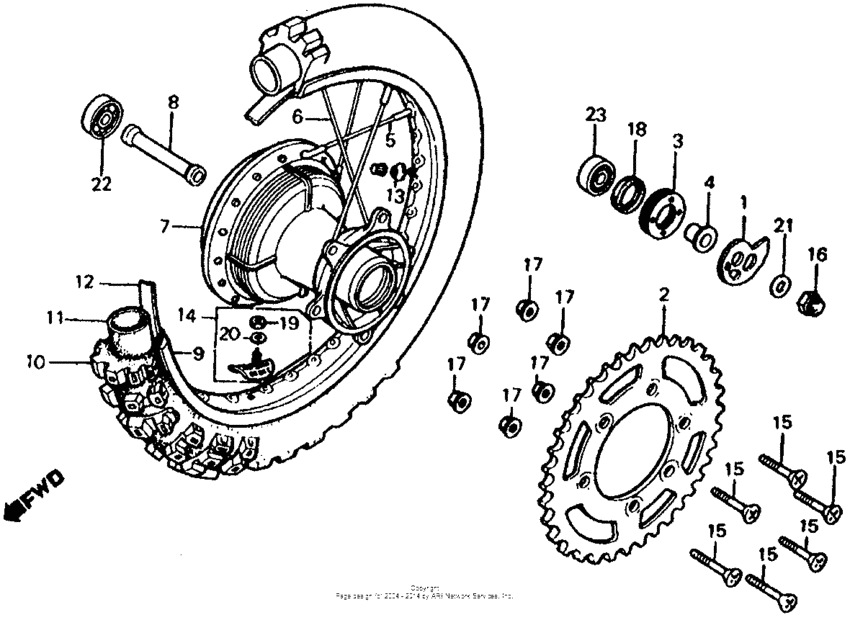

Rear wheel 83-84 Diagram Honda XR500
- Year
- 1983
- Model code
- XR500R A
- Sales region
- USA
- Frame
- JH2PE030*DM000022 - JH2PE030*DM006138
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40545-KF0-000 Adjuster,l.chain |
40545-KF0-000 |
US $13.74 |
||
| replacement | |||||
|
1
|
1
40545-MY6-670 Adjuster, l. chain |
40545-MY6-670 |
from US $12.18 |
||
|
1
|
1
40545-MY6-670 Adjuster, l. chain |
40545-MY6-670 |
from US $12.18 |
||
|
2
|
2
41201-MG3-505
Sprocket (48t)
|
41201-MG3-505 |
— | ||
|
3
|
3
41231-429-000 Retainer, bearing |
41231-429-000 |
from US $16.73 |
||
|
4
|
4
42312-KF0-000 Collar, rr. wheel |
42312-KF0-000 |
from US $9.77 |
||
|
5
|
5
426A0-KF0-000 Spoke,rr.9x162 |
426A0-KF0-000 |
US $4.75 |
||
|
6
|
6
426B0-KF0-000
Spoke,rr.9x183.5
|
426B0-KF0-000 |
— | ||
|
7
|
7
42601-KF0-000
Hub,rr.wheel
|
42601-KF0-000 |
— | ||
|
8
|
8
42620-KF0-000
Collar,axle dist
|
42620-KF0-000 |
— | ||
|
9
|
9
42701-KF0-505
Rim, rr. (2.15x17)
|
42701-KF0-505 |
— | ||
|
10
|
10
42711-KN5-005
Tire,rr.(5.10-17-
|
42711-KN5-005 |
— | ||
|
11
|
11
42712-MA0-005 Tube, tire (5.10-17) |
42712-MA0-005 |
US $15.32 |
||
| replacement | |||||
|
11
|
11
42712-MC4-005
Tube, tire (4.60-17)
|
42712-MC4-005 |
— | ||
|
12
|
12
42713-MA0-005 Flap, tire (2.15x17) |
42713-MA0-005 |
US $7.65 |
||
|
13
|
13
42714-KA3-710 Cap, valve |
42714-KA3-710 |
from US $6.96 |
||
|
14
|
14
42715-MA0-770 Stopper, bead (2.15) |
42715-MA0-770 |
from US $46.19 |
||
|
15
|
15
90125-KA3-700 Screw, flat (8x29) |
90125-KA3-700 |
from US $5.03 |
||
|
16
|
16
90305-MA0-003 Nut, axle (16mm) |
90305-MA0-003 |
from US $4.29 |
||
|
17
|
17
90309-428-731 Nut, flange (self-lock) (m8x1.25) |
90309-428-731 |
from US $4.29 |
||
|
18
|
18
91216-729-921 Oil seal (25x40x7) |
91216-729-921 |
from US $7.10 |
||
|
19
|
19
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
20
|
20
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
21
|
21
9411116000 Washer (16mm) |
9411116000 |
from US $0.52 |
||
|
22
|
22
96140-6203010 Bearing (6203u) |
96140-6203010 |
from US $7.25 |
||
|
23
|
23
96140-630-301-0 Bearing (6303u) !!!(NA) |
96140-630-301-0 |
from US $9.18 |
||
