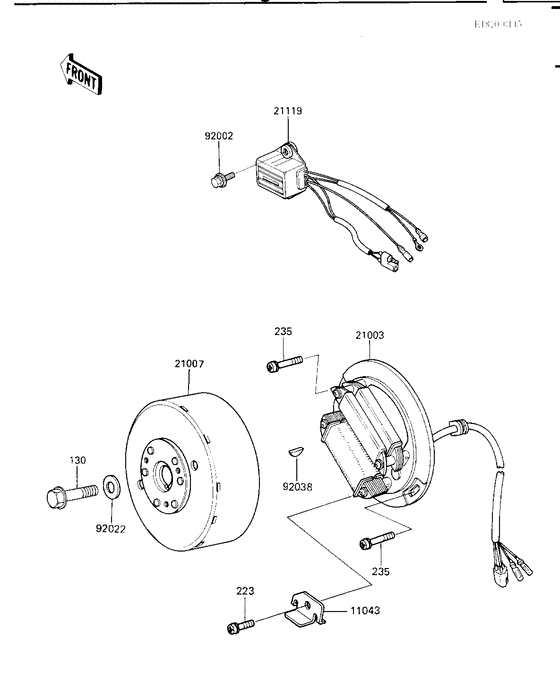

Generator Diagram Kawasaki KDX200 KDX200
- Year
- 1988
- Model code
- KDX200-C3
- Sales region
- USA
- Engine Capacity
- 200
- Model
- KDX200-C (KDX200)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11043
|
11043
11043-1496
BRACKET,STATOR
Bracket,stator; |
11043-1496 |
— | ||
|
21003
|
21003
21003-1178
STATOR
|
21003-1178 |
— | ||
|
21007
|
21007
21007-1145
ROTOR
|
21007-1145 |
— | ||
|
21119
|
21119
21119-1199
IGNITER
|
21119-1199 |
— | ||
|
92002
|
92002
92002-1461
BOLT
Bolt,6x16; |
92002-1461 |
— | ||
| replacement | |||||
|
92002
|
92002
92150-1506 BOLTBolt,6x16; |
92150-1506 |
from US $3.01 |
||
|
92022
|
92022
92022-276 WASHER,PLAIN,8MMWasher,8.5x22x3.2; |
92022-276 |
from US $6.81 |
||
|
92038
|
92038
92038-001 WOODRUFF KEYKey,woodruff; |
92038-001 |
from US $3.73 |
||
|
130
|
130
130P0835
BOLT-FLANGED
|
130P0835 |
— | ||
| replacement | |||||
|
130
|
130
130CA0835 BOLT-FLANGED |
130CA0835 |
from US $1.27 |
||
|
223
|
223
223B0406
SCREW-PAN-WS-CROS
|
223B0406 |
— | ||
| replacement | |||||
|
223
|
223
223AA0406 SCREW-PAN-WS-CROS,4X6 |
223AA0406 |
from US $0.95 |
||
|
235
|
235
235B0616
SCREW-PAN-WP-CROS
|
235B0616 |
— | ||
| replacement | |||||
|
235
|
235
235AA0616 SCREW-PAN-WP-CROS |
235AA0616 |
from US $1.24 |
||
