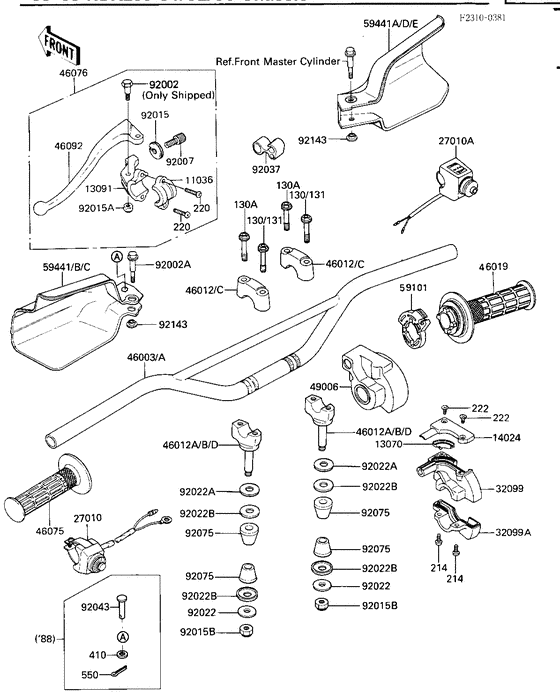

Handlebar Diagram Kawasaki KDX200 KDX200
- Year
- 1988
- Model code
- KDX200-C3
- Sales region
- USA
- Engine Capacity
- 200
- Model
- KDX200-C (KDX200)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11036
|
11036
11036-1297
BRACKET,LEVER HOLDER
Bracket-a,lever holder; |
11036-1297 |
— | ||
| replacements | |||||
|
11036
|
11036
11056-0150
BRACKET,LEVER HOLDER
Bracket-a,lever holder; |
11056-0150 |
— | ||
|
11036
|
11036
11056-0036 BRACKET,LEVER HOLDERBracket-a,lever holder; |
11056-0036 |
from US $9.33 |
||
|
11036
|
11036
11058-2777 BRACKET,LEVER HOLDERBracket-a,lever holder; |
11058-2777 |
US $17.31 |
||
|
13070
|
13070
13070-1073 GUIDE,THROTTLE PEACEGuide,throttle peace; |
13070-1073 |
US $5.39 |
||
|
13091
|
13091
13091-1131 HOLDER,CLUTCH LEVERHolder,clutch lever; |
13091-1131 |
from US $30.52 |
||
|
14024
|
14024
14025-1646 COVER,THROTTLE CASE UCover,throttle case upp; |
14025-1646 |
from US $7.13 |
||
|
27010
|
27010
27010-1161
SWITCH,ENGINE STOP
Switch,engine stop; |
27010-1161 |
— | ||
| replacement | |||||
|
27010
|
27010
27010-1350 Switch, engine stopSwitch,engine stop; |
27010-1350 |
from US $36.95 |
||
|
27010A
|
27010A
27010-1178 SWITCH,LIGHTINGSwitch,lighting; |
27010-1178 |
from US $45.32 |
||
|
32099
|
32099
32099-1036 CASE,THROTTLE UPPCase,throttle upp; |
32099-1036 |
from US $24.98 |
||
|
32099A
|
32099A
32099-1044 CASE,THROTTLE,LWRCase,throttle lwr; |
32099-1044 |
from US $18.07 |
||
| replacement | |||||
|
32099A
|
32099A
32099-0038 CASE,THROTTLE,LWRCase,throttle lwr; |
32099-0038 |
from US $11.09 |
||
|
46003A
|
46003A
46003-1270 HANDLE |
46003-1270 |
US $107.12 |
||
|
46012C
|
46012C
46012-1191 HOLDER-HANDLE |
46012-1191 |
from US $21.39 |
||
|
46012D
|
46012D
46012-1192 HOLDER-HANDLE,LWRHolder-handle,lwr; |
46012-1192 |
US $33.36 |
||
|
46019
|
46019
46019-1054 GRIP-ASSY,THROTTLEGrip-assy,throttle; |
46019-1054 |
from US $26.33 |
||
|
46075
|
46075
46075-1024 GRIP,LHGrip,lh; |
46075-1024 |
from US $17.58 |
||
|
46076
|
46076
46076-1118
LEVER-ASSY-GRIP
Lever-assy-grip,clutch; |
46076-1118 |
— | ||
|
46092
|
46092
46092-1110 LEVER-GRIP,CLUTCHLever-grip,clutch; |
46092-1110 |
US $28.24 |
||
| replacement | |||||
|
46092
|
46092
46092-0045 LEVER-GRIP,CLUTCHLever-grip,clutch; |
46092-0045 |
from US $21.64 |
||
|
49006
|
49006
49006-1097 BOOT,THROTTLE CASEBoot,throttle case; |
49006-1097 |
from US $12.83 |
||
|
59101
|
59101
59101-1103 REEL,THROTTLEReel,throttle; |
59101-1103 |
from US $9.19 |
||
|
59441B
|
59441B
59441-1087-6F COVER-HANDLE,LH,P.WHICover-handle,lh,p.white; |
59441-1087-6F |
US $23.94 |
||
| replacement | |||||
|
59441B
|
59441B
59441-1081-6F COVER-HANDLE,LH,P.WHICover-handle,lh,p.white; |
59441-1081-6F |
US $23.94 |
||
|
59441C
|
59441C
59441-1087-6W COVER-HANDLE,LH,L.GRECover-handle,lh,l.green; |
59441-1087-6W |
US $30.65 |
||
| replacements | |||||
|
59441C
|
59441C
59441-1094-6W
COVER-HANDLE,LH,L.GRE
Cover-handle,lh,l.green; |
59441-1094-6W |
— | ||
|
59441C
|
59441C
92001-1034 BOLT,HEX HEAD,6X10Cover-handle,lh,l.green; |
92001-1034 |
from US $6.49 |
||
|
59441C
|
59441C
92019-008 NUTCover-handle,lh,l.green; |
92019-008 |
from US $2.53 |
||
|
59441C
|
59441C
92150-1291 BOLTCover-handle,lh,l.green; |
92150-1291 |
from US $14.73 |
||
|
59441C
|
59441C
59441-1096-6W COVER-HANDLE,LH,L.GRECover-handle,lh,l.green; |
59441-1096-6W |
US $30.65 |
||
|
59441D
|
59441D
59441-1088-6F SupercededCover-handle,rh,p.white; |
59441-1088-6F |
US $15.68 |
||
| replacement | |||||
|
59441D
|
59441D
59441-1097-6F COVER-HANDLE,RH,P.WHICover-handle,rh,p.white; |
59441-1097-6F |
US $15.68 |
||
|
59441E
|
59441E
59441-1088-6W COVER-HANDLE,RH-GRNCover-handle,rh,l.green; |
59441-1088-6W |
US $21.35 |
||
|
92002
|
92002
92002-1150 BOLT,LEVER SETBolt,lever set; |
92002-1150 |
from US $4.44 |
||
|
92002A
|
92002A
92002-1718 BOLTBolt,lever set; |
92002-1718 |
US $6.55 |
||
|
92007
|
92007
92007-1143 SCREW,CABLE ADJUSTScrew,cable adjust,7mm; |
92007-1143 |
US $27.13 |
||
| replacement | |||||
|
92007
|
92007
46055010 SCREW,CABLE ADJUSTScrew,cable adjust,7mm; |
46055010 |
from US $17.88 |
||
|
92015
|
92015
46056006 NUT,CABLE ADJUST LOCKNut,cable adjust; |
46056006 |
from US $6.02 |
||
|
92015A
|
92015A
92019-008 NUTNut,lock,6mm; |
92019-008 |
from US $2.53 |
||
|
92015B
|
92015B
92019-021
Nut,lock,10m/m
Nut,lock,10mm; |
92019-021 |
— | ||
| replacements | |||||
|
92015B
|
92015B
92210-1184 NUTNut,lock,10mm; |
92210-1184 |
from US $4.09 |
||
|
92015B
|
92015B
92015-1962 NUTNut,lock,10mm; |
92015-1962 |
from US $3.33 |
||
|
92022
|
92022
92022-1088 WASHER,10.2X28X2Washer,10.2x28x2; |
92022-1088 |
from US $2.85 |
||
|
92022B
|
92022B
92022-1737 WASHER |
92022-1737 |
from US $3.17 |
||
|
92037
|
92037
92037-1629 CLAMP,BRAKE HOSEClamp,brake hose; |
92037-1629 |
US $6.18 |
||
|
92043
|
92043
92043-1379 PIN,5X25.5Pin,5x25.5; |
92043-1379 |
US $4.18 |
||
|
92075
|
92075
92075-1776 DAMPER |
92075-1776 |
from US $4.75 |
||
|
92143
|
92143
92027-1965 COLLARCollar,l=4.5; |
92027-1965 |
from US $4.12 |
||
|
130
|
130
130G0830 BOLT-FLANGED,8X30Bolt-flanged,8x30; |
130G0830 |
US $1.42 |
||
| replacements | |||||
|
130
|
130
130CA0830 BOLT-FLANGEDBolt-flanged,8x30; |
130CA0830 |
from US $1.27 |
||
|
130
|
130
130BA0830 BOLT-FLANGED,8X30Bolt-flanged,8x30; |
130BA0830 |
from US $1.43 |
||
|
130A
|
130A
130G0845 BOLT-FLANGEDBolt-flanged,8x45; |
130G0845 |
from US $1.21 |
||
| replacement | |||||
|
130A
|
130A
130BA0845 BOLT-FLANGEDBolt-flanged,8x45; |
130BA0845 |
from US $1.43 |
||
|
214
|
214
214C0518 SCREW-PAN-CROS,5X18 |
214C0518 |
US $25.20 |
||
| replacement | |||||
|
214
|
214
220AB0518 SCREW-PAN-CROS,5X18 |
220AB0518 |
from US $0.79 |
||
|
220
|
220
220C0514
SCREW-PAN-CROSS
|
220C0514 |
— | ||
| replacement | |||||
|
220
|
220
220AB0514 SCREW-PAN-CROSS |
220AB0514 |
from US $1.25 |
||
|
222
|
222
222E0412 SCREW OVL CNTSNK 4X12 |
222E0412 |
from US $0.95 |
||
|
410
|
410
410B0500
W-PLAIN-S
Washer-plain-small,5mm; |
410B0500 |
— | ||
| replacement | |||||
|
410
|
410
410AA0500 W-PLAIN-SWasher-plain-small,5mm; |
410AA0500 |
from US $0.78 |
||
|
550
|
550
550D1210
PIN COTTER 1.2X10
Pin-cotter,1.2x10; |
550D1210 |
— | ||
| replacement | |||||
|
550
|
550
550AA1210 PIN-COTTER,1.2X10Pin-cotter,1.2x10; |
550AA1210 |
from US $1.12 |
||
