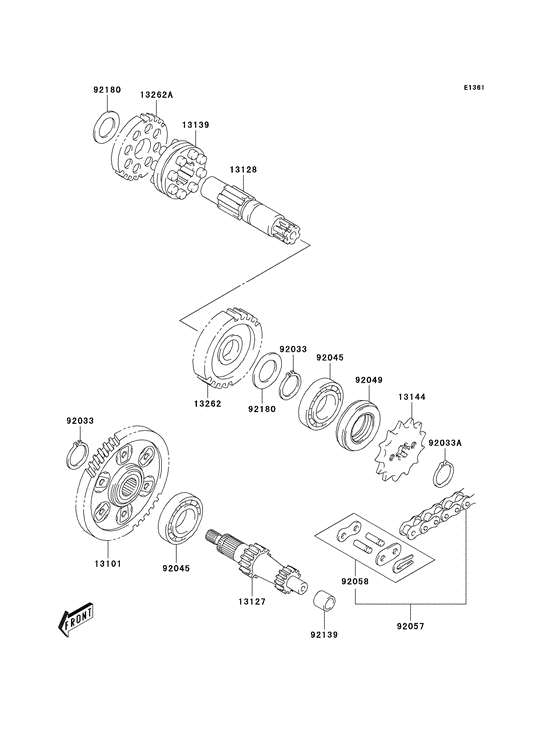

Transmission Diagram Kawasaki KDX50
- Year
- 2003
- Model code
- KDX50-A1
- Sales region
- USA
- Engine Capacity
- 50
- Model
- KDX50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13101
|
13101
13101-S001 GEAR-ASSY,PRIMARY DRIGear-assy,primary driven; |
13101-S001 |
US $284.06 |
||
|
13127
|
13127
13127-S007 SHAFT-TRANSMISSION IN |
13127-S007 |
US $96.82 |
||
|
13128
|
13128
13128-S009 SHAFT-TRANSMISSION OU |
13128-S009 |
US $101.52 |
||
|
13139
|
13139
13139-S003 SHIFTER |
13139-S003 |
US $52.76 |
||
|
13144
|
13144
13144-S007 SPROCKET-OUTPUT,13TSprocket-output,13t; |
13144-S007 |
US $16.54 |
||
|
13262
|
13262
13262-S022 GEAR,OUTPUT LOW,40TGear,output low,40t; |
13262-S022 |
US $73.70 |
||
|
13262A
|
13262A
13262-S023 GEAR,OUTPUT 2ND,29TGear,output 2nd,29t; |
13262-S023 |
US $60.80 |
||
|
92033
|
92033
92033-S026 RING-SNAP,DRIVEN GEARRing-snap,driven gear; |
92033-S026 |
US $1.78 |
||
|
92033A
|
92033A
92033-S027 Ring-snap,engine sproRing-snap,engine sprocket; |
92033-S027 |
US $1.30 |
||
| replacement | |||||
|
92033A
|
92033A
92033-S090 RING-SNAPRing-snap,engine sprocket; |
92033-S090 |
from US $1.09 |
||
|
92045
|
92045
92045-S035 BEARING-BALL,CRANKSHABearing-ball,17x40x12; |
92045-S035 |
US $19.38 |
||
|
92049
|
92049
92049-S028 SEAL-OIL,CRANKSHAFT OSeal-oil,crankshaft oil,lh; |
92049-S028 |
US $7.96 |
||
| replacement | |||||
|
92049
|
92049
92049-S073 SEAL-OIL,CRANKSHAFT OSeal-oil,crankshaft oil,lh; |
92049-S073 |
US $10.23 |
||
|
92057
|
92057
92057-S008 CHAIN,DRIVE 78LJChain,drive 78lj; |
92057-S008 |
US $18.45 |
||
| replacement | |||||
|
92057
|
92057
92057-S021 CHAIN,DRIVE 78LJChain,drive 78lj; |
92057-S021 |
US $21.61 |
||
|
92058
|
92058
92058-S002 JOINT-CHAIN |
92058-S002 |
US $8.55 |
||
|
92139
|
92139
92139-S009 BUSHING,COUNTER SHAFTBushing,counter shaft; |
92139-S009 |
US $4.14 |
||
|
92180
|
92180
92180-S014 SHIM,2ND GEARShim,17x30x1.0; |
92180-S014 |
US $2.52 |
||
