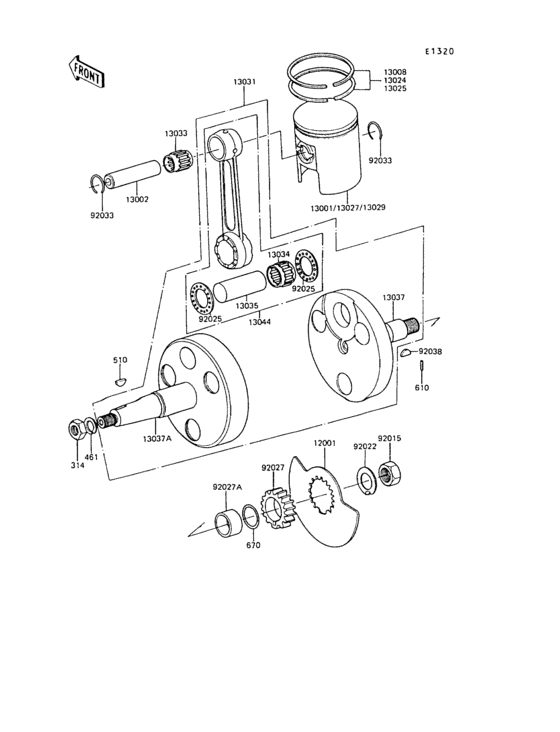

Crankshaft/piston(s) Diagram Kawasaki KE100
- Year
- 1987
- Model code
- KE100-B06
- Sales region
- Europe (General)
- Engine Capacity
- 100
- Frame
- KE100B 017106 - 018000
- Model
- KE100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
314
|
314
314AA1000 NUT-HEX-FINE |
314AA1000 |
from US $1.01 |
||
|
461
|
461
461DA1000 WASHER-SPRING |
461DA1000 |
from US $0.90 |
||
|
510
|
510
510A3200 WOODRUFF KEY |
510A3200 |
from US $3.40 |
||
|
610
|
610
610A0410 PIN DOWEL 4X10 |
610A0410 |
from US $0.79 |
||
|
670
|
670
670B2016 O RING,16MM |
670B2016 |
from US $1.70 |
||
|
12001
|
12001
12002030 VALVE,ROTARY DISC |
12002030 |
from US $13.22 |
||
|
13001
|
13001
13001-1659
Piston-engine,std
|
13001-1659 |
— | ||
|
13002
|
13002
13002-003 PIN-PISTON |
13002-003 |
from US $10.27 |
||
|
13008
|
13008
13008-5043 RING-SET-PISTON, STD |
13008-5043 |
US $48.05 |
||
|
13024
|
13024
13024-5021
Ring-set piston ll,01
|
13024-5021 |
— | ||
|
13025
|
13025
13025-5021 RING-SET,PISTON L,O/S |
13025-5021 |
US $38.14 |
||
|
13027
|
13027
13027-0005
Piston-engine ll,ll,o
|
13027-0005 |
— | ||
|
13029
|
13029
13029-0005 Piston-engine l,l,o/s |
13029-0005 |
US $75.27 |
||
|
13031
|
13031
13036043 CRANK&CONROD ASSY |
13036043 |
from US $365.47 |
||
|
13033
|
13033
13033030 BEARING,SMALL END |
13033030 |
from US $17.57 |
||
|
13034
|
13034
13034034 BEARING,BIG END |
13034034 |
from US $18.66 |
||
|
13035
|
13035
13035025 CRANK PIN |
13035025 |
US $18.82 |
||
|
13037
|
13037
13037-1135 CRANKSHAFT,RH |
13037-1135 |
from US $157.08 |
||
|
13037A
|
13037A
13037-1136
CRANKSHAFT,LH
|
13037-1136 |
— | ||
|
13044
|
13044
13044-5015 CONNECTING ROD SET |
13044-5015 |
from US $118.51 |
||
|
92015
|
92015
92015-006 NUT 12MM |
92015-006 |
from US $3.64 |
||
|
92022
|
92022
92024-003 WASHER LOCK 12MM |
92024-003 |
from US $3.33 |
||
|
92025
|
92025
92025-047 WASHER-SIDE |
92025-047 |
US $6.38 |
||
|
92027
|
92027
92027-1245 COLLAR,ROTARY VALVE |
92027-1245 |
from US $14 |
||
|
92027A
|
92027A
92027-285 COLLAR,CRANKSHAFT |
92027-285 |
from US $6.54 |
||
|
92033
|
92033
92036-003 CIRCLIP PISTON PIN |
92036-003 |
from US $0.99 |
||
|
92038
|
92038
92038-003 WOODRUFF KEY PRY PINI |
92038-003 |
from US $3.17 |
