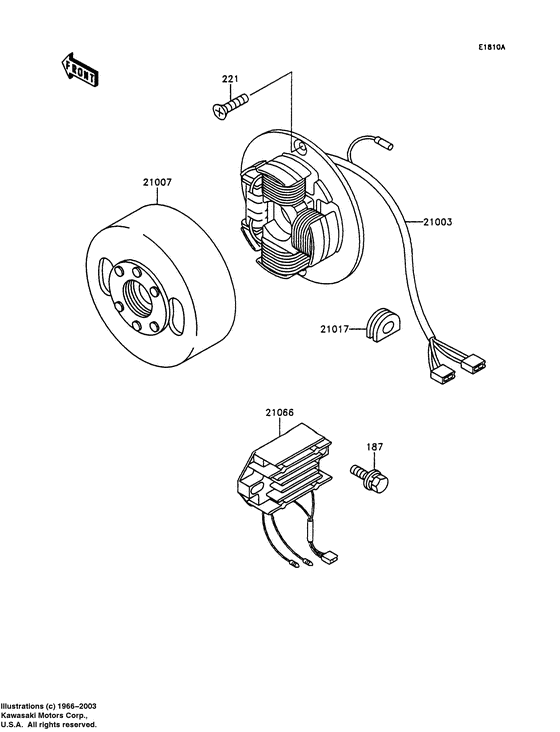

Generator (Ke100-b15) Diagram Kawasaki KE100
- Year
- 1996
- Model code
- KE100-B15
- Sales region
- USA
- Engine Capacity
- 100
- Model
- KE100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
187
|
187
187B0622 BOLT-UPSET-WSP |
187B0622 |
from US $1.43 |
||
| replacement | |||||
|
187
|
187
187AA0622 BOLT-UPSET-WSP |
187AA0622 |
from US $1.01 |
||
|
221
|
221
221B0614 SCREW-CSK-CROS,6X14Screw-csk-cros,6x14; |
221B0614 |
from US $0.95 |
||
| replacement | |||||
|
221
|
221
221AA0614 SCREW-CSK-CROS,6X14Screw-csk-cros,6x14; |
221AA0614 |
from US $0.94 |
||
|
21003
|
21003
21003-1295
STATOR
|
21003-1295 |
— | ||
|
21007
|
21007
21007-1301
ROTOR,MAGNETO
Rotor,magneto; |
21007-1301 |
— | ||
|
21017
|
21017
21017002 GROMMET WIRING HARN |
21017002 |
from US $3.31 |
||
|
21066
|
21066
21066-1103 REGULATOR-VOLTAGE |
21066-1103 |
US $224.98 |
||
