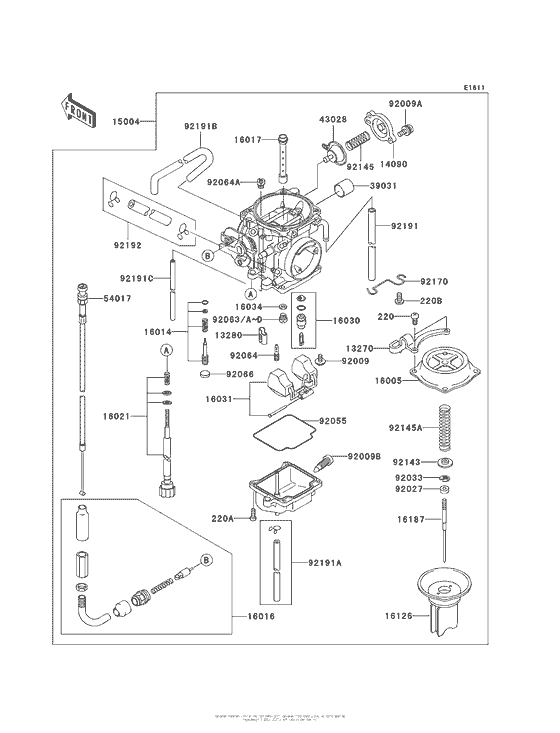

Carburetor Diagram Kawasaki KL250 KL250 Super Sherpa
- Year
- 2010
- Model code
- KL250GAF
- Sales region
- USA
- Engine Capacity
- 250
- Model
- KL250 Super Sherpa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220AA0410 SCREW-PAN CROS,4X10 |
220AA0410 |
from US $0.79 |
||
|
220A
|
220A
220AA0412 SCREW-PAN-CROSS |
220AA0412 |
from US $0.58 |
||
|
220B
|
220B
220AA0510 SCREW-PAN-CROSS,5X10 |
220AA0510 |
from US $0.48 |
||
|
13270
|
13270
13270-1907 PLATE,CHAMBER TOP |
13270-1907 |
from US $40.09 |
||
|
13280
|
13280
13280-1077 HOLDER |
13280-1077 |
from US $2.22 |
||
|
14090
|
14090
14090-1873 COVER,AIR CUT VALVE |
14090-1873 |
from US $37.85 |
||
|
15004
|
15004
15004-0070 CARBURETOR-ASSY,BST34 |
15004-0070 |
from US $656.91 |
||
|
16005
|
16005
16005-1080 TOP-CHAMBER,MIXING |
16005-1080 |
from US $27.23 |
||
|
16014
|
16014
16014-1095 SCREW-PILOT AIR |
16014-1095 |
from US $13.46 |
||
|
16016
|
16016
16016-1111 PLUNGER,STARTER |
16016-1111 |
from US $37.85 |
||
|
16017
|
16017
16017-1410 JET-NEEDLE,P-3M |
16017-1410 |
from US $36.39 |
||
|
16021
|
16021
16021-1215 SCREW-THROTTLE STOP |
16021-1215 |
from US $29.47 |
||
|
16030
|
16030
16030-1085 VALVE-FLOAT |
16030-1085 |
from US $34.26 |
||
|
16031
|
16031
16031-1091 FLOAT |
16031-1091 |
from US $36.20 |
||
|
16034
|
16034
16034-001 WASHER MAIN JET |
16034-001 |
from US $3.01 |
||
|
16126
|
16126
16126-1347 VALVE,VACUUM |
16126-1347 |
from US $137.48 |
||
|
16187
|
16187
16187-1124 NEEDLE-JET,4C16 |
16187-1124 |
from US $27.99 |
||
|
39031
|
39031
39031-1007 CAP-END,CARBURETOR |
39031-1007 |
from US $8.55 |
||
|
43028
|
43028
43028-1026 DIAPHGRAM,COASTING RC |
43028-1026 |
from US $109.66 |
||
|
54017
|
54017
54017-1196 CABLE-STARTER |
54017-1196 |
from US $21.23 |
||
|
92009
|
92009
92009-1810 SCREW |
92009-1810 |
from US $2.53 |
||
|
92009A
|
92009A
92009-1811 SCREW |
92009-1811 |
from US $2.53 |
||
|
92009B
|
92009B
92009-1826 SCREW,DRAIN |
92009-1826 |
from US $3.33 |
||
|
92027
|
92027
92027-1103 RING,JET NEEDLE |
92027-1103 |
from US $4.12 |
||
|
92033
|
92033
92033-1290 RING-SNAP |
92033-1290 |
from US $2.69 |
||
|
92055
|
92055
92055-1575 RING-O,FLOAT CHAMBER |
92055-1575 |
from US $11.40 |
||
|
92063
|
92063
92063-1100 JET-MAIN,#A127.5 |
92063-1100 |
from US $8.71 |
||
|
92063A
|
92063A
92063-1101 JET-MAIN,#A122.5 |
92063-1101 |
from US $8.71 |
||
|
92063B
|
92063B
92063-1102 JET-MAIN,#A125 |
92063-1102 |
from US $8.71 |
||
|
92063C
|
92063C
92063-1103 JET-MAIN,#A130 |
92063-1103 |
from US $8.71 |
||
|
92063D
|
92063D
92063-1104 JET-MAIN,#A132.5 |
92063-1104 |
from US $8.71 |
||
|
92064
|
92064
92064-1183 JET-PILOT,#A17.5 |
92064-1183 |
from US $10.45 |
||
|
92064A
|
92064A
92064-1205 JET-PILOT,#90 |
92064-1205 |
from US $10.45 |
||
|
92066
|
92066
92066-1501 PLUG,PILOT AIR SCREW |
92066-1501 |
from US $1.90 |
||
|
92143
|
92143
92143-1986 COLLAR |
92143-1986 |
from US $5.86 |
||
|
92145
|
92145
92145-1103 SPRING,AIR CUT VALVE |
92145-1103 |
from US $8.24 |
||
|
92145A
|
92145A
92145-1104 SPRING,VACUUM VALVE |
92145-1104 |
from US $14.57 |
||
|
92170
|
92170
92170-1816 CLAMP |
92170-1816 |
from US $5.86 |
||
|
92191
|
92191
92191-1199 TUBE,5X8X400 |
92191-1199 |
from US $13.78 |
||
|
92191A
|
92191A
92191-1200 TUBE,3X7X350 |
92191-1200 |
from US $6.97 |
||
|
92191B
|
92191B
92191-1202 TUBE,L=290 |
92191-1202 |
from US $13.78 |
||
|
92191C
|
92191C
92191-1203 TUBE,3X5X350 |
92191-1203 |
from US $8.08 |
||
|
92192
|
92192
92192-0857 TUBE |
92192-0857 |
from US $35.93 |
