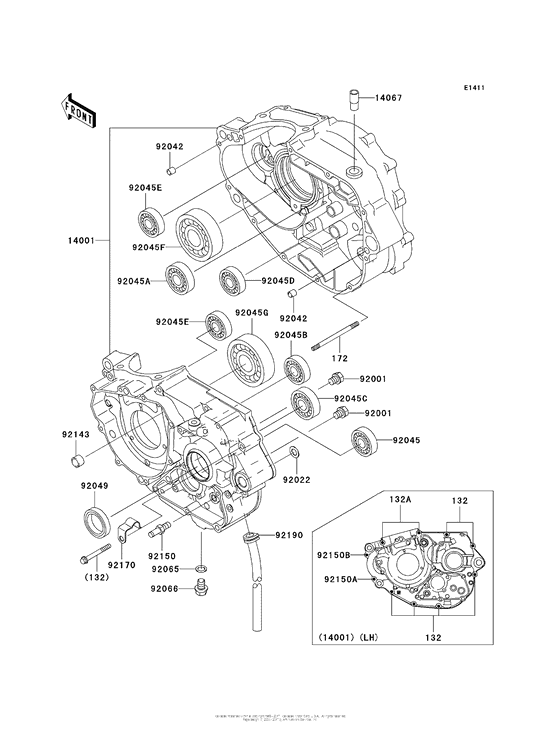

Crankcase Diagram Kawasaki KL250 KL250 Super Sherpa
- Year
- 2010
- Model code
- KL250GAF
- Sales region
- USA
- Engine Capacity
- 250
- Model
- KL250 Super Sherpa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BD0650 BOLT-FLANGED-SMALL |
132BD0650 |
from US $1.27 |
||
|
132A
|
132A
132BD0670 BOLT-FLANGED-SMALL |
132BD0670 |
from US $1.56 |
||
|
172
|
172
172BA0680 BOLT-STUD |
172BA0680 |
from US $1.43 |
||
|
14001
|
14001
14001-1223 SET-CRANKCASE |
14001-1223 |
from US $719.71 |
||
|
14067
|
14067
14067006 BREATHER JOINT |
14067006 |
from US $15.05 |
||
|
92001
|
92001
92001-1829 BOLT,W/WASHER,6X14 |
92001-1829 |
from US $2.53 |
||
|
92022
|
92022
92022-1415 WASHER,10.2X18X1.0,SK |
92022-1415 |
from US $2.85 |
||
|
92042
|
92042
92042-007 PIN-DOWEL |
92042-007 |
from US $4.44 |
||
|
92045
|
92045
92045-036 BEARING,BALL,#6905 |
92045-036 |
from US $21.38 |
||
|
92045A
|
92045A
92045-1041 BEARING-BALL |
92045-1041 |
from US $22.59 |
||
|
92045B
|
92045B
92045-1287 BEARING-BALL,TMB203LU |
92045-1287 |
from US $21.09 |
||
|
92045C
|
92045C
92045-1288 BEARING-BALL,TMB205LU |
92045-1288 |
from US $23.04 |
||
|
92045D
|
92045D
92045-1291 BEARING-BALL,TMB203 |
92045-1291 |
from US $19.01 |
||
|
92045E
|
92045E
92045-1346 BEARING-BALL,TMB302JR |
92045-1346 |
from US $19.09 |
||
|
92045F
|
92045F
92045-1347 BEARING-BALL,TMB306JR |
92045-1347 |
from US $26.93 |
||
|
92045G
|
92045G
92045-1348 BEARING-BALL,3TM-6207 |
92045-1348 |
from US $26.93 |
||
|
92049
|
92049
92049-1577 SEAL-OIL |
92049-1577 |
from US $7.92 |
||
|
92065
|
92065
92065-058 GASKET |
92065-058 |
from US $3.37 |
||
|
92066
|
92066
92066-1241 DRAIN PLUG |
92066-1241 |
from US $3.96 |
||
|
92143
|
92143
92143-1263 COLLAR |
92143-1263 |
from US $3.01 |
||
|
92150
|
92150
92150-1803 BOLT,RETURN SPRING |
92150-1803 |
from US $6.02 |
||
|
92150A
|
92150A
92150-1874 BOLT,SOCKET,6X50 |
92150-1874 |
from US $3.64 |
||
|
92150B
|
92150B
92150-1875 BOLT,SOCKET,6X35 |
92150-1875 |
from US $3.17 |
||
|
92170
|
92170
92170-1803 CLAMP,HARNESS |
92170-1803 |
from US $3.48 |
||
|
92190
|
92190
92190-1493 TUBE |
92190-1493 |
from US $7.92 |
