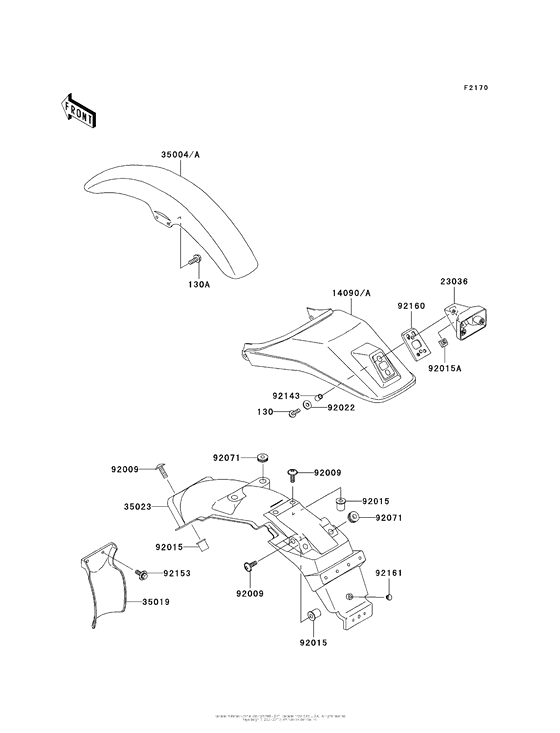

Fenders Diagram Kawasaki KL250 KL250 Super Sherpa
- Year
- 2010
- Model code
- KL250GAF
- Sales region
- USA
- Engine Capacity
- 250
- Model
- KL250 Super Sherpa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0520 BOLT-FLANGED,5X20 |
130BA0520 |
from US $0.63 |
||
|
130A
|
130A
130BA0616 BOLT-FLANGED,6X16 |
130BA0616 |
from US $0.79 |
||
|
14090
|
14090
14090-1796-6C
COVER,SEAT,EBONY
|
14090-1796-6C |
— | ||
|
23036
|
23036
23036-1146 BRACKET-TAIL LAMP |
23036-1146 |
from US $40.12 |
||
|
35004
|
35004
35004-1365-6C FENDER-FRONT,LOW TYPE |
35004-1365-6C |
from US $106.04 |
||
|
35019
|
35019
35019-1345 FLAP,RR FENDER,FR |
35019-1345 |
from US $17.90 |
||
|
35023
|
35023
35023-1530 FENDER-REAR |
35023-1530 |
from US $77.79 |
||
|
92009
|
92009
92009-3805 SCREW,6X18 |
92009-3805 |
from US $2.69 |
||
|
92015
|
92015
92015-1700 NUT |
92015-1700 |
from US $6.57 |
||
|
92015A
|
92015A
92015-1798 NUT |
92015-1798 |
from US $3.80 |
||
|
92022
|
92022
92022-263 WASHER,PLAIN,6MM |
92022-263 |
from US $2.19 |
||
|
92071
|
92071
92071-056 GROMMET |
92071-056 |
from US $3.17 |
||
|
92143
|
92143
92143-1984 COLLAR |
92143-1984 |
from US $2.69 |
||
|
92153
|
92153
92153-0863 BOLT,6X16 |
92153-0863 |
from US $0.95 |
||
|
92160
|
92160
92160-1826 DAMPER,TAIL LAMP BRACKET |
92160-1826 |
from US $5.86 |
||
|
92161
|
92161
92161-1084 DAMPER |
92161-1084 |
from US $1.58 |
