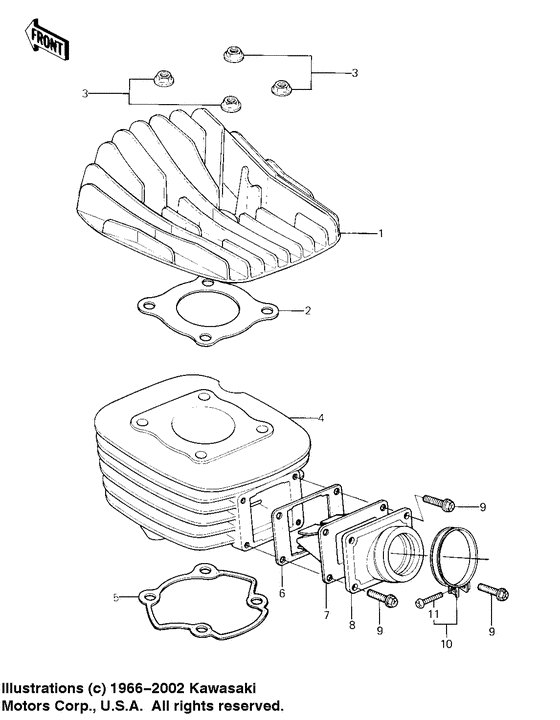

Cylinder head/cylinder/reed valve ('81 kx80-c1) Diagram Kawasaki KX80 KX80
- Year
- 1981
- Model code
- KX80-C1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KX80-C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11001-1247 HEAD-CYLINDER |
11001-1247 |
US $191.11 |
||
|
2
|
2
11004-1031 GASKET,CYLINDER HEADGasket,cylinder head; |
11004-1031 |
US $9.27 |
||
|
3
|
3
92015-1014 NUT,8M/MNut,8m/m; |
92015-1014 |
from US $0.83 |
||
|
4
|
4
11005-1182 CYLINDER-ENGINE |
11005-1182 |
US $675.97 |
||
|
5
|
5
11009-1200 GASKET,CYLINDER BASEGasket,cylinder base; |
11009-1200 |
US $5.67 |
||
|
6
|
6
11009-1109
GASKET, REED VALVE
Gasket,reed valve; |
11009-1109 |
— | ||
| replacement | |||||
|
6
|
6
11060-1563
GASKET, REED VALVE
Gasket,reed valve; |
11060-1563 |
— | ||
|
7
|
7
12021-1010 VALVE ASSY REEDO |
12021-1010 |
US $122.69 |
||
|
8
|
8
12023-1020
HOLDER-VALVE-REED
|
12023-1020 |
— | ||
|
9
|
9
130G0620
BOLT-FLANGED,6X20
Bolt,flanged,6x20; |
130G0620 |
— | ||
| replacements | |||||
|
9
|
9
130CA0620 BOLT-FLANGED,6X20Bolt,flanged,6x20; |
130CA0620 |
from US $1.11 |
||
|
9
|
9
130BA0620 BOLT-FLANGED,6X20Bolt,flanged,6x20; |
130BA0620 |
from US $1.11 |
||
|
10
|
10
92037-1172 CLAMP |
92037-1172 |
from US $6.65 |
||
|
11
|
11
220B0425 SCREW-PAN CROS,4X25Screw pan head 4x25; |
220B0425 |
US $0.43 |
||
| replacement | |||||
|
11
|
11
220AA0425 SCREW-PAN CROS,4X25Screw pan head 4x25; |
220AA0425 |
from US $0.78 |
||
