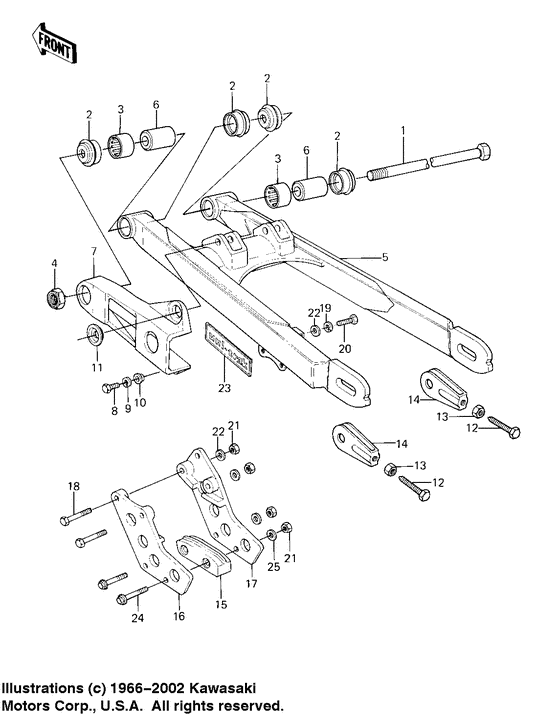

Swing arm ('81 kx80-c1) Diagram Kawasaki KX80 KX80
- Year
- 1981
- Model code
- KX80-C1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KX80-C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33032-1017 SHAFT,SWING ARMShaft,swing arm; |
33032-1017 |
US $38.50 |
||
|
2
|
2
11012-1150
CAP,SWING ARM
Cap,swing arm; |
11012-1150 |
— | ||
|
3
|
3
92046-1162 BEARING-NEEDLE |
92046-1162 |
from US $17.42 |
||
|
4
|
4
92019-011
NUT-LOCK,14MM
Nut-lock,14mm; |
92019-011 |
— | ||
|
5
|
5
33001-1074 ARM,SWINGArm,swing; |
33001-1074 |
US $204.34 |
||
|
6
|
6
42036-1042 SLEEVE,CHAIN GUIDESleeve,chain guide; |
42036-1042 |
US $11.25 |
||
|
7
|
7
12053-1053
GUIDE,CHAIN
Guide,chain; |
12053-1053 |
— | ||
|
8
|
8
112G0616
BOLT-UPSET,6X16
Bolt-upset,6x16; |
112G0616 |
— | ||
| replacement | |||||
|
8
|
8
112BA0616 BOLT-UPSET,6X16Bolt-upset,6x16; |
112BA0616 |
from US $0.86 |
||
|
9
|
9
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
9
|
9
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
10
|
10
92027-1260 COLLAR |
92027-1260 |
from US $3.64 |
||
|
11
|
11
92027-1332 COLLAR,CHAIN GUIDECollar,chain guide; |
92027-1332 |
US $3.33 |
||
|
12
|
12
92001-1463 BOLT,6X38Bolt,6x38; |
92001-1463 |
from US $2.85 |
||
|
13
|
13
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
13
|
13
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
14
|
14
33040-1009
ADJUSTER-CHAIN
Adjuster,chain; |
33040-1009 |
— | ||
| replacement | |||||
|
14
|
14
33040-1055
ADJUSTER-CHAIN
Adjuster,chain; |
33040-1055 |
— | ||
|
15
|
15
12053-1057
GUIDE,CHAIN
Guide,chain; |
12053-1057 |
— | ||
|
16
|
16
55020-1047
GUARD,CHAIN
Guard,chain; |
55020-1047 |
— | ||
|
17
|
17
55020-1055 GUARD,CHAINGuard,chain; |
55020-1055 |
US $24.68 |
||
|
18
|
18
112G0645
BOLT-UPSET
|
112G0645 |
— | ||
|
19
|
19
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
19
|
19
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
20
|
20
112G0616
BOLT-UPSET,6X16
Bolt-upset,6x16; |
112G0616 |
— | ||
| replacement | |||||
|
20
|
20
112BA0616 BOLT-UPSET,6X16Bolt-upset,6x16; |
112BA0616 |
from US $0.86 |
||
|
21
|
21
92019-008 NUT |
92019-008 |
from US $2.53 |
||
|
22
|
22
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
22
|
22
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
23
|
23
56018-1157
MARK
|
56018-1157 |
— | ||
|
24
|
24
130B0640 BOLT-FLANGED,6X40Bolt,flanged,6x40; |
130B0640 |
US $1.03 |
||
| replacements | |||||
|
24
|
24
130BA0640 BOLT-FLANGED,6X40Bolt,flanged,6x40; |
130BA0640 |
from US $0.79 |
||
|
24
|
24
130AA0640 BOLT-FLANGED,6X40Bolt,flanged,6x40; |
130AA0640 |
from US $1.14 |
||
|
25
|
25
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
25
|
25
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
