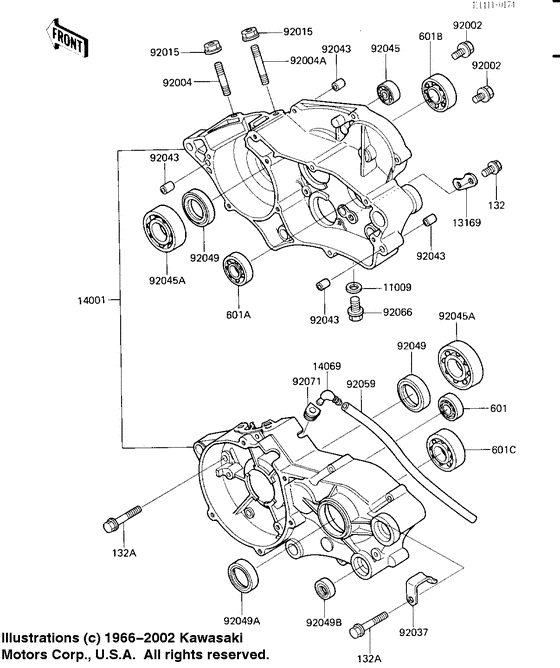

Crankcase Diagram Kawasaki KX80 KX80 Big Wheel
- Year
- 1987
- Model code
- KX80-J2
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KX80 Big Wheel
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
92065-058 GASKETGasket,10.5x16x1,drain plug; |
92065-058 |
from US $3.37 |
||
|
13169
|
13169
13169012 PLATE,CHANGE DRUMPlate,change drum; |
13169012 |
from US $11.72 |
||
|
14001
|
14001
14001-5242 SET-CRANKCASE |
14001-5242 |
US $368.42 |
||
|
14069
|
14069
14069-002
Breather
Breather,crankcase; |
14069-002 |
— | ||
| replacements | |||||
|
14069
|
14069
14069-1062 BREATHERBreather,crankcase; |
14069-1062 |
from US $16.32 |
||
|
14069
|
14069
14069-1001 BREATHERBreather,crankcase; |
14069-1001 |
US $21.40 |
||
|
92002
|
92002
92002-1659 BOLTBolt,6x16; |
92002-1659 |
from US $3.01 |
||
|
92004
|
92004
92004-1008
STUD
Stud,8x25; |
92004-1008 |
— | ||
| replacement | |||||
|
92004
|
92004
172BA0825 STUDStud,8x25; |
172BA0825 |
from US $2.95 |
||
|
92004A
|
92004A
92004-1009 STUD,8X35Stud,8x35; |
92004-1009 |
from US $3.96 |
||
|
92015
|
92015
92015-1143 NUT-8MMNut,8mm; |
92015-1143 |
from US $0.99 |
||
|
92037
|
92037
92037-1318 CLAMP,HARNESSClamp,harness; |
92037-1318 |
from US $4.12 |
||
|
92043
|
92043
92042-007 PIN-DOWELPin,dowel,6.3x8x14; |
92042-007 |
from US $4.44 |
||
|
92045
|
92045
92045-1010 Bearing,ball 626Bearing-ball,#626; |
92045-1010 |
US $6.43 |
||
| replacement | |||||
|
92045
|
92045
92045-1304 BEARING-BALLBearing-ball,#626; |
92045-1304 |
from US $12.21 |
||
|
92045A
|
92045A
92045-1059 BEARING-BALL,R-6304C3Bearing-ball,r-6304c3; |
92045-1059 |
from US $21.38 |
||
|
92049
|
92049
92049-1188 SEAL-OIL,SD20407GSSeal-oil,sd20407gs; |
92049-1188 |
from US $11.56 |
||
|
92049A
|
92049A
92049-1292 SEAL-OIL,TC25375Seal-oil,tc25375; |
92049-1292 |
from US $6.81 |
||
|
92049B
|
92049B
92051-005 OIL SEAL,TB13225.5Seal-oil,tb13225.5; |
92051-005 |
from US $6.57 |
||
|
92059
|
92059
92059-1074 Tube,6x9x280Tube,6x9x280; |
92059-1074 |
US $9.76 |
||
| replacement | |||||
|
92059
|
92059
92059-1939 TUBETube,6x9x280; |
92059-1939 |
from US $10.43 |
||
|
92066
|
92066
92066-1241 DRAIN PLUGPlug,drain; |
92066-1241 |
from US $3.96 |
||
|
92071
|
92071
92071-042 GROMMETGrommet,breather; |
92071-042 |
from US $2.85 |
||
|
132
|
132
132G0612
BOLT-FLANGED-SMALL,6X
|
132G0612 |
— | ||
| replacement | |||||
|
132
|
132
132BA0612 BOLT-FLANGED-SMALL,6X |
132BA0612 |
from US $0.79 |
||
|
132A
|
132A
132G0635
BOLT-FLANGED-SMALL,6X
|
132G0635 |
— | ||
| replacement | |||||
|
132A
|
132A
132BA0635 BOLT-FLANGED-SMALL,6X35 |
132BA0635 |
from US $1.25 |
||
|
601
|
601
601A6001 BEARING-BALL |
601A6001 |
from US $9.75 |
||
|
601A
|
601A
601A6202 BEARING BALL #6202Bearing-ball,#6202; |
601A6202 |
US $7.67 |
||
| replacement | |||||
|
601A
|
601A
601B6202 BEARING BALL #6202Bearing-ball,#6202; |
601B6202 |
from US $10.03 |
||
|
601B
|
601B
601A6203 BEARING BALL #6203Bearing-ball,#6203; |
601A6203 |
from US $9.03 |
||
| replacement | |||||
|
601B
|
601B
601B6203 BEARING BALL #6203Bearing-ball,#6203; |
601B6203 |
from US $9.03 |
||
|
601C
|
601C
601B6204 BEARING BALL #6204Bearing-ball,#6204c3; |
601B6204 |
from US $13.94 |
||
