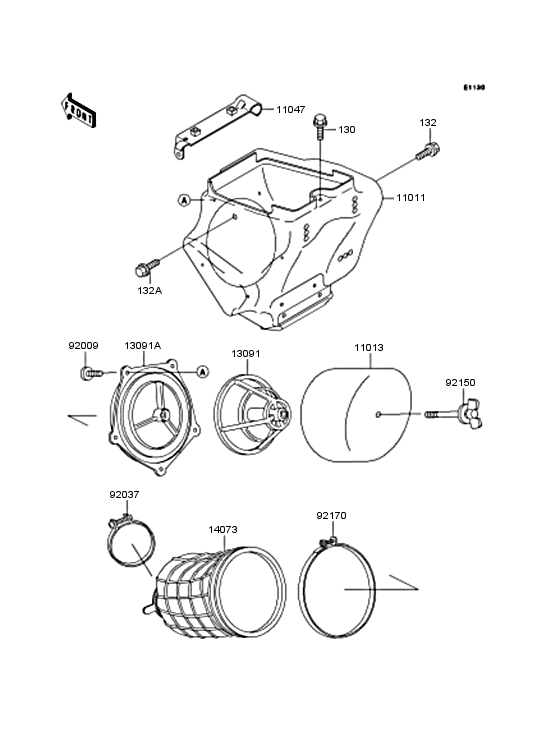

エアーフィルター Diagram Kawasaki KX80 KX80
- Year
- 1991
- Colour
- Lime Green (7F)
- Model code
- KX80-S1
- Sales region
- Japan
- Engine Capacity
- 80
- Frame
- KX080S 000001 -
- Engine
- KX080SE 000001 -
- Model
- KX80-S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130G0608 BOLT-FLANGEDボルト(ツバツキ) |
130G0608 |
from US $0.43 |
||
| replacement | |||||
|
130
|
130
130BA0608 BOLT-FLANGEDボルト(ツバツキ) |
130BA0608 |
from US $1 |
||
|
132
|
132
132G0614
BOLT-FLANGED-SMALL,6X
ボルト(コガタツバツキ) |
132G0614 |
— | ||
| replacement | |||||
|
132
|
132
132BA0614 BOLT-FLANGED-SMALL,6Xボルト(コガタツバツキ) |
132BA0614 |
from US $0.79 |
||
|
132A
|
132A
132G0620
BOLT-FLANGED-SMALL,6X
ボルト(コガタツバツキ) |
132G0620 |
— | ||
| replacement | |||||
|
132A
|
132A
132BA0620 BOLT-FLANGED-SMALL,6X20ボルト(コガタツバツキ) |
132BA0620 |
from US $1.43 |
||
|
11011
|
11011
11011-1342 CASE-AIR FILTERケ-ス(エアフイルタ) |
11011-1342 |
US $145.41 |
||
|
11013
|
11013
11013-1201 Element-air filterエレメント(エアフイルタ) |
11013-1201 |
from US $32.64 |
||
|
11047
|
11047
11047-1234 ブラケツト，イグナイタブラケツト，イグナイタ |
11047-1234 |
US $19.67 |
||
| replacements | |||||
|
11047
|
11047
11047-1603
BRACKET,IGNITER
ブラケツト，イグナイタ |
11047-1603 |
— | ||
|
11047
|
11047
11047-1361
BRACKET,IGNITER
ブラケツト，イグナイタ |
11047-1361 |
— | ||
|
13091
|
13091
13091-1696 HOLDER,ELEMENTホルダ，エレメント |
13091-1696 |
from US $19.64 |
||
|
13091A
|
13091A
13091-1697 HOLDERホルダ |
13091-1697 |
from US $21.84 |
||
|
14073
|
14073
14073-1448
DUCT,AIR FILTER
ダクト，エア フイルタ |
14073-1448 |
— | ||
| replacement | |||||
|
14073
|
14073
14073-1717
DUCT,AIR FILTER
ダクト，エア フイルタ |
14073-1717 |
— | ||
|
92009
|
92009
92009-1635 SCREW,TAPPING,5X14スクリユ-，タツピング，5X14 |
92009-1635 |
from US $2.30 |
||
| replacement | |||||
|
92009
|
92009
92172-0006 SCREW,TAPPING,5X14スクリユ-，タツピング，5X14 |
92172-0006 |
from US $1.27 |
||
|
92037
|
92037
92037-1486 CLAMP,55MMクランプ，55MM |
92037-1486 |
from US $5.54 |
||
|
92150
|
92150
92150-1377 BOLT,WINGボルト，ウイング |
92150-1377 |
US $7.60 |
||
| replacement | |||||
|
92150
|
92150
92150-1565 BOLT,WINGボルト，ウイング |
92150-1565 |
from US $6.18 |
||
|
92170
|
92170
92170-1194 CLAMP,126MMクランプ，126MM |
92170-1194 |
from US $14.26 |
||
