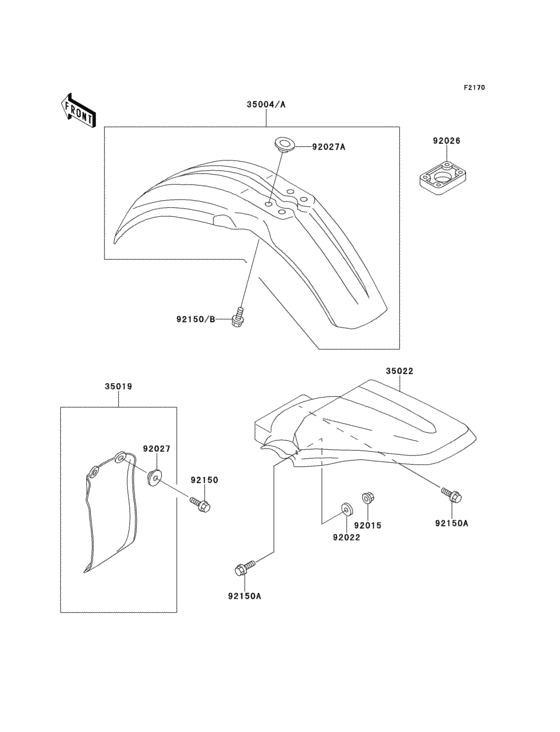

Fender Diagram Kawasaki KX80 KX80
- Year
- 1991
- Colour
- Lime Green (7F)
- Model code
- KX80-V1
- Sales region
- Europe (General)
- Engine Capacity
- 80
- Model
- KX80-V
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35019
|
35019
35019-1212 FLAP,REAR FENDER |
35019-1212 |
from US $21.84 |
||
|
35022
|
35022
35022-1263-6W
Fender-comp-rear,l.gr
|
35022-1263-6W |
— | ||
| replacement | |||||
|
35022
|
35022
35022-1353-6W FENDER-COMP-REAR,L.GR |
35022-1353-6W |
US $45.03 |
||
|
92015
|
92015
92015-1339 NUT,LOCK,FLANGED,6MM |
92015-1339 |
from US $1.84 |
||
|
92022
|
92022
92022-125
WASHER 6.5X20X1.6T
|
92022-125 |
— | ||
| replacement | |||||
|
92022
|
92022
92200-0283 WASHER,6.5X20X1.6 |
92200-0283 |
from US $0.72 |
||
|
92027
|
92027
92027-1757 COLLAR |
92027-1757 |
from US $3.01 |
||
|
92027A
|
92027A
92027-1936 COLLAR,FRONT FENDER |
92027-1936 |
from US $3.64 |
||
|
92150
|
92150
92150-1339
BOLT
|
92150-1339 |
— | ||
| replacement | |||||
|
92150
|
92150
92150-1892 BOLT |
92150-1892 |
from US $3.90 |
||
|
92150A
|
92150A
92150-1481 BOLT,FLANGED,6X22 |
92150-1481 |
from US $2.69 |
||
