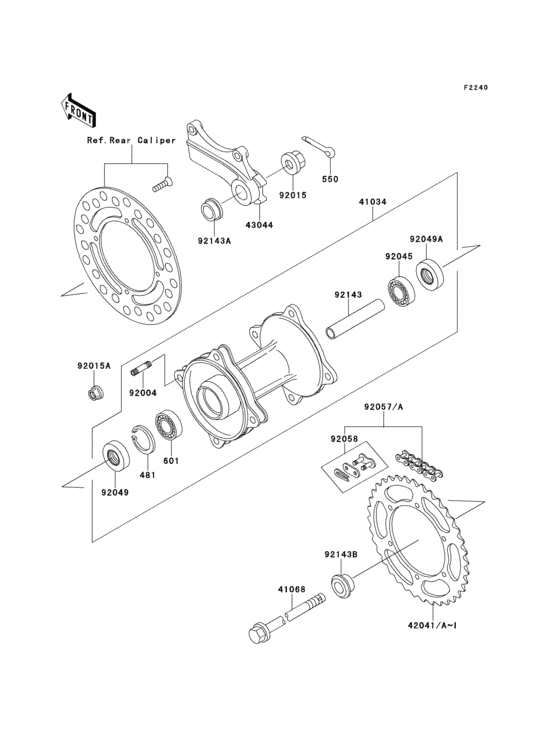

Rear hub Diagram Kawasaki KX80 KX80
- Year
- 1991
- Colour
- Lime Green (7F)
- Model code
- KX80-V1
- Sales region
- Europe (General)
- Engine Capacity
- 80
- Model
- KX80-V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
481
|
481
481J3700 CIRCLIP.37MM |
481J3700 |
from US $1.58 |
||
|
550
|
550
550D2520 PIN COTTER 2.5X20 |
550D2520 |
from US $1.27 |
||
| replacement | |||||
|
550
|
550
550AA2520 PIN-COTTER,2.5X20 |
550AA2520 |
from US $0.63 |
||
|
601
|
601
601B6301UU BEARING-BALL,#6301UUC |
601B6301UU |
from US $20.75 |
||
|
41034
|
41034
41034-1194 DRUM-ASSY,REAR BRAKE |
41034-1194 |
from US $294.89 |
||
|
41068
|
41068
41068-1302 AXLE,RR |
41068-1302 |
US $31.27 |
||
|
42041A
|
42041A
42041-1223 SPROCKET-HUB,54T |
42041-1223 |
from US $61.43 |
||
|
42041F
|
42041F
42041-1245 SPROCKET-HUB,52T |
42041-1245 |
from US $63.88 |
||
|
42041G
|
42041G
42041-1246 SPROCKET-HUB,53T |
42041-1246 |
from US $63.88 |
||
|
42041H
|
42041H
42041-1247 SPROCKET-HUB,55T |
42041-1247 |
from US $61.43 |
||
|
42041I
|
42041I
42041-1248 SPROCKET-HUB |
42041-1248 |
from US $61.43 |
||
|
43044
|
43044
43044-1073 HOLDER-COMP-CALIPER |
43044-1073 |
from US $100.83 |
||
|
92004
|
92004
92004-1183 STUD |
92004-1183 |
from US $3.17 |
||
|
92015
|
92015
92015-1433 NUT,12MM |
92015-1433 |
from US $5.54 |
||
|
92015A
|
92015A
92015-1668 NUT,FLANGED,LOCK,8MM |
92015-1668 |
from US $2.85 |
||
|
92045
|
92045
92045-1062 BEARING-BALL,TMB201LL |
92045-1062 |
from US $21.23 |
||
|
92049
|
92049
92049-1096 SEAL-OIL,DD20377 |
92049-1096 |
from US $10.61 |
||
|
92049A
|
92049A
92049-1290 SEAL-OIL,DC17323.5 |
92049-1290 |
from US $6.18 |
||
|
92057A
|
92057A
92057-1315 CHAIN,DRIVE,DID420DS2 |
92057-1315 |
US $110.65 |
||
| replacements | |||||
|
92057A
|
92057A
92057-1497 CHAIN,DRIVE,DID420DS2 |
92057-1497 |
from US $85.58 |
||
|
92057A
|
92057A
92057-0847 Chain,Drive,Did420Ds3 |
92057-0847 |
from US $96.19 |
||
|
92058
|
92058
92058-1066 JOINT-CHAIN |
92058-1066 |
from US $9.98 |
||
| replacement | |||||
|
92058
|
92058
92058-1086 JOINT-CHAIN,DRIVE |
92058-1086 |
from US $8.24 |
||
|
92143
|
92143
92143-1282 COLLAR,12X17.3X107.5 |
92143-1282 |
from US $17.33 |
||
|
92143A
|
92143A
92143-1284 COLLAR,REAR AXLE,L=12 |
92143-1284 |
from US $18.69 |
||
|
92143B
|
92143B
92143-1286 COLLAR,REAR AXLE,L=14 |
92143-1286 |
from US $19.30 |
||
