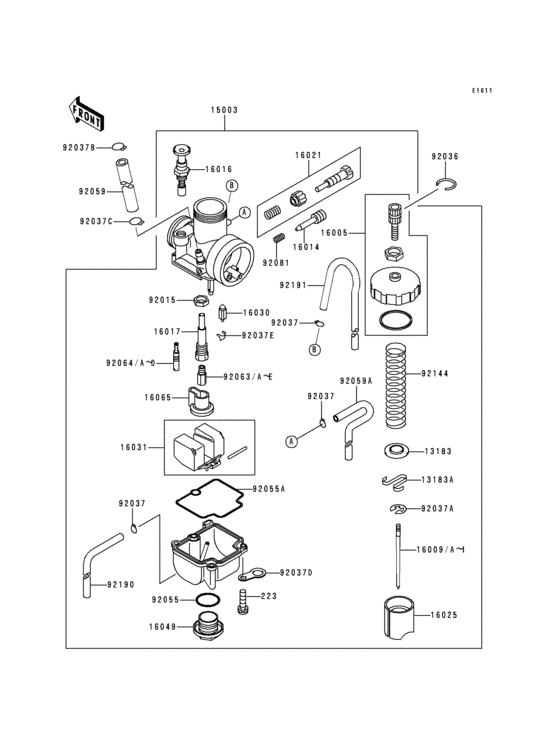

Carburetor(1/2) Diagram Kawasaki KX80 KX80-II
- Year
- 1999
- Colour
- Lime Green (7F)
- Model code
- KX80-X2
- Sales region
- Australia
- Engine Capacity
- 80
- Model
- KX80-X (KX80-II)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
223
|
223
223C0416
SCREW-PAN-WS-CROS
|
223C0416 |
— | ||
| replacement | |||||
|
223
|
223
223AB0416 SCREW-PAN-WS-CROS |
223AB0416 |
from US $0.95 |
||
|
13183
|
13183
13183-1162 PLATE |
13183-1162 |
from US $8.40 |
||
|
13183A
|
13183A
13183-1250 PLATE,THROTTLE |
13183-1250 |
US $12.51 |
||
|
15003
|
15003
15003-1413 Carburetor-assy |
15003-1413 |
US $200.38 |
||
| replacement | |||||
|
15003
|
15003
15003-1747
CARBURETOR-ASSY
|
15003-1747 |
— | ||
|
16005
|
16005
16005-1077 TOP-CHAMBER |
16005-1077 |
from US $24.83 |
||
|
16009
|
16009
16009-1953 NEEDLE-JET,N5JD |
16009-1953 |
from US $26.48 |
||
|
16009A
|
16009A
16009-1959 NEEDLE-JET,N5HE |
16009-1959 |
from US $26.48 |
||
|
16009B
|
16009B
16009-1960 NEEDLE-JET,N5HF |
16009-1960 |
from US $26.48 |
||
|
16009C
|
16009C
16009-1961 NEEDLE-JET,N5HH |
16009-1961 |
from US $26.48 |
||
|
16009D
|
16009D
16009-1962 Needle-jet,n5hj |
16009-1962 |
US $26.48 |
||
|
16009E
|
16009E
16009-1964 NEEDLE-JET,N5JE |
16009-1964 |
from US $26.48 |
||
|
16009F
|
16009F
16009-1965 NEEDLE-JET,N5JF |
16009-1965 |
from US $26.48 |
||
|
16009G
|
16009G
16009-1966 NEEDLE-JET,N5JG |
16009-1966 |
from US $26.48 |
||
|
16009H
|
16009H
16009-1967 NEEDLE-JET,5JH |
16009-1967 |
from US $26.48 |
||
|
16009I
|
16009I
16009-1968 Needle-jet,n5jj |
16009-1968 |
US $26.48 |
||
|
16014
|
16014
16014-1033 SCREW-PILOT AIR |
16014-1033 |
from US $14.26 |
||
|
16016
|
16016
16016-1028 PLUNGER,STARTER |
16016-1028 |
from US $70.31 |
||
|
16017
|
16017
16017-1365 JET-NEEDLE |
16017-1365 |
US $51.33 |
||
|
16021
|
16021
16021-1166 SCREW-THROTTLE STOP |
16021-1166 |
from US $13.78 |
||
|
16025
|
16025
16025-1162 VALVE-THROTTLE,CA3.0 |
16025-1162 |
from US $131.95 |
||
|
16030
|
16030
16030-1064 VALVE-FLOAT |
16030-1064 |
from US $34.26 |
||
|
16031
|
16031
16031-1083 FLOAT |
16031-1083 |
from US $31.77 |
||
|
16049
|
16049
16049-1051 COVER-MAIN JET |
16049-1051 |
from US $21.39 |
||
|
16065
|
16065
16065-1162 HOLDER-CARBURETOR |
16065-1162 |
from US $6.97 |
||
|
92015
|
92015
92015-1674 NUT |
92015-1674 |
from US $5.70 |
||
|
92036
|
92036
92036-018 CIRCLIP |
92036-018 |
from US $2.53 |
||
|
92037
|
92037
92037-1396 CLAMP,TUBE |
92037-1396 |
from US $3.33 |
||
|
92037A
|
92037A
92037-1401 CLAMP,JET NEEDLE |
92037-1401 |
from US $2.85 |
||
|
92037B
|
92037B
92037-147 CLAMP,CHAIN OILER |
92037-147 |
from US $4.95 |
||
|
92037C
|
92037C
92037-1712 CLAMP |
92037-1712 |
from US $3.90 |
||
|
92037D
|
92037D
92037-1969 CLAMP,HOSE |
92037-1969 |
from US $5.39 |
||
|
92037E
|
92037E
92037-1991
SPRING,FLOAT
|
92037-1991 |
— | ||
| replacement | |||||
|
92037E
|
92037E
92144-1178 SPRING,FLOAT |
92144-1178 |
from US $5.23 |
||
|
92055
|
92055
92055-1167 RING-O,MAIN JET COVER |
92055-1167 |
from US $7.27 |
||
|
92055A
|
92055A
92055-1389 RING-O,FLOAT CHAMBER |
92055-1389 |
from US $7.62 |
||
|
92059
|
92059
92059-1826 TUBE,5X10X1000,BLUE |
92059-1826 |
US $29.84 |
||
| replacement | |||||
|
92059
|
92059
92190-1007 TUBE,5X10X1000,BLUE |
92190-1007 |
from US $18.20 |
||
|
92059A
|
92059A
92059-1941
TUBE,4X7X480
|
92059-1941 |
— | ||
| replacement | |||||
|
92059A
|
92059A
92059-1898 TUBE,4X7X480 |
92059-1898 |
from US $11.09 |
||
|
92063
|
92063
92063-1334 JET-MAIN,#125 |
92063-1334 |
US $10.30 |
||
|
92063A
|
92063A
92063-1335 JET-MAIN,#128 |
92063-1335 |
from US $10.30 |
||
|
92063B
|
92063B
92063-1337 JET-MAIN,#132 |
92063-1337 |
from US $9.66 |
||
|
92063C
|
92063C
92063-1356 JET-MAIN,#118 |
92063-1356 |
from US $10.30 |
||
|
92063D
|
92063D
92063-1357 JET-MAIN,#120 |
92063-1357 |
from US $10.30 |
||
|
92063E
|
92063E
92063-1358 JET-MAIN,#122 |
92063-1358 |
from US $10.30 |
||
|
92064
|
92064
92064-1130 JET-PILOT,#52 |
92064-1130 |
from US $11.88 |
||
|
92064A
|
92064A
92064-1144 JET-PILOT |
92064-1144 |
from US $11.25 |
||
|
92064B
|
92064B
92064-1145 JET-PILOT,#55 |
92064-1145 |
from US $11.88 |
||
|
92064C
|
92064C
92064-1146 JET-PILOT |
92064-1146 |
from US $13.15 |
||
|
92064D
|
92064D
92064-1147 JET-PILOT |
92064-1147 |
from US $13.15 |
||
|
92081
|
92081
92081-1555 SPRING,ADJUST SCREW |
92081-1555 |
from US $4.09 |
||
|
92144
|
92144
92144-1177 SPRING,THROTTLE VALVE |
92144-1177 |
from US $10.77 |
||
|
92190
|
92190
92190-1291 TUBE,4X7X480 |
92190-1291 |
from US $7.13 |
||
| replacement | |||||
|
92190
|
92190
92059-1898 TUBE,4X7X480 |
92059-1898 |
from US $11.09 |
||
|
92191
|
92191
92191-1243 TUBE,4X7X560 |
92191-1243 |
from US $6.65 |
||
