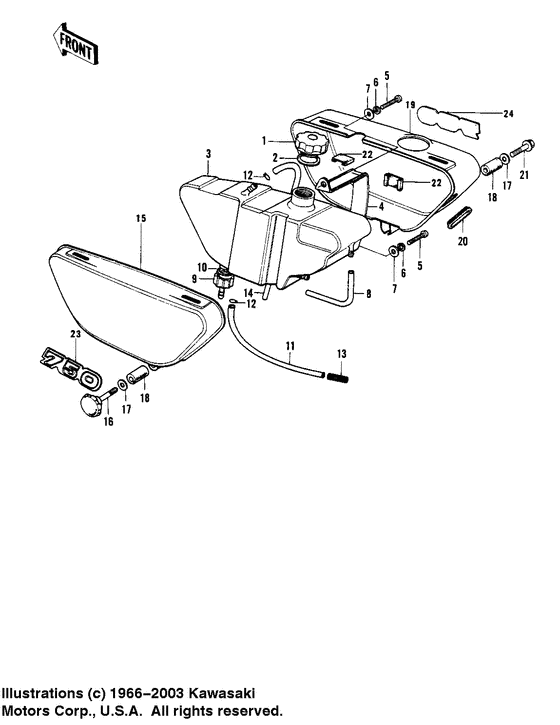

Side covers/oil tank (H2/a) Diagram Kawasaki Model "H" H2 Mach IV
- Year
- 1974
- Model code
- H2-B
- Sales region
- USA
- Engine Capacity
- 750
- Model
- H2 Mach IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52003-020 CAP-OIL TANK |
52003-020 |
US $10.43 |
||
|
2
|
2
92065-086 GASKET-OIL TANK |
92065-086 |
US $3.67 |
||
|
3
|
3
52001-024
TANK-OIL
|
52001-024 |
— | ||
|
4
|
4
52018-001 BAND-OIL TANK |
52018-001 |
US $19.75 |
||
|
5
|
5
220B0616
SCREW-PAN-CROS,6X16
Screw pan head 6x16; |
220B0616 |
— | ||
| replacement | |||||
|
5
|
5
220AA0616 SCREW-PAN-CROS,6X16Screw pan head 6x16; |
220AA0616 |
from US $0.95 |
||
|
6
|
6
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
6
|
6
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
7
|
7
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
7
|
7
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
|
8
|
8
700Q051000
TUBE-PVC,5X1000
Tube-pvc,5x1000; |
700Q051000 |
— | ||
|
9
|
9
52020-001
FILTER-OIL
|
52020-001 |
— | ||
|
10
|
10
670B2015 O RING,15MM"o" ring,15mm; |
670B2015 |
from US $1.77 |
||
|
11
|
11
92059-072 PIPE-OIL |
92059-072 |
from US $19.01 |
||
|
12
|
12
92037-072 CLAMP-PIPEClamp-pipe; |
92037-072 |
from US $4.28 |
||
|
13
|
13
92081-027
SPRING PIPE CLAMP B
|
92081-027 |
— | ||
|
14
|
14
700Q05600
TUBE-PVC,5X1000
Tube-vinyl,5x600; |
700Q05600 |
— | ||
| replacement | |||||
|
14
|
14
700Q051000
TUBE-PVC,5X1000
Tube-vinyl,5x600; |
700Q051000 |
— | ||
|
15
|
15
36001-029-69
COVER-L.H SIDE,C.BLUE
Cover-l.h side,c.blue; H2, h2-a, h2-a |
36001-029-69 |
— | ||
|
16
|
16
92077-016
KNOB L.H SIDE COVER
|
92077-016 |
— | ||
|
17
|
17
92075-041
DAMPER RUBB SIDE COV
|
92075-041 |
— | ||
|
18
|
18
92094-001
RUBBER SIDE COV KNOB
|
92094-001 |
— | ||
|
19
|
19
36007-024-94
COVER,RH SIDE,C.GOLD
Cover,rh side,c.gold; H2, h2-a, h2-a |
36007-024-94 |
— | ||
|
20
|
20
92071-058
GROMMET-SIDE COVER
|
92071-058 |
— | ||
|
21
|
21
92007-033 BOLT,HEX HEAD,6MMBolt,hex head,6mm; |
92007-033 |
US $6.71 |
||
|
22
|
22
31082-010
DAMPER RUBBER-OIL TNK
|
31082-010 |
— | ||
|
23
|
23
56018-138
EMBLEM-L.H SIDE COVER
H2-a |
56018-138 |
— | ||
|
24
|
24
56018-137
EMBLEM-R.H SIDE COVER
H2-a |
56018-137 |
— | ||
| replacement | |||||
|
24
|
24
56018-138
EMBLEM-L.H SIDE COVER
H2-a |
56018-138 |
— | ||
