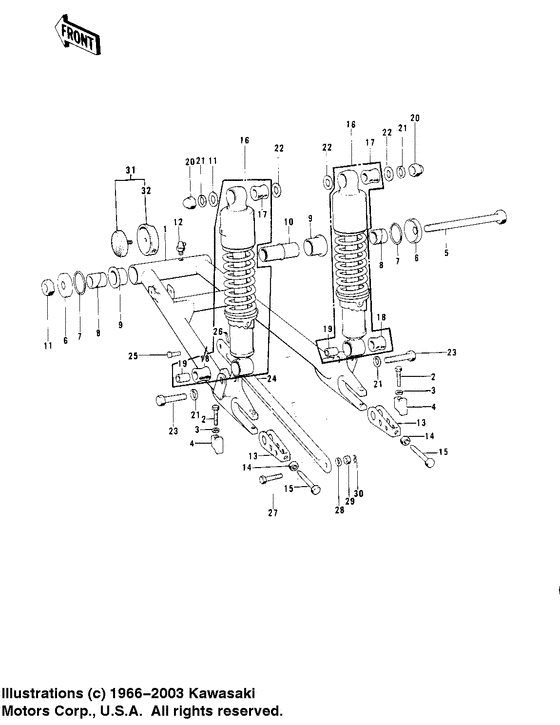

Swing arm/shock absorbers (H2-b/c) Diagram Kawasaki Model "H" H2 Mach IV
- Year
- 1974
- Model code
- H2-B
- Sales region
- USA
- Engine Capacity
- 750
- Model
- H2 Mach IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33001-059 SWINGING ARM |
33001-059 |
US $386.03 |
||
|
2
|
2
92001-1578
BOLT,FLANGED,8X40
|
92001-1578 |
— | ||
| replacement | |||||
|
2
|
2
92002-1838 BOLT,FLANGED,8X40 |
92002-1838 |
from US $4.12 |
||
|
3
|
3
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
3
|
3
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
4
|
4
33044001
STOPPER,CHAIN ADJUST
Stopper,chain adjust; |
33044001 |
— | ||
|
5
|
5
33032-038 SHAFT-SWING ARM PIVOT |
33032-038 |
US $68.09 |
||
|
6
|
6
33035-007
CAP,SWING ARM
Cap,swing arm; |
33035-007 |
— | ||
|
7
|
7
671B2530 0 RING,30MM"0" ring,30mm; |
671B2530 |
from US $3.17 |
||
|
8
|
8
33034-009
SLEEVE SWING ARM
|
33034-009 |
— | ||
|
9
|
9
33033009
BUSHING-SWING ARM
|
33033009 |
— | ||
|
10
|
10
33034-008
SLEEVE SWING ARM LONG
|
33034-008 |
— | ||
|
11
|
11
92019-012 NUT-SELF LOCKING |
92019-012 |
from US $10.43 |
||
|
12
|
12
92005-002
GREASE NIPPLE
|
92005-002 |
— | ||
|
13
|
13
33040-063 ADJUSTER,CHAIN D=10MMAdjuster,chain d=10mm; |
33040-063 |
US $12.47 |
||
|
14
|
14
315B1000 NUT 10MMNut 10mm; |
315B1000 |
US $1.11 |
||
| replacement | |||||
|
14
|
14
315AA1000 NUT-HEX-FINENut 10mm; |
315AA1000 |
from US $0.77 |
||
|
15
|
15
92001-143 BOLT-CHN ADJUST 10MMBolt-chn adjust 10mm; |
92001-143 |
from US $10.43 |
||
|
16
|
16
45014-096 SHOCK ABSBR RR |
45014-096 |
US $141.48 |
||
|
17
|
17
45017015 BUSHING,SHCK ABS RUBBushing,shck abs rub; |
45017015 |
from US $7.92 |
||
|
18
|
18
45017012 BUSHING, SHCK ABS RUBBushing, shck abs rub; |
45017012 |
from US $10.30 |
||
|
19
|
19
45016008 BUSHING,SHOCK ABSORBBushing,shock absorb; |
45016008 |
from US $8.86 |
||
|
20
|
20
92020-003 NUT SHOCK ABSORBERNut shock absorber; |
92020-003 |
from US $3.80 |
||
|
21
|
21
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
21
|
21
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
|
22
|
22
92022-246 WASHER,PLAIN,10MMWasher,plain,10mm; |
92022-246 |
from US $3.80 |
||
|
23
|
23
113N1035 BOLT-UPSET |
113N1035 |
US $37.80 |
||
| replacement | |||||
|
23
|
23
112N1035 BOLT-UPSET |
112N1035 |
from US $1.40 |
||
|
24
|
24
43007-033 TORQUE LINK-REAR BRK |
43007-033 |
US $26.96 |
||
|
25
|
25
43009001 PIN REAR TORQUE LINKPin rear torque link; |
43009001 |
from US $4.91 |
||
|
26
|
26
550D3025 PIN-COTTER,3.0X25Pin cotter 3.0x25; |
550D3025 |
from US $0.27 |
||
| replacement | |||||
|
26
|
26
550AA3025 PIN-COTTER,3.0X25Pin cotter 3.0x25; |
550AA3025 |
from US $0.95 |
||
|
27
|
27
92003-097
BOLT-HEX HEAD,10X40
Bolt-hex head,10x40; |
92003-097 |
— | ||
|
28
|
28
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
28
|
28
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
|
29
|
29
315B1000 NUT 10MMNut 10mm; |
315B1000 |
US $1.11 |
||
| replacement | |||||
|
29
|
29
315AA1000 NUT-HEX-FINENut 10mm; |
315AA1000 |
from US $0.77 |
||
|
30
|
30
554A0800 PIN-SNAPPin,snap; |
554A0800 |
from US $2.09 |
||
| replacement | |||||
|
30
|
30
554DA0800 PIN-SNAPPin,snap; |
554DA0800 |
from US $0.63 |
||
|
31
|
31
28001-030
REFLECTOR,REFLEX,REAR
Reflector,reflex,rear; |
28001-030 |
— | ||
|
32
|
32
28016-002
DAMPER RUBBER-REFLEX
|
28016-002 |
— | ||
