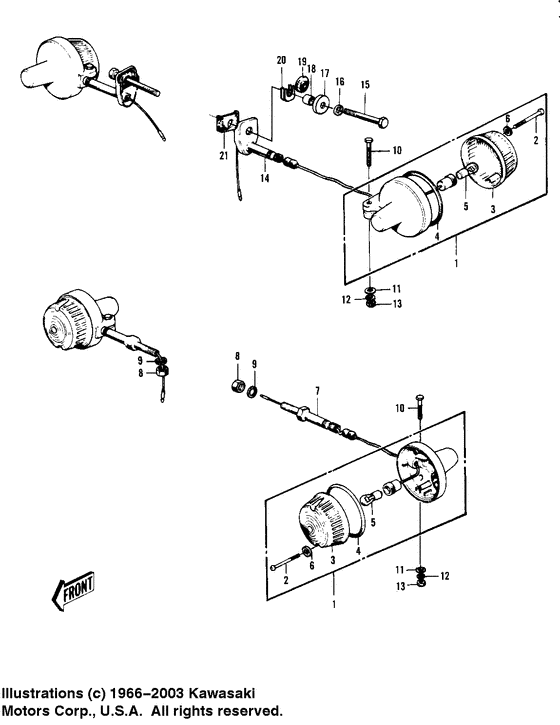

Turn signals (H2/a) Diagram Kawasaki Model "H" H2 Mach IV
- Year
- 1974
- Model code
- H2-B
- Sales region
- USA
- Engine Capacity
- 750
- Model
- H2 Mach IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23040-029 LAMP-TURN SIGNAL |
23040-029 |
from US $83.52 |
||
|
2
|
2
220E0435A SCREW-PAN HEAD,4X35Screw-pan head,4x35; |
220E0435A |
from US $0.94 |
||
|
3
|
3
23048-1024 LENS-SIGNAL LAMP |
23048-1024 |
from US $11.36 |
||
|
4
|
4
23050002 GASKET,TURN SIG LAMPGasket,turn sig lamp; |
23050002 |
from US $3.11 |
||
|
5
|
5
92069-055 BULB 12V 32CPBulb 12v 32cp; |
92069-055 |
from US $4.09 |
||
|
6
|
6
23058002 WASHER-PLAIN,4MMWasher-plain,4mm; |
23058002 |
from US $2.85 |
||
|
7
|
7
23051-047 BRACKET,TURN SIGNALBracket,turn signal; |
23051-047 |
US $72.95 |
||
|
8
|
8
314N1200A NUT,12MMNut,12mm; |
314N1200A |
US $31.50 |
||
|
9
|
9
461F1200 WASHER-SPRING,12MMWasher spring 12mm; |
461F1200 |
US $1.30 |
||
| replacement | |||||
|
9
|
9
461DA1200 WASHER-SPRING,12MMWasher spring 12mm; |
461DA1200 |
from US $0.86 |
||
|
10
|
10
112G0630
BOLT-UPSET
|
112G0630 |
— | ||
| replacement | |||||
|
10
|
10
112BA0630 BOLT-UPSET |
112BA0630 |
from US $0.86 |
||
|
11
|
11
411D0600 WASHERWasher-plain,6mm; |
411D0600 |
US $13.70 |
||
| replacement | |||||
|
11
|
11
411S0600 WASHERWasher-plain,6mm; |
411S0600 |
from US $1.74 |
||
|
12
|
12
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
12
|
12
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
13
|
13
311N0600 NUT-HEX,6MMNut,6mm; |
311N0600 |
US $6.10 |
||
| replacement | |||||
|
13
|
13
311AA0600 NUT-HEX,6MMNut,6mm; |
311AA0600 |
from US $0.63 |
||
|
14
|
14
23051-028
BKT-RR SIGNAL LAMP
|
23051-028 |
— | ||
|
15
|
15
113N1065 BOLT-HEAX HEAD,10X65Bolt-heax head,10x65; |
113N1065 |
US $29.60 |
||
|
16
|
16
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
16
|
16
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
|
17
|
17
92022-106 WASHER 22MM |
92022-106 |
US $2.79 |
||
|
18
|
18
92027-137
COLLAR
|
92027-137 |
— | ||
|
19
|
19
92075-114
DAMPER RUBBER,A
Damper rubber,a; |
92075-114 |
— | ||
|
20
|
20
23061-003 PLATE-EARTH |
23061-003 |
US $3.14 |
||
|
21
|
21
92075-111
DAMPER RUBBER,B
Damper rubber,b; |
92075-111 |
— | ||
