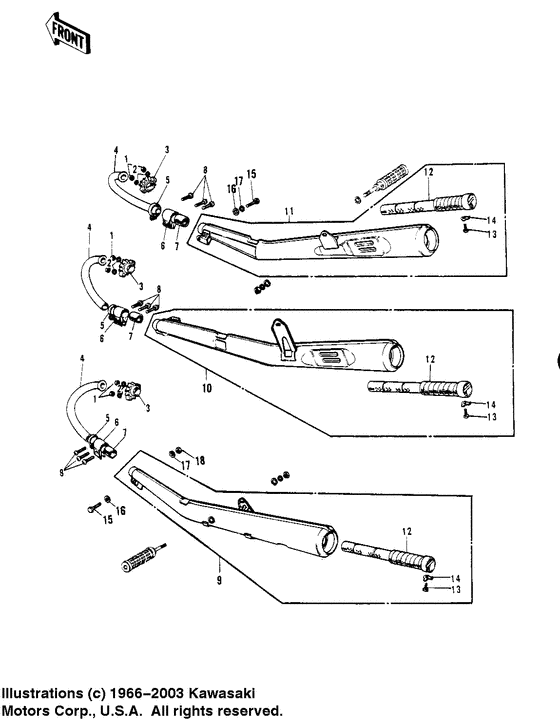

Mufflers (H2/a) Diagram Kawasaki Model "H" H2 Mach IV
- Year
- 1975
- Model code
- H2-C
- Sales region
- USA
- Engine Capacity
- 750
- Model
- H2 Mach IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
311B0800
Nut,8mm
Nut,8mm; |
311B0800 |
— | ||
| replacements | |||||
|
1
|
1
317AA0800 NUT-HEX-SMALLNut,8mm; |
317AA0800 |
from US $0.94 |
||
|
1
|
1
311AA0800 NUT-HEX-SMALLNut,8mm; |
311AA0800 |
US $0.40 |
||
|
2
|
2
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
2
|
2
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
3
|
3
18069-037 HOLDER-EXHAUST PIPE |
18069-037 |
US $72.81 |
||
|
4
|
4
18049-071 PIPE-EXHAUST |
18049-071 |
US $98.01 |
||
|
5
|
5
18044-007
HOLDER MUFFLER CONECT
|
18044-007 |
— | ||
|
6
|
6
18044-006
HOLDER MUFFLER CONECT
|
18044-006 |
— | ||
|
7
|
7
18043-010 CONNECTOR MUFFLER |
18043-010 |
from US $27.37 |
||
|
8
|
8
220B0630
SCREW-PAN HEAD,6X30
Screw pan head 6x30; |
220B0630 |
— | ||
| replacement | |||||
|
8
|
8
220AA0630 SCREW-PAN HEAD,6X30Screw pan head 6x30; |
220AA0630 |
from US $1.25 |
||
|
9
|
9
18001-048
MUFFLER ASSY,L.H
Muffler assy,l.h; |
18001-048 |
— | ||
|
10
|
10
18001-049
MUFFLER ASSY,CENTER
Muffler assy,center; |
18001-049 |
— | ||
|
11
|
11
18001-050
MUFFLER ASSY,R.H
Muffler assy,r.h; |
18001-050 |
— | ||
|
12
|
12
18033-056 BAFFLE TUBE |
18033-056 |
US $62.44 |
||
|
13
|
13
112G0612
BOLT-UPSET,6X12
Bolt-upset,6x12; |
112G0612 |
— | ||
| replacement | |||||
|
13
|
13
112BA0612 BOLT-UP SETBolt-upset,6x12; |
112BA0612 |
from US $1.25 |
||
|
14
|
14
92024-016
WASHER LOCK 6MM
|
92024-016 |
— | ||
|
15
|
15
115G0820 BOLT-SMALL-UPSETBolt,8x20; |
115G0820 |
US $48.10 |
||
| replacement | |||||
|
15
|
15
115BA0820 BOLT-SMALL-UPSETBolt,8x20; |
115BA0820 |
from US $1.12 |
||
|
16
|
16
411B0800
WASHER PLAIN 8MM
Washer plain 8mm; |
411B0800 |
— | ||
| replacement | |||||
|
16
|
16
411AA0800 WASHER-PLAINWasher plain 8mm; |
411AA0800 |
from US $0.72 |
||
|
17
|
17
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
17
|
17
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
18
|
18
311B0800
Nut,8mm
Nut,8mm; |
311B0800 |
— | ||
| replacements | |||||
|
18
|
18
317AA0800 NUT-HEX-SMALLNut,8mm; |
317AA0800 |
from US $0.94 |
||
|
18
|
18
311AA0800 NUT-HEX-SMALLNut,8mm; |
311AA0800 |
US $0.40 |
||
