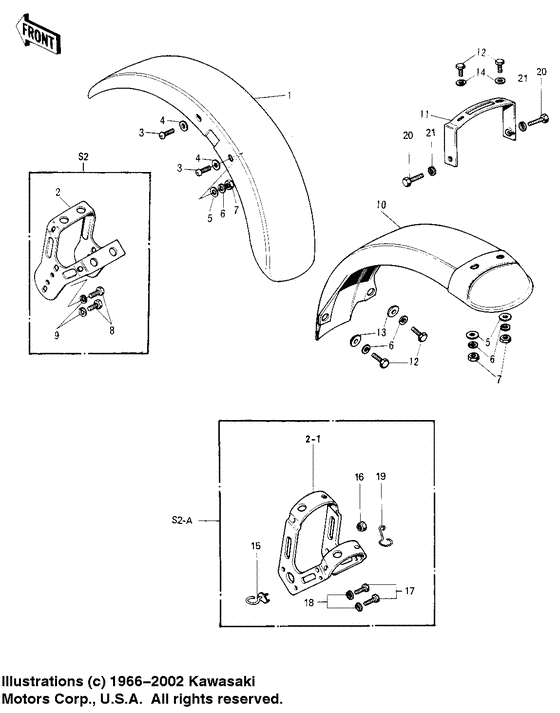

Fenders Diagram Kawasaki Model "S" S2 Mach II
- Year
- 1972
- Model code
- S2
- Sales region
- USA
- Engine Capacity
- 350
- Model
- S2 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35004-075-68
FENDER-FR,P.C.RED
Fender-fr,p.c.red; S2, s2-a |
35004-075-68 |
— | ||
|
2
|
2
35009-019
BRACE-FRONT FENDER
S2 |
35009-019 |
— | ||
|
3
|
3
220E0614
SCREW PAN HEAD 6X14
|
220E0614 |
— | ||
|
4
|
4
92022-193 WASHER-PLAINWasher-plain; |
92022-193 |
from US $3.48 |
||
|
5
|
5
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
5
|
5
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
|
6
|
6
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
6
|
6
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
7
|
7
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
7
|
7
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
8
|
8
114G0812 BOLT-SMALL-UPSET,8X12 |
114G0812 |
US $24.30 |
||
| replacement | |||||
|
8
|
8
115G0812 BOLT-SMALL-UPSET,8X12 |
115G0812 |
US $2.43 |
||
|
9
|
9
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
9
|
9
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
10
|
10
35022-056
FENDER-RR
|
35022-056 |
— | ||
|
11
|
11
35025-021
BRACKET-REAR FENDER
|
35025-021 |
— | ||
|
12
|
12
112G0616
BOLT-UPSET,6X16
Bolt-upset,6x16; |
112G0616 |
— | ||
| replacement | |||||
|
12
|
12
112BA0616 BOLT-UPSET,6X16Bolt-upset,6x16; |
112BA0616 |
from US $0.86 |
||
|
13
|
13
92027-122 COLLAR |
92027-122 |
from US $5.07 |
||
|
14
|
14
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
14
|
14
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
15
|
15
92037-097 CLAMPS2-a |
92037-097 |
US $6.48 |
||
|
16
|
16
92019-014 NUT-LOCK,5MMNut-lock,5mm; S2-a |
92019-014 |
from US $3.01 |
||
|
17
|
17
115G0816
BOLT-SMALL-UPSET,8X16
Bolt-small-upset,8x16; S2-a |
115G0816 |
— | ||
| replacement | |||||
|
17
|
17
115BA0816 BOLT-SMALL-UPSETBolt-small-upset,8x16; S2-a |
115BA0816 |
from US $0.86 |
||
|
18
|
18
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; S2-a |
461F0800 |
— | ||
| replacement | |||||
|
18
|
18
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; S2-a |
461DA0800 |
from US $0.48 |
||
|
19
|
19
92037-096 CLAMP-CABLES2-a |
92037-096 |
US $2.95 |
||
|
20
|
20
113N1025 BOLT,HEX HEAD,10X25Bolt,hex head,10x25; |
113N1025 |
US $11.05 |
||
|
21
|
21
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
21
|
21
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
