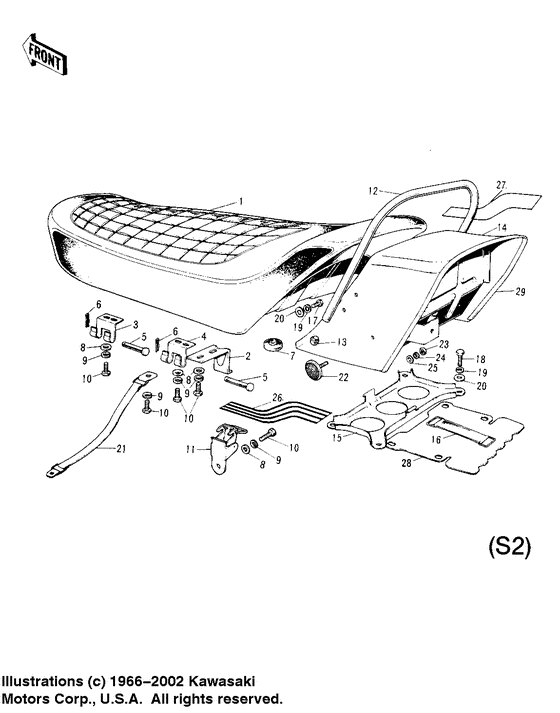

Seat/seat cover (S2) Diagram Kawasaki Model "S" S2 Mach II
- Year
- 1972
- Model code
- S2
- Sales region
- USA
- Engine Capacity
- 350
- Model
- S2 Mach II
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53001-070
SEAT ASSY-DUAL
|
53001-070 |
— | ||
|
2
|
2
53008-011
HOOK
|
53008-011 |
— | ||
|
3
|
3
53009-017-10 HINGE,BLACKHinge,black; |
53009-017-10 |
US $71.98 |
||
|
4
|
4
53009-021
HINGE-SEAT
|
53009-021 |
— | ||
|
5
|
5
53011002 PIN |
53011002 |
US $7.57 |
||
|
6
|
6
92041-003 COTTER PIN |
92041-003 |
from US $3.02 |
||
| replacement | |||||
|
6
|
6
554DA0600 PIN-SNAP |
554DA0600 |
from US $1.36 |
||
|
7
|
7
92075-023 DAMPER RUBB DUAL SEATDamper rubb dual seat; |
92075-023 |
from US $3.81 |
||
|
8
|
8
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
8
|
8
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
|
9
|
9
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
9
|
9
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
10
|
10
112B0614
BOLT-UPSET
Bolt-upset 6x14; |
112B0614 |
— | ||
| replacements | |||||
|
10
|
10
112AA0614 BOLT-UPSETBolt-upset 6x14; |
112AA0614 |
from US $0.82 |
||
|
10
|
10
112BA0614 BOLT-UPSETBolt-upset 6x14; |
112BA0614 |
from US $1.43 |
||
|
11
|
11
53045-001
HOOK ASSY
|
53045-001 |
— | ||
|
12
|
12
53042-004
GRIP-SEAT
|
53042-004 |
— | ||
|
13
|
13
32112-004
PLUG-SEAT GRIP
|
32112-004 |
— | ||
|
14
|
14
53043-001-84
BACK RENT,P.C.RED
Back rent,p.c.red; |
53043-001-84 |
— | ||
|
15
|
15
32098-015
BOX-TOOL
|
32098-015 |
— | ||
|
16
|
16
92072-012 BAND TOOLBand tool; |
92072-012 |
from US $4.80 |
||
|
17
|
17
114G0812 BOLT-SMALL-UPSET,8X12 |
114G0812 |
US $24.30 |
||
| replacement | |||||
|
17
|
17
115G0812 BOLT-SMALL-UPSET,8X12 |
115G0812 |
US $2.43 |
||
|
18
|
18
115G0820 BOLT-SMALL-UPSETBolt,8x20; |
115G0820 |
US $48.10 |
||
| replacement | |||||
|
18
|
18
115BA0820 BOLT-SMALL-UPSETBolt,8x20; |
115BA0820 |
from US $1.12 |
||
|
20
|
20
411B0800
WASHER PLAIN 8MM
Washer plain 8mm; |
411B0800 |
— | ||
| replacement | |||||
|
20
|
20
411AA0800 WASHER-PLAINWasher plain 8mm; |
411AA0800 |
from US $0.72 |
||
|
21
|
21
92072-038
BAND-SEAT STOPPER
|
92072-038 |
— | ||
|
22
|
22
28001-009
REFLECTOR-REFLEX,REAR
Reflector-reflex,rear; |
28001-009 |
— | ||
|
23
|
23
311B0500
NUT-HEX,5MM
Nut,5mm; |
311B0500 |
— | ||
| replacement | |||||
|
23
|
23
311AA0500 NUT-HEX,5MMNut,5mm; |
311AA0500 |
from US $0.78 |
||
|
24
|
24
461F0500
WASHER-SPRING
Washer spring 5mm; |
461F0500 |
— | ||
| replacement | |||||
|
24
|
24
461DA0500 WASHER-SPRINGWasher spring 5mm; |
461DA0500 |
from US $0.48 |
||
|
25
|
25
411B0500
W-PLAIN-S
Washer plain 5mm; |
411B0500 |
— | ||
| replacements | |||||
|
25
|
25
411AA0500 WASHER-PLAIN,5MMWasher plain 5mm; |
411AA0500 |
from US $0.88 |
||
|
25
|
25
410AA0500 W-PLAIN-SWasher plain 5mm; |
410AA0500 |
from US $0.78 |
||
|
26
|
26
56027-050
EMBLEM-L.H BACK REST
|
56027-050 |
— | ||
|
27
|
27
56027-052
EMBLEM-R.H BACK REST
|
56027-052 |
— | ||
|
28
|
28
53046-002
PLATE
|
53046-002 |
— | ||
|
29
|
29
53044-001
MOULDING-SEAT REST
|
53044-001 |
— | ||
