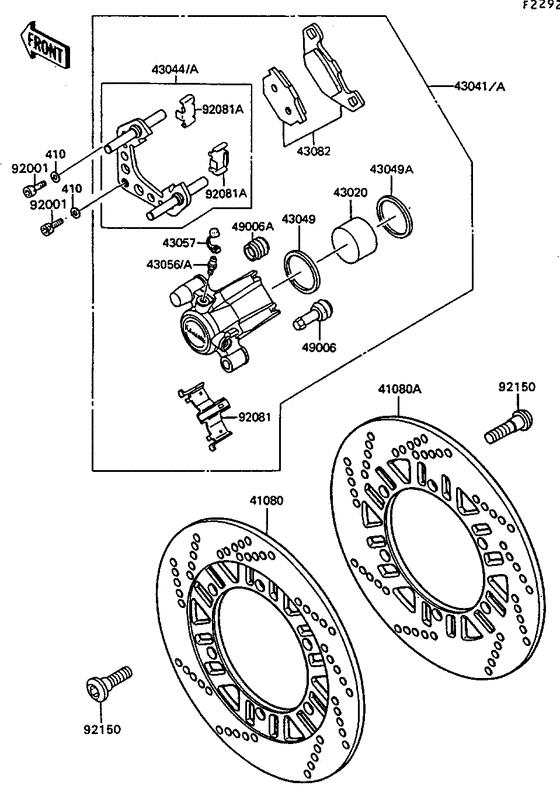

Front brake (Zg1000-a7/a8) Diagram Kawasaki ZG1000 Concours
- Year
- 1999
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- ZG1000 Concours
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41080
|
41080
41080-1205 DISC,FR,LHDisc,fr,lh; |
41080-1205 |
US $478.22 |
||
|
41080A
|
41080A
41080-1206 DISC,FR,RHDisc,fr,rh; |
41080-1206 |
US $502.15 |
||
|
43020
|
43020
43020-1066 PISTON-COMP-BRAKE |
43020-1066 |
from US $75.85 |
||
|
43041
|
43041
43041-1471 CALIPER-ASSY,FR,LH,SICaliper-assy,fr,rh; |
43041-1471 |
US $416.90 |
||
| replacements | |||||
|
43041
|
43041
43080-5004-GN CALIPER-SUB-ASSY,FR,RCaliper-assy,fr,rh; |
43080-5004-GN |
US $328 |
||
|
43041
|
43041
43082-1061 PAD-ASSY-BRAKECaliper-assy,fr,rh; |
43082-1061 |
from US $58.12 |
||
|
43041
|
43041
43041-1471-GN CALIPER-ASSY,FR,LH,SICaliper-assy,fr,rh; |
43041-1471-GN |
US $390.24 |
||
|
43041A
|
43041A
43041-1484 CALIPER-ASSY,FR,LHCaliper-assy,fr,lh; |
43041-1484 |
US $483.21 |
||
|
43044
|
43044
43044-1035 HOLDER-COMP-CALIPER,FHolder-comp-caliper,fr,lh; |
43044-1035 |
from US $113.07 |
||
|
43044A
|
43044A
43044-1036 HOLDER-COMP-CALIPER,FHolder-comp-caliper,fr,rh; |
43044-1036 |
from US $138.53 |
||
|
43049
|
43049
43049002
PACKING,PISTON SEAL
Ring,piston seal; |
43049002 |
— | ||
| replacement | |||||
|
43049
|
43049
43049-1098 PACKING,PISTON SEALRing,piston seal; |
43049-1098 |
from US $8.78 |
||
|
43049A
|
43049A
43049-1028 PACKING,PISTONPacking,piston; |
43049-1028 |
from US $9.66 |
||
|
43056
|
43056
43056-003
BLEEDER SET
|
43056-003 |
— | ||
| replacement | |||||
|
43056
|
43056
43085-001 BLEEDER SET |
43085-001 |
from US $21.90 |
||
|
43056A
|
43056A
43056-1054
Breather-brake
|
43056-1054 |
— | ||
| replacement | |||||
|
43056A
|
43056A
43085-001 BLEEDER SET |
43085-001 |
from US $21.90 |
||
|
43057
|
43057
43057-003 CAP,BREEDER |
43057-003 |
from US $3.01 |
||
|
43082
|
43082
43082-1061 PAD-ASSY-BRAKE |
43082-1061 |
from US $58.12 |
||
|
49006
|
49006
49006-1094 BOOT,CALIPERBoot,caliper; |
49006-1094 |
from US $8.87 |
||
|
49006A
|
49006A
49006-1095 BOOT,CALIPERBoot,caliper; |
49006-1095 |
from US $4.91 |
||
|
92001
|
92001
92001-1901 BOLT,SOCKET,10X33Bolt,socket,10x33; |
92001-1901 |
from US $6.81 |
||
|
92081
|
92081
92081-1525 SPRING,PADSpring,pad; |
92081-1525 |
from US $13.15 |
||
|
92081A
|
92081A
92081-1661 SPRING,PAD STOPPERSpring,pad stopper; |
92081-1661 |
from US $8.24 |
||
|
92150
|
92150
92150-1728 Bolt,disc plate,8x30Bolt,disc plate,8x30; |
92150-1728 |
from US $2.85 |
||
| replacement | |||||
|
92150
|
92150
92154-1865 BOLT,SOCKET,8X30Bolt,disc plate,8x30; |
92154-1865 |
from US $2.85 |
||
|
410
|
410
410B1000
W-PLAIN-S
Washer-plain-small,10mm; |
410B1000 |
— | ||
| replacement | |||||
|
410
|
410
410AA1000 W-PLAIN-SWasher-plain-small,10mm; |
410AA1000 |
from US $0.81 |
||
