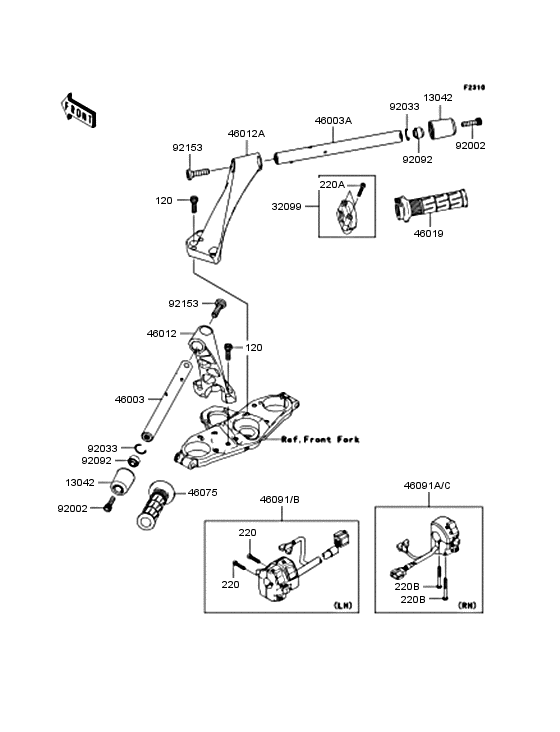

Handlebar Diagram Kawasaki ZG1400 1400GTR ABS
- Year
- 2009
- Colour
- Metallic Diablo Black (17K)
- Model code
- ZG1400A9F
- Sales region
- Malaysia
- Engine Capacity
- 1400
- Frame
- ZGT40A 019001 -
- Engine
- ZXT40AE 000001 -
- Model
- 1400GTR ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120R0825 BOLT-SOCKET,8X25BOLT-SOCKET，8X25 |
120R0825 |
from US $1.74 |
||
|
220
|
220
220AB0525 SCREW-PAN-CROSSCREW-PAN-CROS，5X25 |
220AB0525 |
from US $0.95 |
||
|
220A
|
220A
220AB0535 SCREW-PAN-CROSS,5X35SCREW-PAN-CROSS，5X35 |
220AB0535 |
from US $0.95 |
||
|
220B
|
220B
220AB0545 SCREW-PAN-CROSS,5X45SCREW-PAN-CROSS，5X45 |
220AB0545 |
from US $0.95 |
||
|
13042
|
13042
13042-1006 WEIGHT,HANDLEWEIGHT，HANDLE |
13042-1006 |
from US $34.26 |
||
| replacement | |||||
|
13042
|
13042
13042-5002 WEIGHT,HANDLEWEIGHT，HANDLE |
13042-5002 |
from US $31.72 |
||
|
32099
|
32099
32099-0027 CASE,THROTTLECASE，THROTTLE |
32099-0027 |
from US $32.98 |
||
| replacement | |||||
|
32099
|
32099
32099-0769 CASE,THROTTLECASE，THROTTLE |
32099-0769 |
from US $31.97 |
||
|
46003A
|
46003A
46003-0143 HANDLE,RHHANDLE，RH |
46003-0143 |
from US $168.29 |
||
| replacement | |||||
|
46003A
|
46003A
46003-0177 HANDLE,RHHANDLE，RH |
46003-0177 |
from US $153.05 |
||
|
46003
|
46003
46003-0142 HandleHANDLE，LH |
46003-0142 |
from US $159.48 |
||
| replacement | |||||
|
46003
|
46003
46003-0191 HANDLEHANDLE，LH |
46003-0191 |
from US $153.05 |
||
|
46012
|
46012
46012-0053-458 ホルダ(ハンドル)，lh，シルバーHOLDER-HANDLE，LH，P.SILVER |
46012-0053-458 |
from US $107.95 |
||
| replacement | |||||
|
46012
|
46012
46012-0086-458 HOLDER-HANDLE,LH,P.SILVERHOLDER-HANDLE，LH，P.SILVER |
46012-0086-458 |
from US $116.93 |
||
|
46012A
|
46012A
46012-0054-458 ホルダ(ハンドル)，rh，シルバーHOLDER-HANDLE，RH，P.SILVER |
46012-0054-458 |
from US $107.95 |
||
| replacement | |||||
|
46012A
|
46012A
46012-0087-458 HOLDER-HANDLE,RH,P.SILVERHOLDER-HANDLE，RH，P.SILVER |
46012-0087-458 |
from US $116.93 |
||
|
46019
|
46019
46019-0001 GRIP-ASSY,THROTTLEGRIP-ASSY，THROTTLE |
46019-0001 |
from US $30.75 |
||
|
46075
|
46075
46075-1144 GRIP,LHGRIP，LH |
46075-1144 |
from US $18.40 |
||
|
46091
|
46091
46091-0132 HOUSING-ASSY-CONTROL,HOUSING-ASSY-CONTROL，LH |
46091-0132 |
from US $175.56 |
||
| replacement | |||||
|
46091
|
46091
46091-0143 HOUSING-ASSY-CONTROL,HOUSING-ASSY-CONTROL，LH |
46091-0143 |
from US $208.77 |
||
|
46091A
|
46091A
46091-0133 HOUSING-ASSY-CONTROL,HOUSING-ASSY-CONTROL，RH |
46091-0133 |
from US $144.34 |
||
| replacement | |||||
|
46091A
|
46091A
46091-0144 HOUSING-ASSY-CONTROL,HOUSING-ASSY-CONTROL，RH |
46091-0144 |
from US $166.72 |
||
|
46091B
|
46091B
46091-0143 HOUSING-ASSY-CONTROL,HOUSING-ASSY-CONTROL，LH |
46091-0143 |
from US $208.77 |
||
|
46091C
|
46091C
46091-0144 HOUSING-ASSY-CONTROL,HOUSING-ASSY-CONTROL，RH |
46091-0144 |
from US $166.72 |
||
|
92002
|
92002
92002-1844 BOLT,SOCKET,8X30BOLT，SOCKET，8X30 |
92002-1844 |
from US $3.48 |
||
| replacement | |||||
|
92002
|
92002
92154-1866 BOLT,SOCKET,8X30BOLT，SOCKET，8X30 |
92154-1866 |
from US $3.17 |
||
|
92033
|
92033
92033-1102 RING-SNAP,OD=22.2RING-SNAP，OD=22.2 |
92033-1102 |
US $2.53 |
||
| replacements | |||||
|
92033
|
92033
13042-5001 WEIGHT,HANDLERING-SNAP，OD=22.2 |
13042-5001 |
from US $31.72 |
||
|
92033
|
92033
13042-5002 WEIGHT,HANDLERING-SNAP，OD=22.2 |
13042-5002 |
from US $31.72 |
||
|
92033
|
92033
13042-5003 WEIGHT,HANDLERING-SNAP，OD=22.2 |
13042-5003 |
from US $32.34 |
||
|
92092
|
92092
92092-1018 BUSHING-RUBBER,HANDLEBUSHING-RUBBER，HANDLE |
92092-1018 |
from US $9.35 |
||
| replacements | |||||
|
92092
|
92092
13042-5002 WEIGHT,HANDLEBUSHING-RUBBER，HANDLE |
13042-5002 |
from US $31.72 |
||
|
92092
|
92092
13042-5003 WEIGHT,HANDLEBUSHING-RUBBER，HANDLE |
13042-5003 |
from US $32.34 |
||
|
92153
|
92153
92153-1440 BOLT,SOCKET,10X37BOLT，SOCKET，10X37 |
92153-1440 |
from US $4.25 |
||
