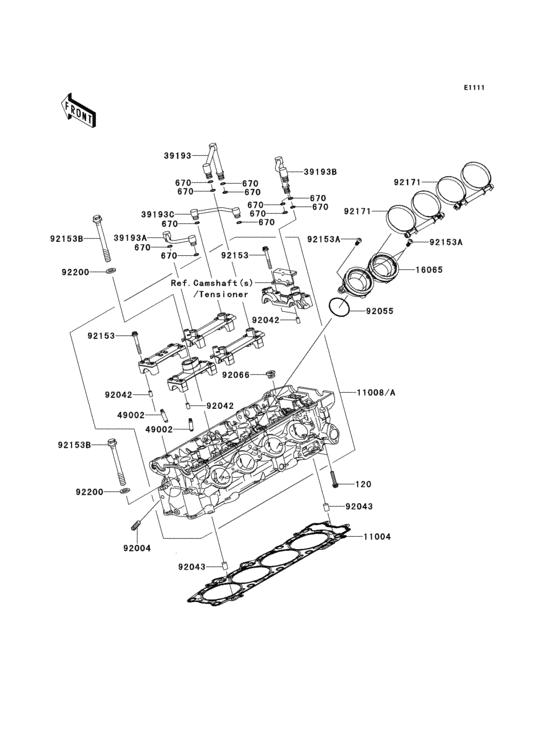

Cylinder head Diagram Kawasaki ZG1400 Concours 14 ABS
- Year
- 2009
- Colour
- Candy Diamond Red (25T)
- Model code
- ZG1400A9F
- Sales region
- USA
- Engine Capacity
- 1400
- Model
- Concours 14 ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CD0630 BOLT-SOCKET |
120CD0630 |
from US $1.27 |
||
|
670
|
670
670D1509 O RING |
670D1509 |
from US $3.33 |
||
|
11004
|
11004
11004-0059 GASKET-HEAD |
11004-0059 |
from US $169.88 |
||
|
11008A
|
11008A
11008-0166 HEAD-COMP-CYLINDER |
11008-0166 |
from US $3,507.74 |
||
|
16065
|
16065
16065-0040 HOLDER-CARBURETOR |
16065-0040 |
from US $44.81 |
||
|
39193
|
39193
39193-0039 PIPE-OIL |
39193-0039 |
from US $81.87 |
||
|
39193A
|
39193A
39193-0040 PIPE-OIL |
39193-0040 |
from US $34.56 |
||
|
39193B
|
39193B
39193-0041 PIPE-OIL |
39193-0041 |
from US $81.87 |
||
|
39193C
|
39193C
39193-0042 PIPE-OIL |
39193-0042 |
from US $34.56 |
||
|
49002
|
49002
49002-0014 GUIDE-VALVE |
49002-0014 |
from US $26.85 |
||
|
92004
|
92004
92004-0025 STUD,8X22 |
92004-0025 |
from US $2.32 |
||
|
92042
|
92042
92042-007 PIN-DOWEL |
92042-007 |
from US $4.44 |
||
|
92043
|
92043
92043-1264 PIN,DOWEL,8.2X10X14 |
92043-1264 |
from US $1 |
||
|
92055
|
92055
92055-1600 RING-O,47X1.9 |
92055-1600 |
from US $5.70 |
||
|
92066
|
92066
92066-0016 PLUG,18X10 |
92066-0016 |
from US $8.71 |
||
| replacement | |||||
|
92066
|
92066
92066-0832 PLUG,18X10 |
92066-0832 |
from US $8.08 |
||
|
92153
|
92153
92153-0656 BOLT,6X45 |
92153-0656 |
from US $1.11 |
||
|
92153A
|
92153A
92153-1629 BOLT,TORX,6X18 |
92153-1629 |
from US $2.06 |
||
|
92153B
|
92153B
92153-1674 BOLT,FLANGED-SHALL,11 |
92153-1674 |
from US $10.14 |
||
|
92171
|
92171
92171-1892 CLAMP |
92171-1892 |
from US $18.69 |
||
|
92200
|
92200
92200-0341 WASHER,11.5X21X2.3 |
92200-0341 |
from US $2.53 |
||
