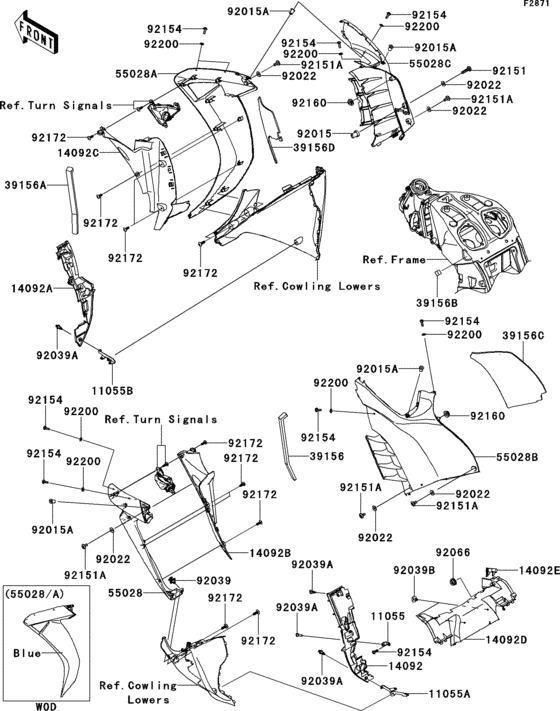

Cowling(center) Diagram Kawasaki ZG1400 Concours 14
- Year
- 2010
- Model code
- ZG1400DAF
- Sales region
- USA
- Engine Capacity
- 1400
- Frame
- JKBZGND1 AA000001 - 999999
- Model
- Concours 14
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11055
|
11055
11055-1837 BRACKET,RESERVOIR |
11055-1837 |
from US $2.49 |
||
|
11055A
|
11055A
11055-1838 BRACKET,LWR COWLING,L |
11055-1838 |
from US $8.77 |
||
|
11055B
|
11055B
11055-1839 BRACKET,LWR COWLING,R |
11055-1839 |
from US $4.18 |
||
|
14092
|
14092
14092-0098 COVER,HEAT GUARD,LH |
14092-0098 |
from US $42.26 |
||
|
14092A
|
14092A
14092-0099 COVER,HEAT GUARD,RH |
14092-0099 |
from US $42.26 |
||
|
14092B
|
14092B
14092-0102 COVER,SHROUD,LH |
14092-0102 |
from US $66.48 |
||
|
14092C
|
14092C
14092-0103 COVER,SHROUD,RH |
14092-0103 |
from US $73.36 |
||
|
14092D
|
14092D
14092-0135 COVER,HEAT GUARD,FR |
14092-0135 |
from US $82.72 |
||
|
14092E
|
14092E
14092-0136 COVER,RADIATOR CAP |
14092-0136 |
from US $11.91 |
||
|
39156
|
39156
39156-0591 PAD,SHROUD,LH |
39156-0591 |
from US $2.29 |
||
|
39156A
|
39156A
39156-0593 PAD,SHROUD,RH |
39156-0593 |
from US $2.29 |
||
|
39156B
|
39156B
39156-0594 PAD,20X20X14 |
39156-0594 |
from US $2.62 |
||
|
39156C
|
39156C
39156-0595 PAD,CNT COWLING,LH |
39156-0595 |
from US $16.92 |
||
|
39156D
|
39156D
39156-0596 PAD,CNT COWLING,RH |
39156-0596 |
from US $16.92 |
||
|
55028
|
55028
55028-0320-27Z
COWLING,SIDE,LH,C.N.B
|
55028-0320-27Z |
— | ||
|
55028A
|
55028A
55028-0321-27Z COWLING,SIDE,RH,C.N.B |
55028-0321-27Z |
from US $324.72 |
||
|
55028B
|
55028B
55028-0388-27Z COWLING,CNT,LH,C.N.BL |
55028-0388-27Z |
from US $438.57 |
||
|
55028C
|
55028C
55028-0389-27Z COWLING,CNT,RH,C.N.BL |
55028-0389-27Z |
from US $431.11 |
||
|
92015
|
92015
92015-1692 NUT,RUBBER,6MM |
92015-1692 |
from US $4.80 |
||
|
92015A
|
92015A
92015-1757 NUT,5MM |
92015-1757 |
from US $4.25 |
||
|
92022
|
92022
92022-1143 WASHER,PLAIN,6.5X16X1 |
92022-1143 |
from US $2.53 |
||
|
92039
|
92039
92039-0014 RIVET |
92039-0014 |
from US $1.77 |
||
|
92039A
|
92039A
92039-0051 RIVET |
92039-0051 |
from US $2.22 |
||
|
92039B
|
92039B
92039-1289 RIVET |
92039-1289 |
from US $1.61 |
||
|
92066
|
92066
92066-1306 PLUG |
92066-1306 |
from US $3.33 |
||
|
92151
|
92151
92151-1605 BOLT,SOCKET,6X30 |
92151-1605 |
from US $1.61 |
||
|
92151A
|
92151A
92151-1654 BOLT,SOCKET,6X14 |
92151-1654 |
from US $1.43 |
||
|
92154
|
92154
92154-0209 BOLT,SOCKET,5X16 |
92154-0209 |
from US $1.43 |
||
|
92160
|
92160
92160-1613 DAMPER |
92160-1613 |
from US $3.37 |
||
|
92172
|
92172
92172-0238 SCREW,TAPPING,5X16 |
92172-0238 |
from US $0.48 |
||
|
92200
|
92200
92200-0006 WASHER,NYLONE,5.3X11. |
92200-0006 |
from US $1.25 |
