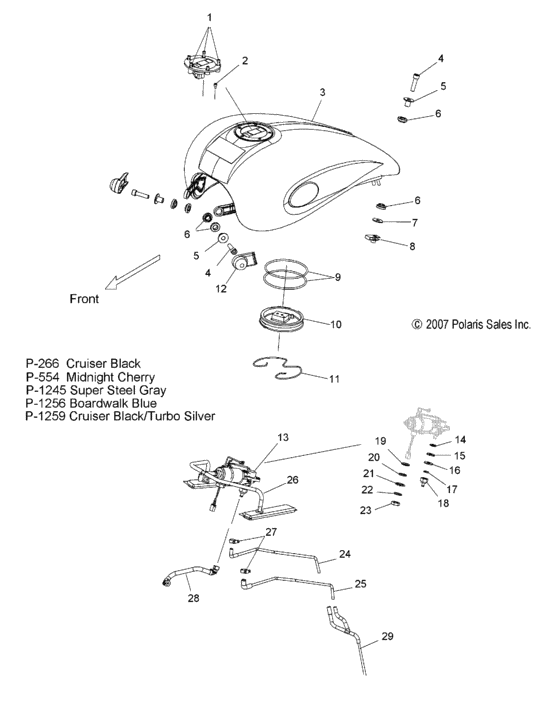

Body, fuel tank (V08HB26/HS26 ALL OPTIONS) Diagram Polaris HAMMER ALL OPTIONS
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7518086 Scr-sochd,m5x25 |
7518086 |
US $3.94 |
||
|
1
|
1
4011080-266
Asm., ignition/fuel cap, black
|
4011080-266 |
— | ||
|
1
|
1
4011080-385
Asm-ign switch/fuel cap,slv
|
4011080-385 |
— | ||
|
2
|
2
7517845 Scr-sochd,m5x12 |
7517845 |
US $3.75 |
||
|
3
|
3
1014739-554
Tank, fuel, spine
|
1014739-554 |
— | ||
|
3
|
3
1014739-1256
Tank, fuel, spine
|
1014739-1256 |
— | ||
|
3
|
3
1014739-266
Tank, fuel, spine
|
1014739-266 |
— | ||
|
3
|
3
1014739-1259
Tank, fuel, spine
Hammer S; |
1014739-1259 |
— | ||
|
3
|
3
1014739-1245
Tank, fuel, spine
|
1014739-1245 |
— | ||
|
4
|
4
7517525 Screw,sochd,m10x40 |
7517525 |
US $1.93 |
||
|
5
|
5
5134160 Bshg-flg,10,2x13,5x18 |
5134160 |
US $7.18 |
||
|
6
|
6
5412480 Bshg-flg,14x20,6x9,25,rbr |
5412480 |
US $1.77 |
||
|
7
|
7
7556260 Wshr-flat,m10x30x2,zpc |
7556260 |
US $8.66 |
||
|
8
|
8
7547233 Nut-u,m10x1,5,long |
7547233 |
US $8.66 |
||
|
9
|
9
5412071 O-ring |
5412071 |
US $27.02 |
||
|
10
|
10
5133613 Plug-fuel tank,mach |
5133613 |
US $238.09 |
||
|
11
|
11
7710515 Ring-retaining |
7710515 |
US $9.85 |
||
|
12
|
12
5412415 Cover-fuel tank mnt,rh |
5412415 |
US $35.12 |
||
|
12
|
12
5412414 Cover-fuel tank mnt,lh |
5412414 |
US $17.24 |
||
|
13
|
13
2520678
Thermistor-fuel pump
|
2520678 |
— | ||
|
13
|
13
2520700
Asm-pump,fuel
|
2520700 |
— | ||
|
14
|
14
5412094 Grommet-fuel pump |
5412094 |
US $13.30 |
||
|
15
|
15
5412093 Grommet-fuel pump |
5412093 |
US $14.77 |
||
|
16
|
16
7556131 Washer,flat,10,2x1,0 |
7556131 |
US $2.45 |
||
|
17
|
17
5411869 O-ring-fuel pump |
5411869 |
US $10.83 |
||
|
18
|
18
2520701
Fitting-fuel nut, fuel pump
|
2520701 |
— | ||
|
19
|
19
5412096 Grommet-fuel pump |
5412096 |
US $14.77 |
||
|
20
|
20
5412095 Grommet-fuel pump |
5412095 |
US $7.88 |
||
|
21
|
21
7556193 Washer-sealing,fuel pump |
7556193 |
US $29.54 |
||
|
22
|
22
7556192 Washer-fuel pump |
7556192 |
US $2.45 |
||
|
23
|
23
7547186 Nut-fuel pump |
7547186 |
US $3.26 |
||
|
24
|
24
5435764 Line-water drain |
5435764 |
US $65.99 |
||
|
25
|
25
5437376
Line-fuel vent,low perm
|
5437376 |
— | ||
|
26
|
26
2520322
Asm-fuel line,filter,internal
|
2520322 |
— | ||
|
27
|
27
7081151 Clamp-hose,9-14 mm clamp dia |
7081151 |
US $5.22 |
||
|
28
|
28
5413235
Line-fuel,tank to fuel rail
|
5413235 |
— | ||
|
29
|
29
5435771 Line-water/fuel to ground |
5435771 |
US $67.34 |
