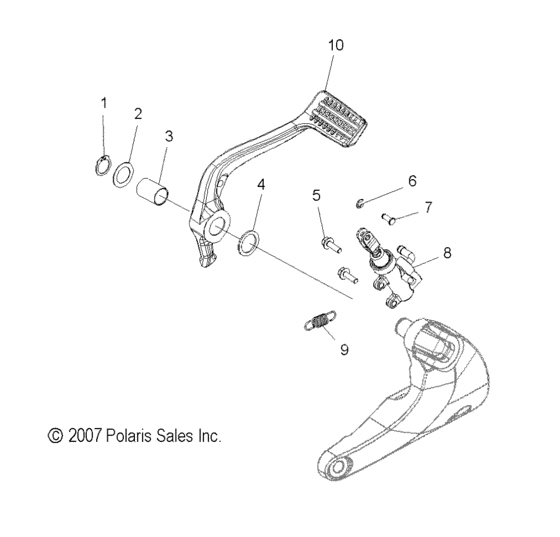

Brakes, brake pedal and rear master cylinder (V11HA36/HB36/HS36 ALL OPTIONS) Diagram Polaris HAMMER ALL OPTIONS
- Year
- 2011
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7710499 Ring,rtng,ext,14,7x1 |
7710499 |
US $4.73 |
||
|
2
|
2
7556075 Wshr-shim,25,4x,46x16,7 |
7556075 |
US $8.42 |
||
|
3
|
3
3514490 Bushing-pedal,foot |
3514490 |
US $5.29 |
||
|
4
|
4
7556273 Washer-wave,m19 (10) |
7556273 |
US $3.75 |
||
|
5
|
5
7518141 Scr-hxflghd,m6x20,zpc |
7518141 |
US $12.79 |
||
|
6
|
6
7710568 E-clip-m5,ss,0600101 |
7710568 |
US $5.25 |
||
|
7
|
7
7661873 Pin-clevis,m6x15,e-clip |
7661873 |
US $29.54 |
||
|
8
|
8
1911094-266 M/cyl-pedal,12,7mm,40mm,blk |
1911094-266 |
US $167.35 |
||
|
9
|
9
7042186 Spring-extension,brake,return |
7042186 |
US $14.16 |
||
|
10
|
10
5135730-266 Pedal-brake lever,mach,blk |
5135730-266 |
US $140.61 |
||
|
10
|
10
5135730-385 Pedal-brake lever,mach,sil |
5135730-385 |
US $140.61 |
||
|
10
|
10
5135730-463 Pedal-brake lever,mach,fblk |
5135730-463 |
US $140.61 |
