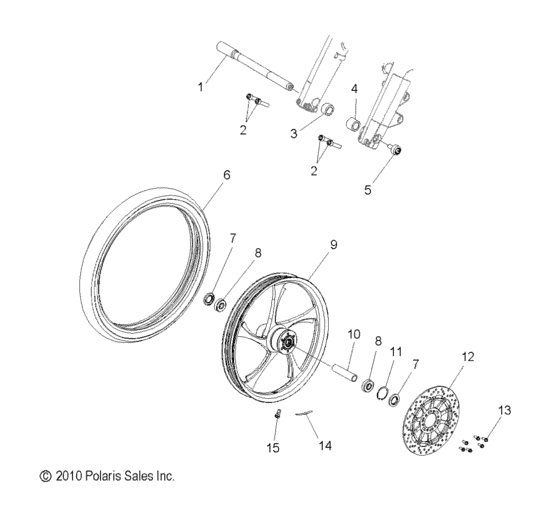

Wheels, front (V11XB36 ALL OPTIONS) Diagram Polaris JACKPOT ALL OPTIONS
- Year
- 2011
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5137438 Axle-front |
5137438 |
US $202.86 |
||
|
2
|
2
7517517 Screw |
7517517 |
US $5.95 |
||
|
3
|
3
5631479 Spacer-brg,rr wheel,lh,pm |
5631479 |
US $2.98 |
||
|
4
|
4
5631481 Spacer-brg,frt wheel,left,pm |
5631481 |
US $3.75 |
||
|
5
|
5
7517936
Scr-m10 x 1,5 x 20,shcp
|
7517936 |
— | ||
|
6
|
6
5413925 Tire-90/90-21,e3 bias ply |
5413925 |
US $277.78 |
||
|
7
|
7
3610094 Seal-30x52x7 |
3610094 |
US $19.69 |
||
|
8
|
8
3514405 Bearing-ball,20mmx52mmx15mm |
3514405 |
US $54.18 |
||
|
9
|
9
1521032-405 Asm-whl,ft,21x2,15,blt,polIncl. 7,8,10,11,15; |
1521032-405 |
US $2,437.33 |
||
|
10
|
10
5334135 Spacer-brg,frt wheel,midBillet; |
5334135 |
US $17.24 |
||
|
11
|
11
7710526 Ring-rtng,int,52x2,0 |
7710526 |
US $8.66 |
||
|
12
|
12
1911624-266 Rotor,brake,5mm,blk |
1911624-266 |
US $399.81 |
||
|
13
|
13
7518661
Scr-hxflghd,m8x25,rotor bolt
|
7518661 |
— | ||
|
14
|
14
1521681 Weight-steel bal,5,g,slvr(12) |
1521681 |
US $1.28 |
||
|
15
|
15
1520515
Valve, rim
|
1520515 |
— |
