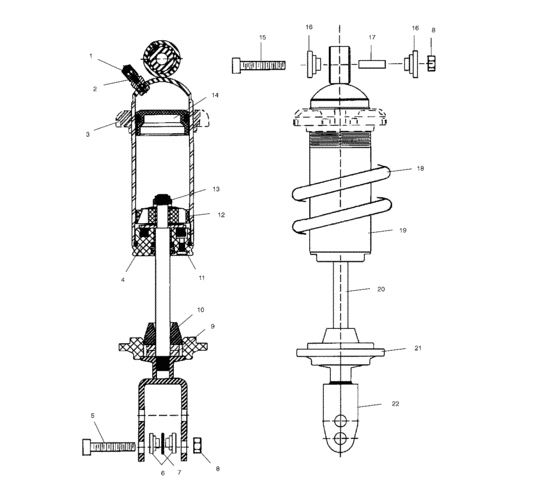

Suspension, shock, rear (V00CS15DC) Diagram Polaris SPORT CRUISER
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1500210
Cap,shrader valve
|
1500210 |
— | ||
|
2
|
2
1500206 Valve-air,complete |
1500206 |
US $17.10 |
||
|
3
|
3
1500207 Ring,spring,preload |
1500207 |
US $15.02 |
||
|
4
|
4
1500294
Bearing-1.83x.95 812-02-003
|
1500294 |
— | ||
|
5
|
5
7517365 Screw,hexhd |
7517365 |
US $2.98 |
||
|
6
|
6
1500173 Reducer |
1500173 |
US $56.14 |
||
| replacement | |||||
|
6
|
6
1500092
Reducer,(fox),(sp)
|
1500092 |
— | ||
|
7
|
7
1500093 O-ring,(fox),sp |
1500093 |
US $4.94 |
||
|
8
|
8
7547122 Nut |
7547122 |
US $4.32 |
||
|
9
|
9
1500074 Bumper,rubber |
1500074 |
US $3.26 |
||
|
10
|
10
1500066
Bumper
|
1500066 |
— | ||
|
11
|
11
1500295 Screw-#10-24x,375 800-10-000 |
1500295 |
US $13.37 |
||
|
12
|
12
1500230 Bearing,external |
1500230 |
US $34.49 |
||
|
13
|
13
1500016 Nut,lock |
1500016 |
US $13.09 |
||
|
14
|
14
1500211 Piston-floating,2" |
1500211 |
US $59.55 |
||
|
15
|
15
7517364
Screw
|
7517364 |
— | ||
| replacement | |||||
|
15
|
15
7517962 Scr-hexhd,m10x80 |
7517962 |
US $9.85 |
||
|
16
|
16
1500103 Bsg-eyelet |
1500103 |
US $10.03 |
||
|
17
|
17
1500274
Sleeve-.4x.83x1.26 213-11-002
|
1500274 |
— | ||
|
18
|
18
7041913
Spring,sc<039-08-044a
|
7041913 |
— | ||
| replacement | |||||
|
18
|
18
7041759
Spring-shock,v92c,460 lbs
|
7041759 |
— | ||
|
19
|
19
1500292
Body
|
1500292 |
— | ||
|
20
|
20
1500293
Shaft-.498x6.02 229-03-008
|
1500293 |
— | ||
|
21
|
21
1500178 Retainer-spring,v92c |
1500178 |
US $87.94 |
||
|
22
|
22
1500305
Eyelet-clevis 808-16-003
|
1500305 |
— | ||
