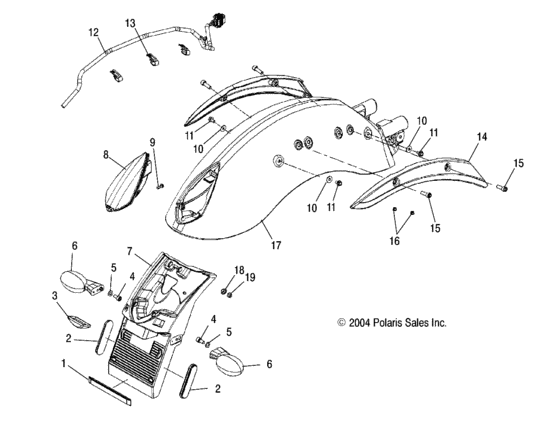

Body, rear fender and taillight (V05AB16/EC16/GB16ALL OPTIONS) Diagram Polaris VICTORY VEGAS ALL OPTIONS
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2670070 Reflector red |
2670070 |
US $12.22 |
||
|
2
|
2
5434624 Reflector-red,oval |
5434624 |
US $30.10 |
||
|
3
|
3
5132233 Hsng,licplate light,sc |
5132233 |
US $22.45 |
||
|
4
|
4
7517305 Screw,sochd,m6x20 |
7517305 |
US $3.24 |
||
|
5
|
5
7556064
Washer
|
7556064 |
— | ||
|
6
|
6
2410439 Signal-inc,rear,lh |
2410439 |
US $54.15 |
||
|
6
|
6
2410440 Signal-inc,rear,rh |
2410440 |
US $54.15 |
||
|
6
|
6
4010742 Bulb-single filament,10w |
4010742 |
US $8.51 |
||
|
7
|
7
5435514
Brkt-lp,cc,nylon 6
|
5435514 |
— | ||
|
8
|
8
2410470
Taillight-led
|
2410470 |
— | ||
|
9
|
9
7518275 Scr-plastite 48-2 |
7518275 |
US $1.49 |
||
|
10
|
10
7556064
Washer
|
7556064 |
— | ||
|
11
|
11
7517704
Screw
|
7517704 |
— | ||
|
12
|
12
2410473
Harness-rear wire,with ac
|
2410473 |
— | ||
|
13
|
13
7080737 Clip,electrical |
7080737 |
US $2.98 |
||
|
14
|
14
5631635-156
Cover, rail, lh
|
5631635-156 |
— | ||
|
14
|
14
5631636-156
Cover, rail, rh
|
5631636-156 |
— | ||
|
14
|
14
5631635-266
Cover, frame, rail, lh, black
|
5631635-266 |
— | ||
|
14
|
14
5631636-266
Cover, frame, rail, rh, black
|
5631636-266 |
— | ||
|
15
|
15
7518084 Scr-sochd,m8x25 |
7518084 |
US $5.22 |
||
|
16
|
16
7671178 Plug-fender, rear |
7671178 |
US $2.17 |
||
|
17
|
17
1014064-388
Weld-fender,rear,cc,yel
|
1014064-388 |
— | ||
|
17
|
17
1014064-1179
Fender,rear
|
1014064-1179 |
— | ||
|
17
|
17
1014064-1187
Fender,rear,pwh/slv
|
1014064-1187 |
— | ||
|
17
|
17
1014064-1188
Fender,rear,ired tri-fade fl
|
1014064-1188 |
— | ||
|
17
|
17
1014064-1189
Fender,rear,blk tribal fade
|
1014064-1189 |
— | ||
|
17
|
17
1014064-1200
Fender,rear blk/blu
|
1014064-1200 |
— | ||
|
17
|
17
1014064-266 Weld-fender,rear,cc,blk |
1014064-266 |
US $806.51 |
||
|
17
|
17
1014064-341
Fender,rear,cc,blu **
|
1014064-341 |
— | ||
|
17
|
17
1014064-342
Fender,rear,cc,red **
|
1014064-342 |
— | ||
|
18
|
18
5134082
Sleeve-shouldered,m6
|
5134082 |
— | ||
|
19
|
19
7710495
Nut
|
7710495 |
— |
