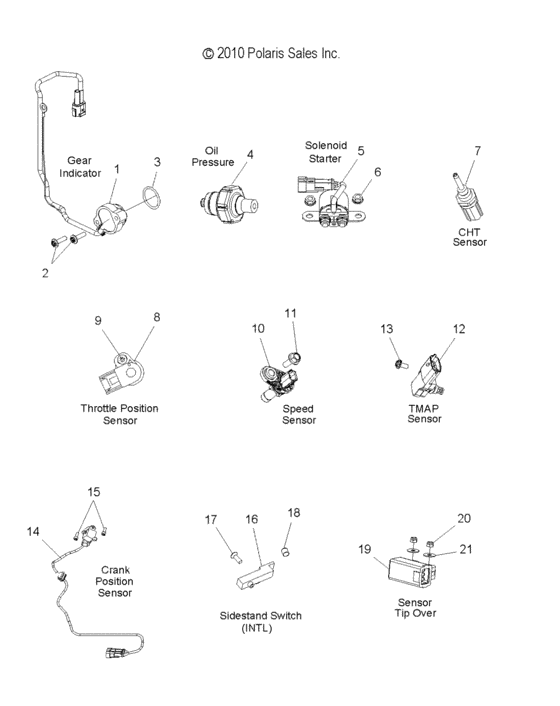

Electrical, switches, sensors and components 1 (V11SW36/SA36/AW36 ALL OPTIONS) Diagram Polaris VISION ALL OPTIONS
- Year
- 2011
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4010976
Switch-gear indicator,n,o/d
|
4010976 |
— | ||
|
2
|
2
7519076 Scr-hxfl,m5x0,8x20 4,8 zpc d20 |
7519076 |
US $2.45 |
||
|
3
|
3
5412530 O-ring-26,65x2,62,0600083 |
5412530 |
US $6.60 |
||
|
4
|
4
4012668 Switch-oil pressure |
4012668 |
US $29.54 |
||
|
5
|
5
4012001 Solenoid-starter-c1100 |
4012001 |
US $118.11 |
||
| replacement | |||||
|
5
|
5
4014471 Solenoid-starter,c1100,w/wshr |
4014471 |
US $118.11 |
||
|
6
|
6
7547270
Nut-hxflghd,m6,serrated
|
7547270 |
— | ||
|
7
|
7
4012971
Sensor-cht
|
4012971 |
— | ||
| replacement | |||||
|
7
|
7
4014970 SENSOR-CHT |
4014970 |
US $42.75 |
||
|
8
|
8
4012101
Sensor, throttle position
|
4012101 |
— | ||
|
9
|
9
7518901 Scr-tps |
7518901 |
US $2.98 |
||
|
10
|
10
4011884 Sensor-vehicle speed |
4011884 |
US $127.05 |
||
|
11
|
11
7517750 Scr,hxflghd,m6x20 |
7517750 |
US $7.68 |
||
|
12
|
12
2410422 Sensor-t map |
2410422 |
US $93.52 |
||
| replacement | |||||
|
12
|
12
2411528 Sensor-tmap dss3-tf |
2411528 |
US $115.45 |
||
|
13
|
13
7518338 Scr-flange,hd,m5x12,06000086 |
7518338 |
US $4.53 |
||
|
14
|
14
4012280 Sensor-crank position,emshield |
4012280 |
US $103.97 |
||
|
15
|
15
7518045 Scr-m5x,80x8-hx/fl-y/d |
7518045 |
US $8.66 |
||
|
16
|
16
4013130 Switch-side stand |
4013130 |
US $39.38 |
||
|
17
|
17
7519276 Scr-flhd-m4x0.7x12mm,torx |
7519276 |
US $2.45 |
||
|
18
|
18
4013131 Magnet-side stand |
4013131 |
US $4.73 |
||
|
19
|
19
4011296 Sensor-tip over,45 degree |
4011296 |
US $85.77 |
||
|
20
|
20
7547126 Nut (10) |
7547126 |
US $1.89 |
||
|
21
|
21
7556477
Wshr-fl,4,3x14x0,8,0600090
|
7556477 |
— | ||
