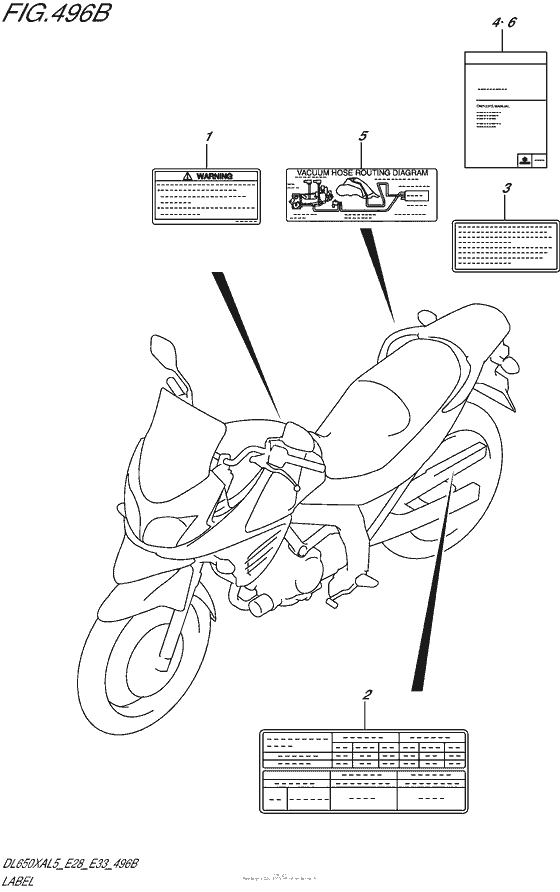

Label (Dl650Xal5 E33) Diagram Suzuki DL650 V-Strom
- Year
- 2015
- Model code
- DL650XAL5 (2015)
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- DL650 (ABS)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68319-49J00-000
LABEL,GENERAL WARNING
|
68319-49J00-000 |
— | ||
| replacement | |||||
|
1
|
1
68319-49J01-000 Label,general Warning |
68319-49J01-000 |
from US $2.72 |
||
|
2
|
2
68332-11JA0-000
LABEL,TIRE INFORMATION
|
68332-11JA0-000 |
— | ||
| replacement | |||||
|
2
|
2
68332-11JA1-000 Label,tire Information |
68332-11JA1-000 |
US $9.74 |
||
|
3
|
3
68353-26E02-000
LABEL, OWNERs MANUAL NOTICE
|
68353-26E02-000 |
— | ||
| replacement | |||||
|
3
|
3
68353-26E03-000 Label,manual Notice |
68353-26E03-000 |
from US $3.80 |
||
|
4
|
4
99011-11J63-03A MANUAL,OWNER'S DL650AL5 |
99011-11J63-03A |
from US $15.46 |
||
|
5
|
5
68387-11J10-000 LABEL,VACUUM HOSE ROUTING |
68387-11J10-000 |
from US $6.51 |
||
|
6
|
6
99016-11J73-03A MANUAL,SUPPLEMENT |
99016-11J73-03A |
US $9.72 |
||
